Hardware Installation

16

Note

If you have configured your chassis with both AT-3600 Series modules and
TurboStack modules, you will need to refer to the AT-3600 Series Hub/
Repeaters and AT-S4 Firmware Module Network Operations Manual.
The
AT-S10 software will not run on a chassis configuration that includes both
AT-3600 and TurboStack modules. See your ATI sales representative for
further details.

Attention

If a fault light illuminates and/or the port activity (link) LEDs on the
Master module illuminate when you first power up a hub, there may be a
problem with the unit. The recommended sequence of corrective steps is as
follows: 1) turn off the power and power up a second time; 2) insert a
firmware cassette in the back-panel port of the unit; 3) initiate a Return
Material Authorization (RMA) to ATI.

For a detailed explanation of ATI’s TurboStack chassis offerings, refer to
the TurboStack™ Chassis and Backplane Installation Manual, available
through your local ATI sales representative.

TurboStack Port Configurations

Network Ports

TurboStack hub models feature a variety of port counts and support a
variety of media, including:

Fiber optic (10BASE-FL), using SM, SC or ST connectors

Thinnet (10BASE2), using BNC connectors

UTP/STP (10BASE-T), using Telco RJ21 or RJ45 connectors

Thick Ethernet (10BASE5), using the AUI connector

RS232 Terminal Port

Every TurboStack hub with management capability includes an RS232
Terminal Port on the faceplate. (See Figure 10.)

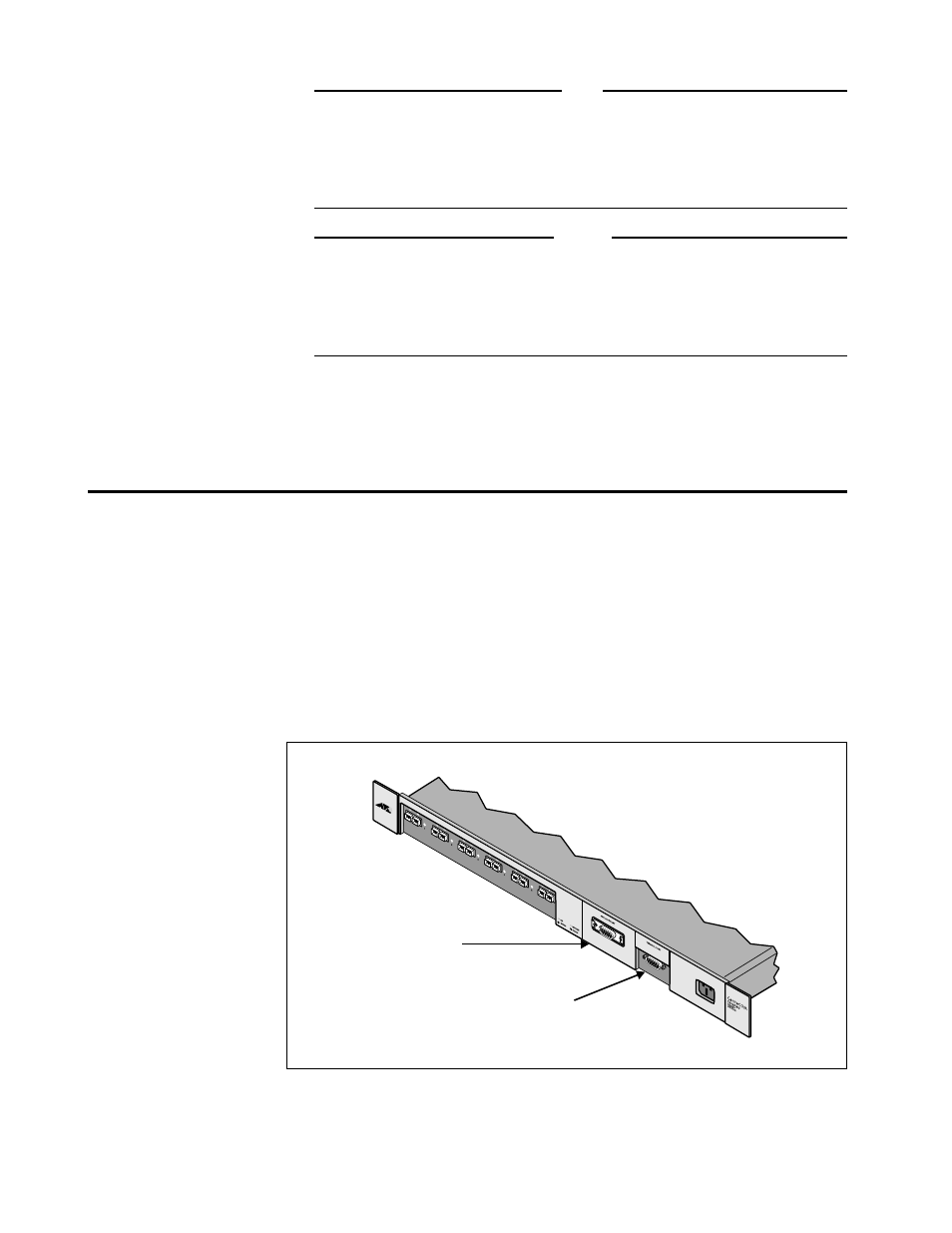

Figure 10: RS232 Terminal

Port

RS232 port

Appliqué port
(configured as AUI)
