At the top of the window is a graphical imagge of the switch that you are
currently managing. (The display will not include any optional expansion
modules that might be installed in the unit.)
You can click on different areas of the image to display different Omega
windows. Clicking on a port displays the configuration window for that
port, which you use to set the port parameters. Clicking on the RS232
port displays the configuration window for the terminal port. Finally,
clicking on the switch chassis displays a window that lists the status of
the ports on the switch.
Omega Main
Menu Window
The Main Menu window contains the Omega menus. This window is
displayed in a reduced format when you first start an Omega session
from a web browser. To enlarge it, click on the window. Figure 4 is an
example of the Omega Main Menu.

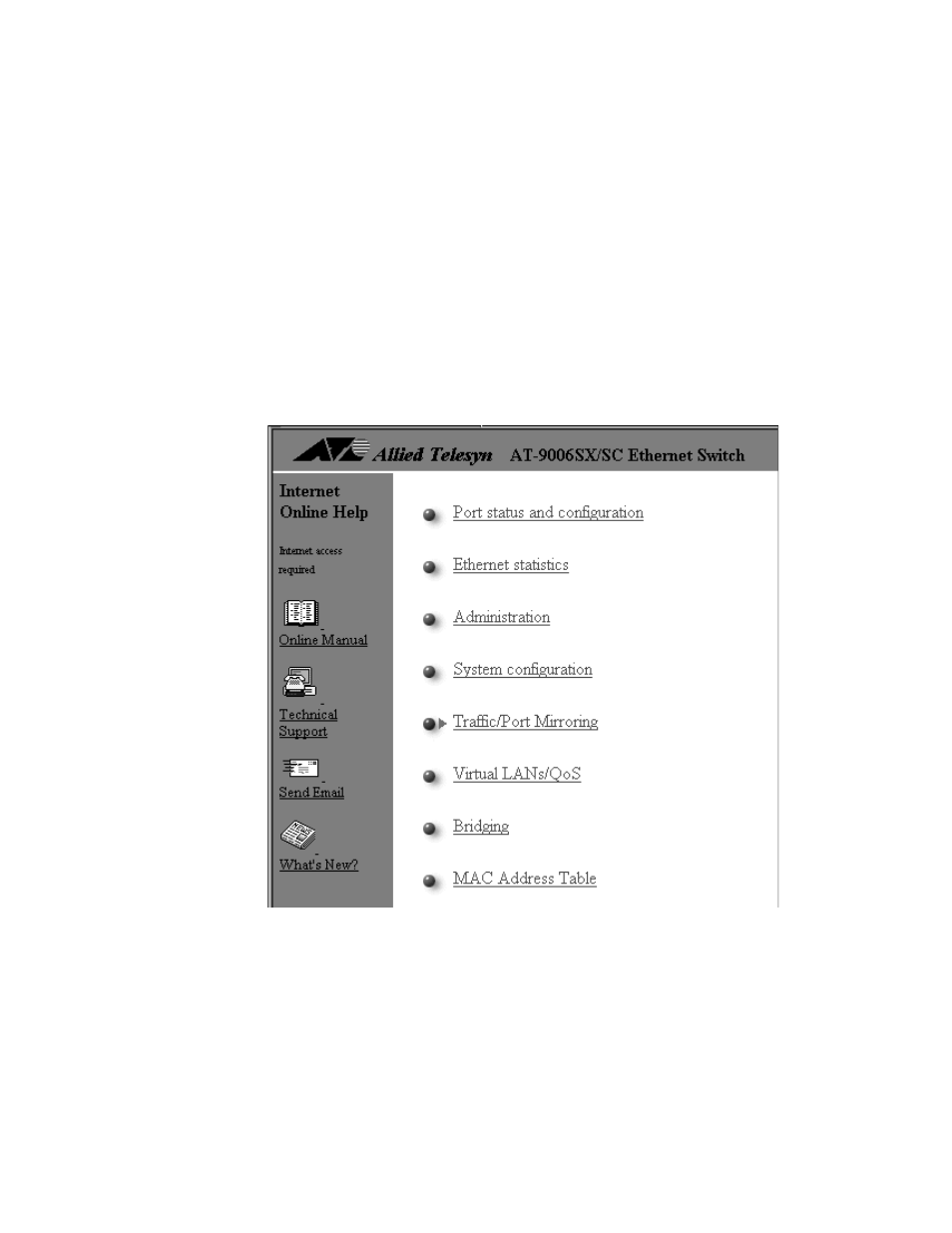

Figure 4 Omega Main Menu from a Web Browser
