Allied Telesyn AT-VIEW PLUS
DEVICE MANAGEMENT
The AT-8326GB supports up to 6 AT-8326GB stacked switches or any of the following mixed stack
combinations of AT-8326GB and AT-8350GB switches:
• Two AT-8326GB switches and one AT-8350GB switch
• Two AT-8326GB switches and two AT-8350GB switches
• Three AT-8326GB switches and one AT-8350GB switch
• Four AT-8326GB switches and one AT-8350GB switch
Note - When 3 or more AT-8326GB devices are stacked together, expect the twisted pair port image
of Port 26 on the last device on the stack to turn green. This is because the current firmware version
returns 'on-line' for the Port Link State parameter of the port even if there is no link established.

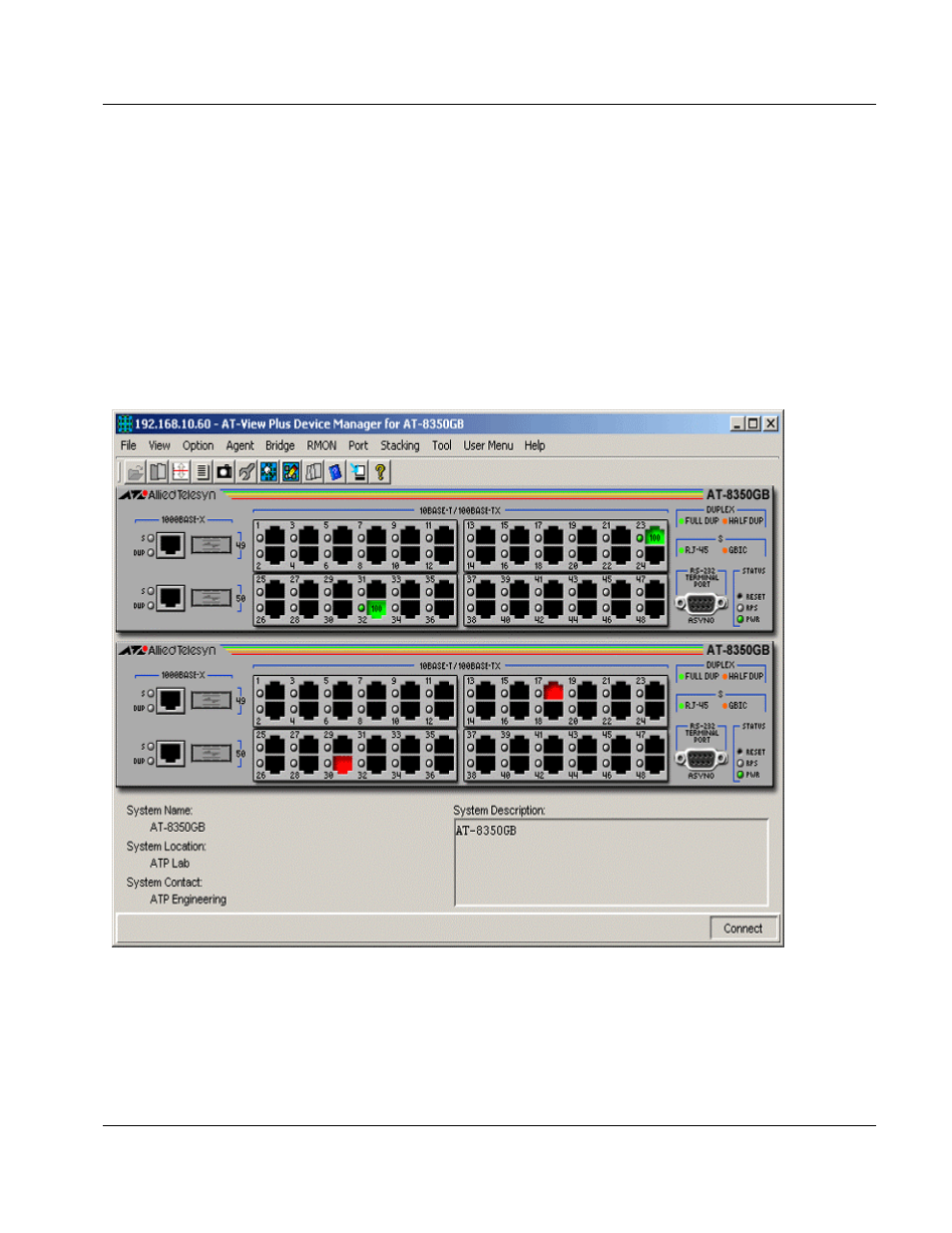

AT-8350GB
The AT-8350GB supports up to 3 stacked AT-8350GB switches.
Note - The current firmware version does not allow AT-View Plus Device Manager to support the
RPS LED.
PN 613-50665 Rev A Page 59 of 257
