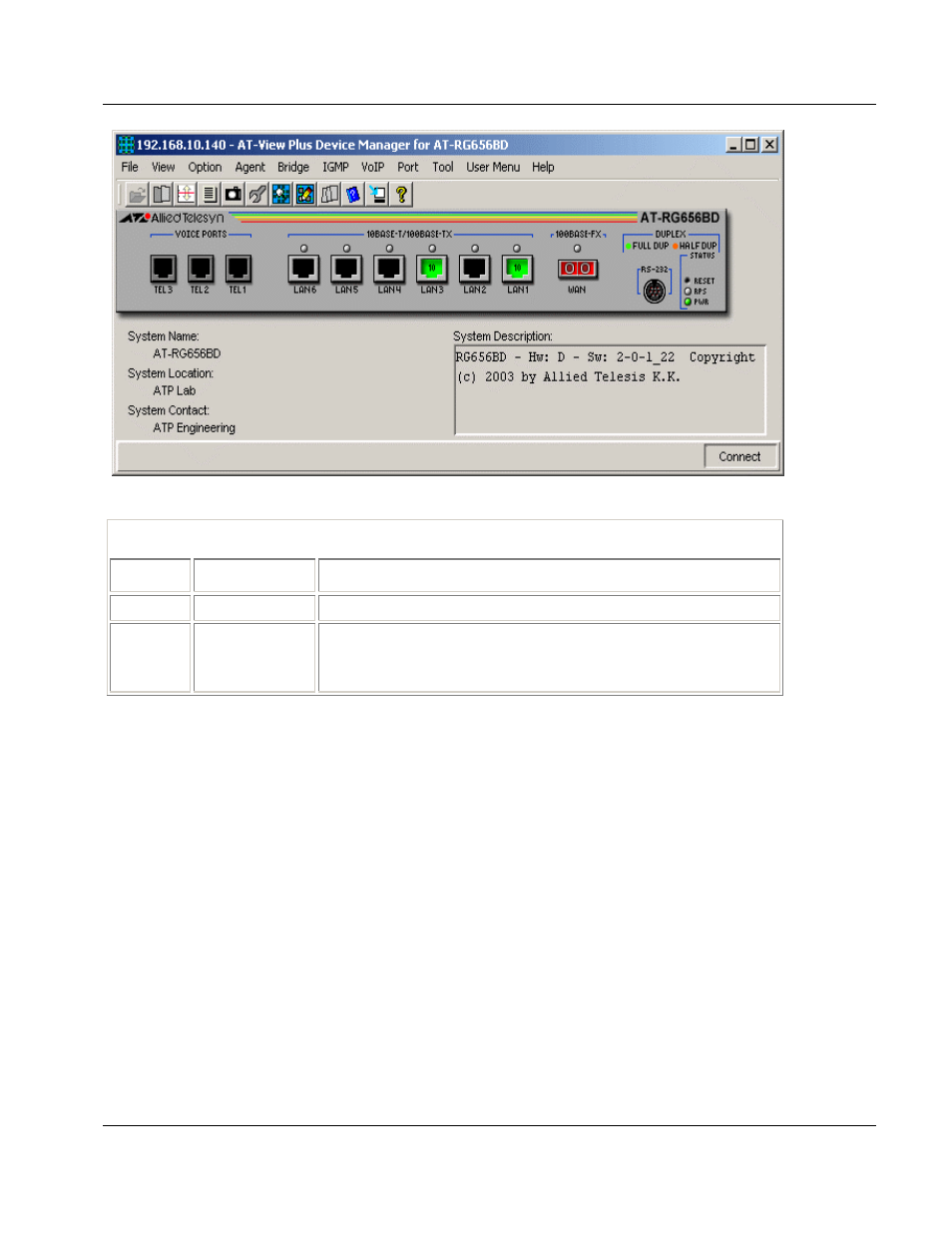

Device Manager LEDs for AT-RG600 Series
LED State Description
Green The residential gateway is receiving power.
DUPLEX Green
Orange
The port is operating in full-duplex mode.
The port is operating in half-duplex mode.
PWR
Note - The current firmware version does not allow AT-View Plus Device Manager to determine the
negotiated mode for active LAN or WAN ports that are configured to auto-negotiate. As a result, the
Duplex LED will turn gray.
Note - AT-RG613xx : When link is established on a LAN or WAN port that is configured to auto-
negotiate, the current firmware version returns 'No such instance' for the Speed parameter under the
Standard sub-menu option. As a result, no speed is displayed on the RJ-45 LAN or WAN port
images.
Note - AT-RG634A : The Port Link State parameter may sometimes return the value "up" during the
refresh process. As a result, even inactive ports may turn green.
Note - AT-RG656BD : The current firmware version does not allow AT-View Plus Device Manager
to support the RPS LED when using SNMPv1 and SNMPv2c.
Note - AT-RG656BD: The current firmware version does not allow AT-View Plus Device Manager
to support the Reset button when using SNMPv1 and SNMPv2c.
