Allied Telesyn
AT-VIEW PLUS
DEVICE MANAGEMENT
Rapier 24i

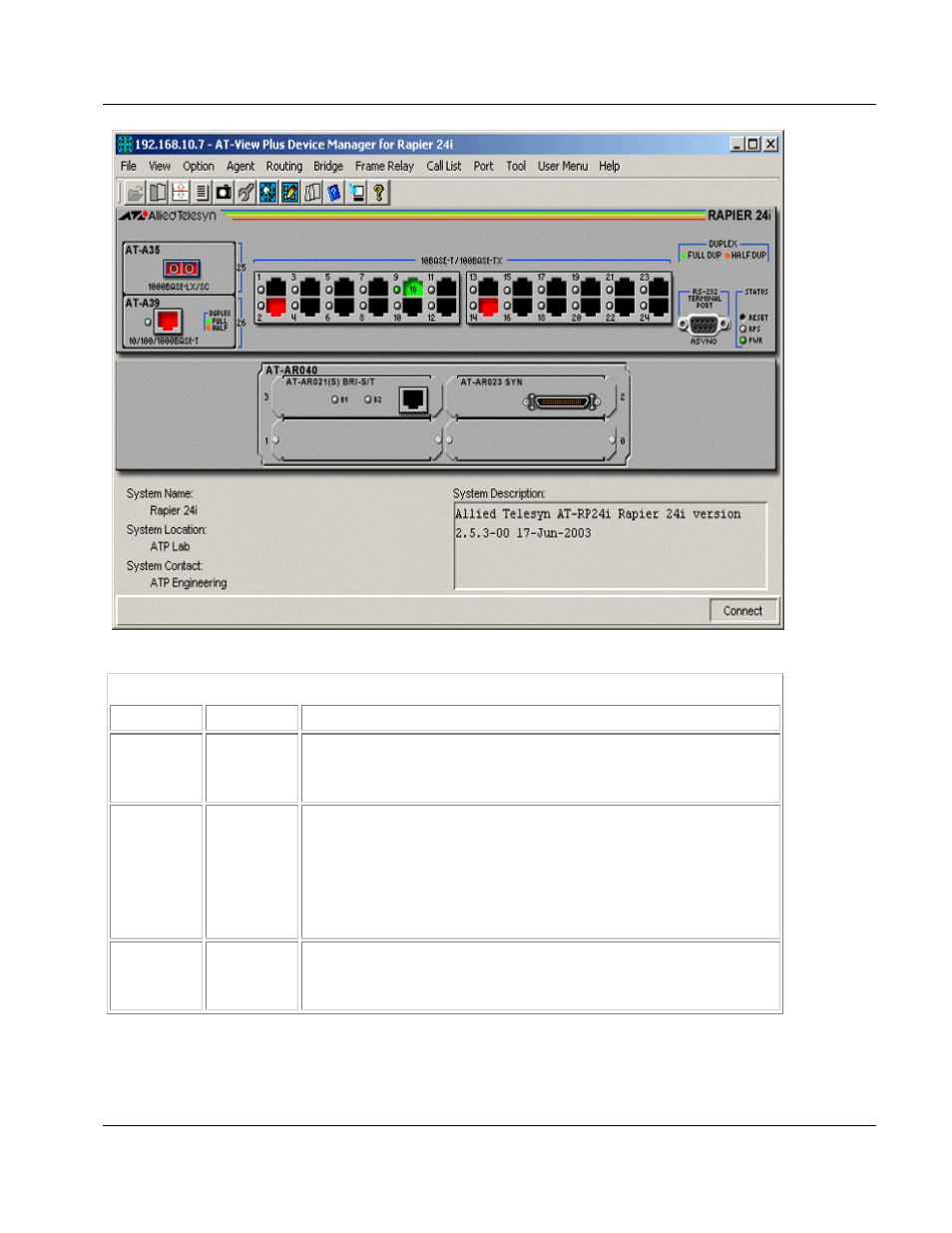

Device Manager LEDs for Rapier 24 and 24i
LED
State
Description
Green
Red
Main power supply is either off or has failed.
Green
Red
The switch is receiving power from the redundant power
supply.
RPS has failed.
RPS is not installed or RPS monitoring is disabled.
DUPLEX Green
Orange
PWR
The switch is receiving power from the main power supply.
RPS
Gray
The port is operating at full duplex.
The port is operating at half duplex.
Note
- The current firmware version does not allow AT-View Plus Device Manager to support the
Reset button.
PN 613-50665 Rev A
Page 165 of 257
