AlliedView™-EMS 3.10 Device Manager User’s Guide Page 83 of 133
Start snapshot

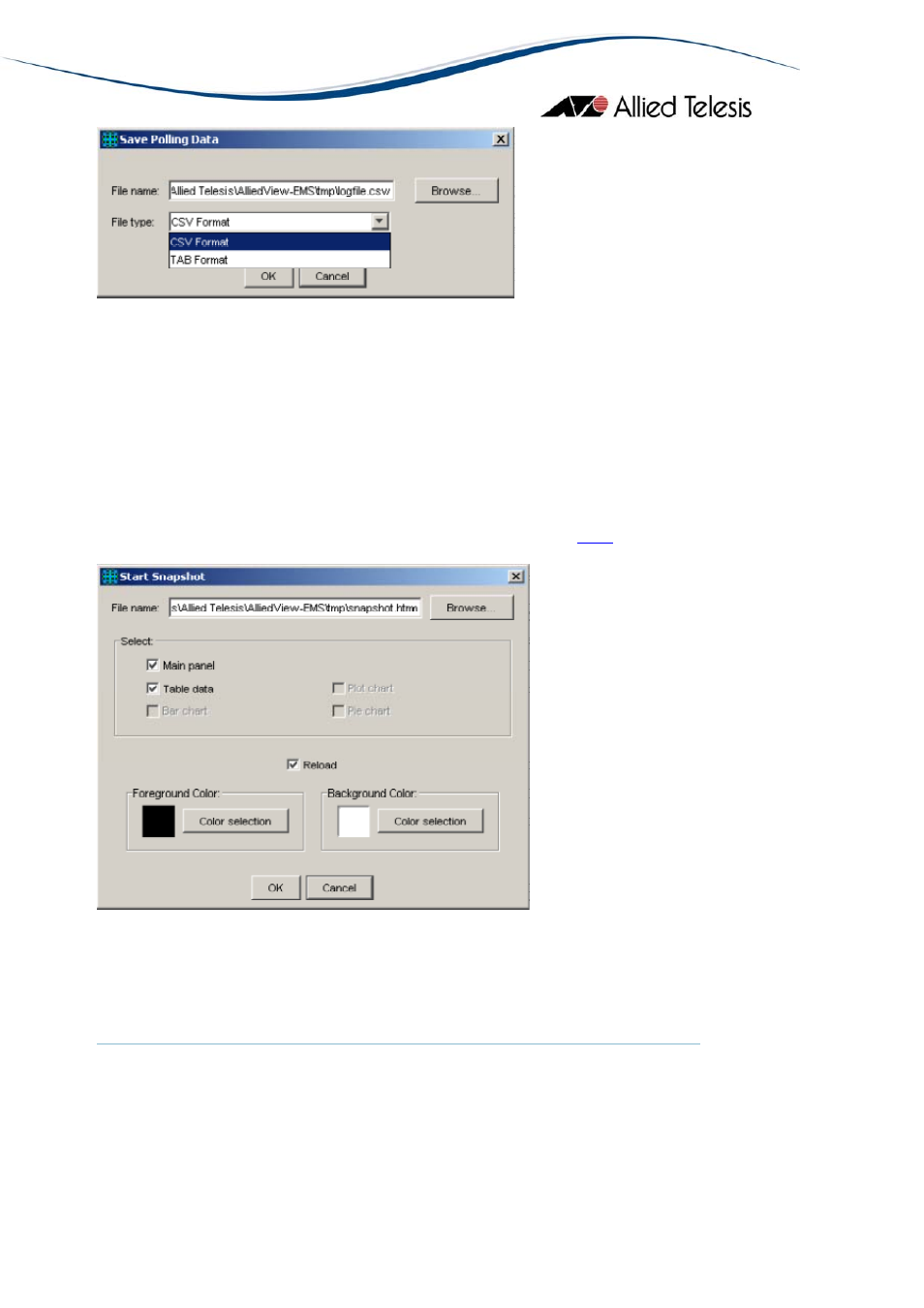

Save polling data
6.5.5 Start Snapshot
Clicking this button opens the Start Snapshot window. Use this window to save
the information displayed in the front panel, as well as tables or charts
representing device information. Use the 'Browse' button to select the
directory or folder where you want to save the image.
Note - You can generate an image of the main panel, table data, or charts. The
type of image or device information that you can generate depends on which
menu you opened the Start Snapshot window from. For more information on
the file types created in the Start Snapshot window, see section
5.2.6 .
Below is a snapshot from the MIB Variable window, with the main panel and
table data both marked in the Start Snapshot window:
