AlliedView™-EMS 3.10 Device Manager User’s Guide Page 43 of 133

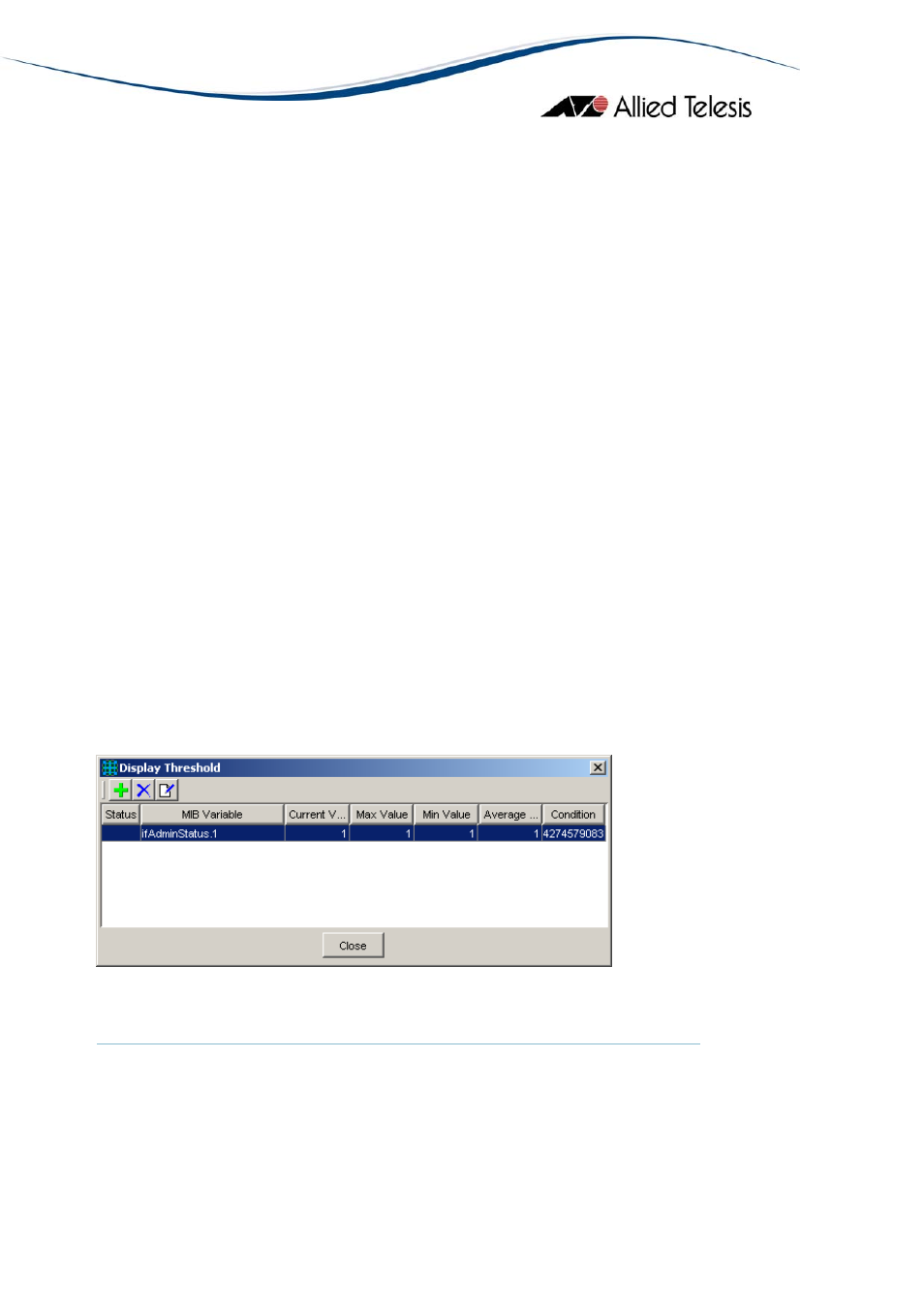

Display Threshold
5.2.3 System Info
Toggles display of system information, namely, System Name, System Location,
System Contact, and System Description.
5.2.4 Threshold
Displays a list of the configured thresholds. You can also create new thresholds
or change the existing thresholds.
The table has the following fields:
• Status - Indicates the status of the MIB variable that Device Manager is
monitoring.
• MIB Variable - Name of the MIB variable that Device Manager is
monitoring.
• Current Value - Current value of the variable.
• Max Value - Highest value of the variable after Device Manager starts
monitoring.
• Min Value - Lowest value of the variable after Device Manager starts
monitoring.
• Average Value - Average value of the variable (per second) after Device
Manager starts monitoring.
• Condition - Threshold configured on the variable. If the variable's value
exceeds the threshold, an action is executed. You can configure the type
of action to execute in the User Action tab of the Option menu.
Note - Current, Max, Min and Average values are zero before the first polling.
After the first polling, they all have the same value. Once the threshold is
reached, the corresponding row is highlighted with a red background. Note that
thresholds can only be set for MIB variables of type GAUGE, INTEGER,
COUNTER, GAUGE32, INTEGER32, COUNTER32, or COUNTER64.
