Add button (Green 'plus' icon)
Adds a new threshold definition.
Remove button (Blue 'X' icon)
Removes the selected threshold.
Edit button ('note and pen' icon)
Edits the selected threshold.
5.2.5 Current Log
Displays the event log. It records events such as Device Manager start up,
reception of traps, or threshold events.

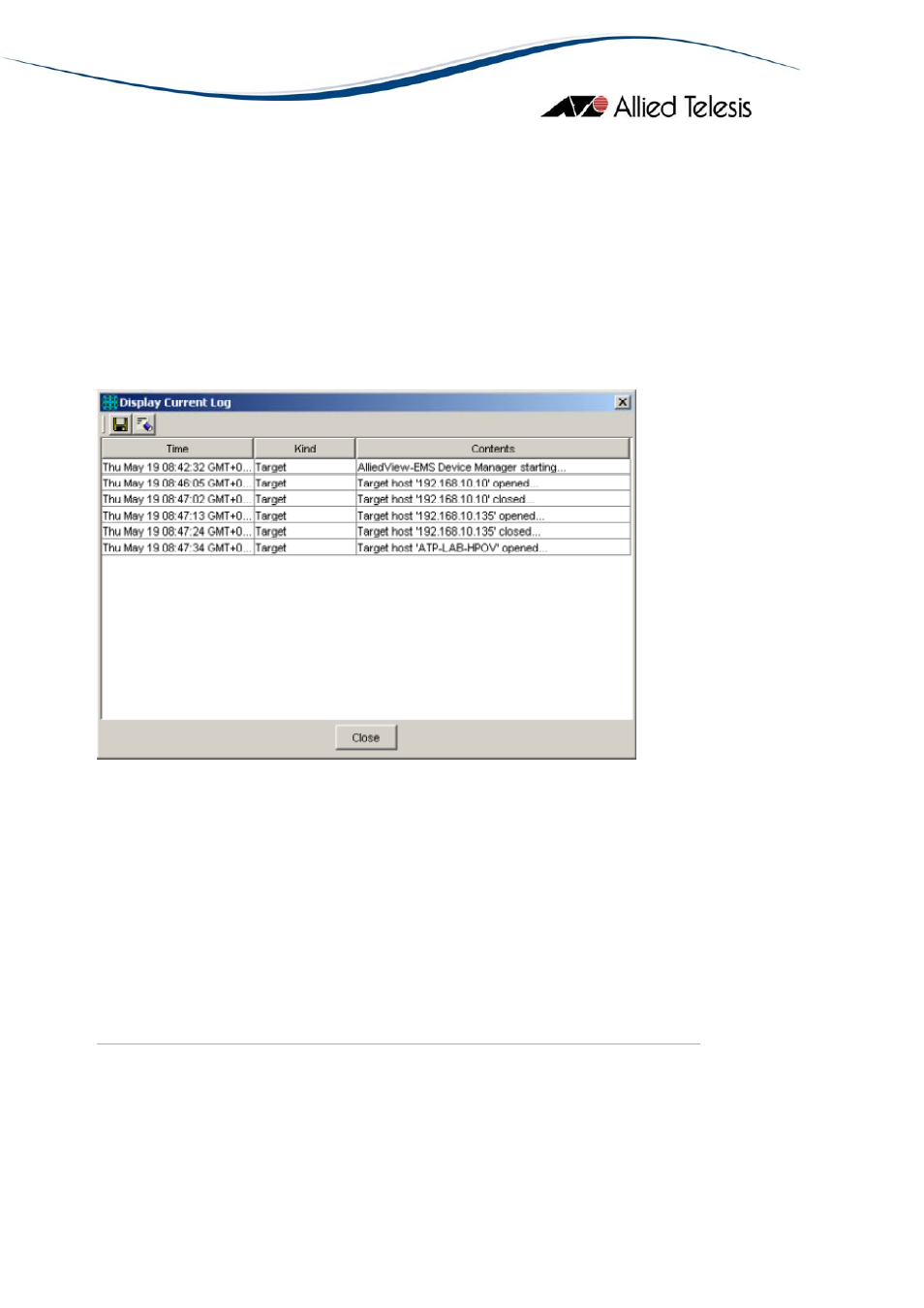

Display Current Log
Save As ('Floppy disk' icon)
Saves the log as a text file. Specify a filename in the Save As dialog box.
Each log entry is saved as one line. Each field in an entry is delimited by a
TAB character.
Clear ('note and eraser' icon)
Clears the log.
Note - If SNMPc, HP OpenView, or Tivoli NetView is running, Device
Manager will not receive any traps. This is because the traps are being
intercepted by the network management application and will never reach
Device Manager.
AlliedView™-EMS 3.10 Device Manager User’s Guide Page 44 of 133
