Bar Chart tab
6.3 Bar Chart Tab

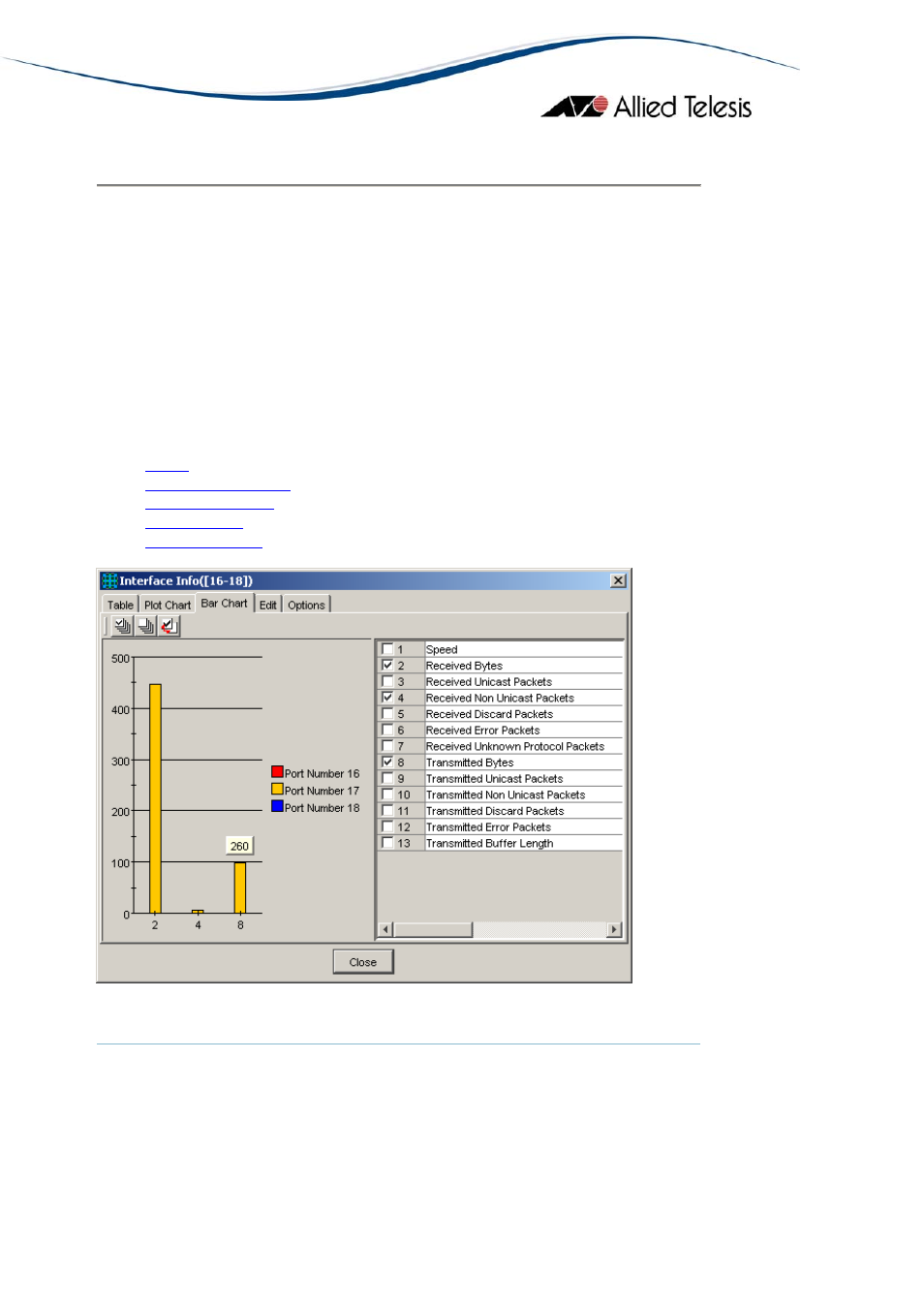

The Bar Chart tab displays variables as a bar chart. To the right of the graph is a
table of the numeric variables which can be displayed in the chart. Only
variables selected in the table are displayed in the chart.
The scale of the vertical axis is automatically adjusted according to values of the
variables displayed. The chart is updated at the polling interval.
Note - The polling interval can be changed in the Options tab.
When you resize the window, the chart is resized accordingly.
Topics:
• Chart
• MIB Variable Table
• Select All Button
• Clear Button
• Reverse Button
