AlliedView™-

Page 37 of 133

EMS 3.10 Device Manager User’s Guide

Settings

If the Version is set to "v1" or "v2c", this button opens the SNMP v1/v2c
Settings window. Otherwise, if the Version is set to "v3", this button
opens the SNMP v3 Settings window.

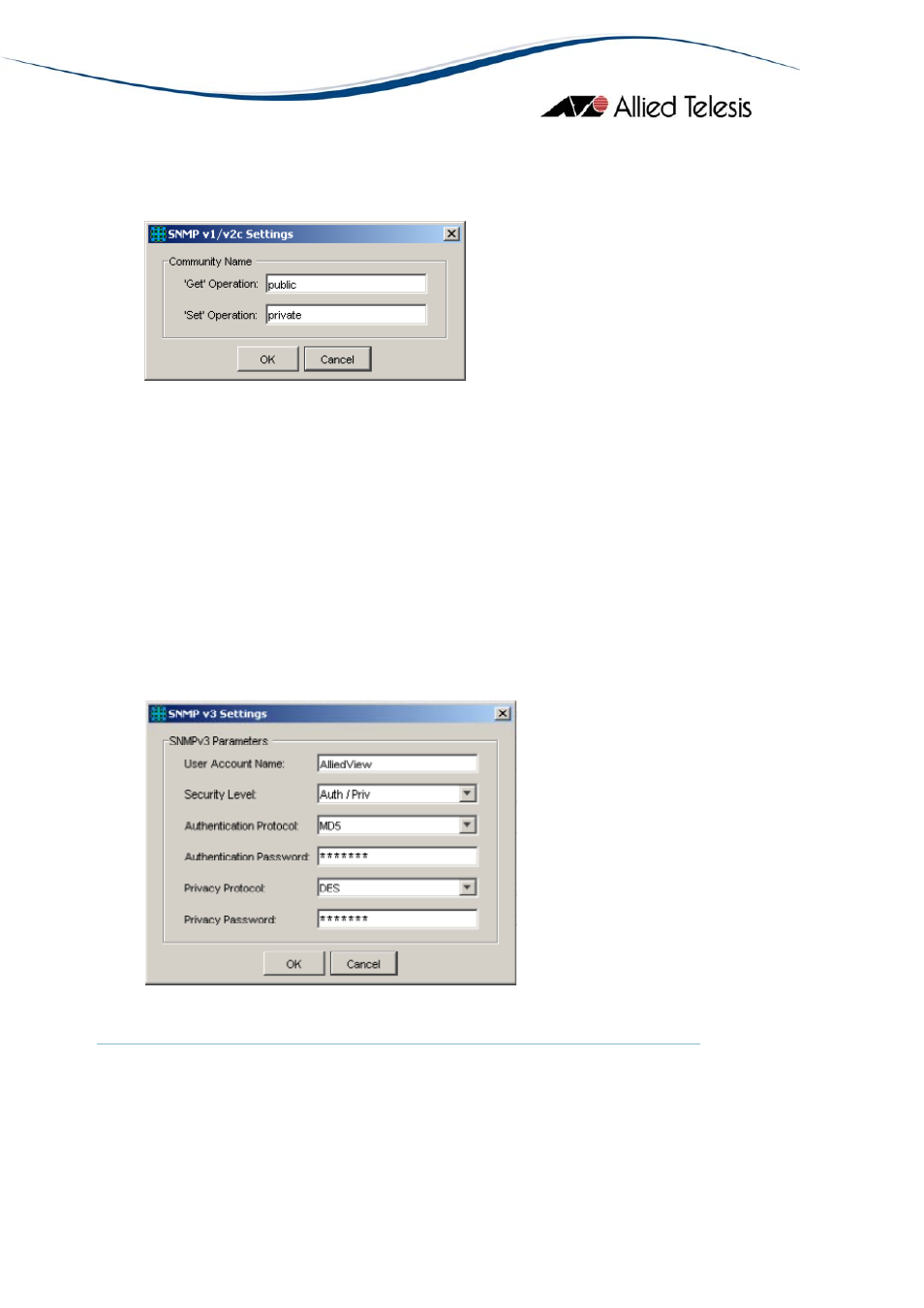

SNMP v1/v2c Settings dialog box

Community name

The community strings to use in performing SNMP operations on the
target host. There are three types of community strings for the SNMP.
Be sure to specify strings which match the ones configured on the target

host.

By default, the following strings are used:

for the Get operation

public

for the Set operation

private

SNMP v3 Settings dialog box
