Page 83: Configuration with two pressure transducers
A
PPENDIX
A __________________________________________________
HARDWARE CONFIGURATIONS
V
AISALA
_________________________________________________________________________ 77
APPENDIX A HARDWARE CONFIGURATIONS
F
IGURE
A-1

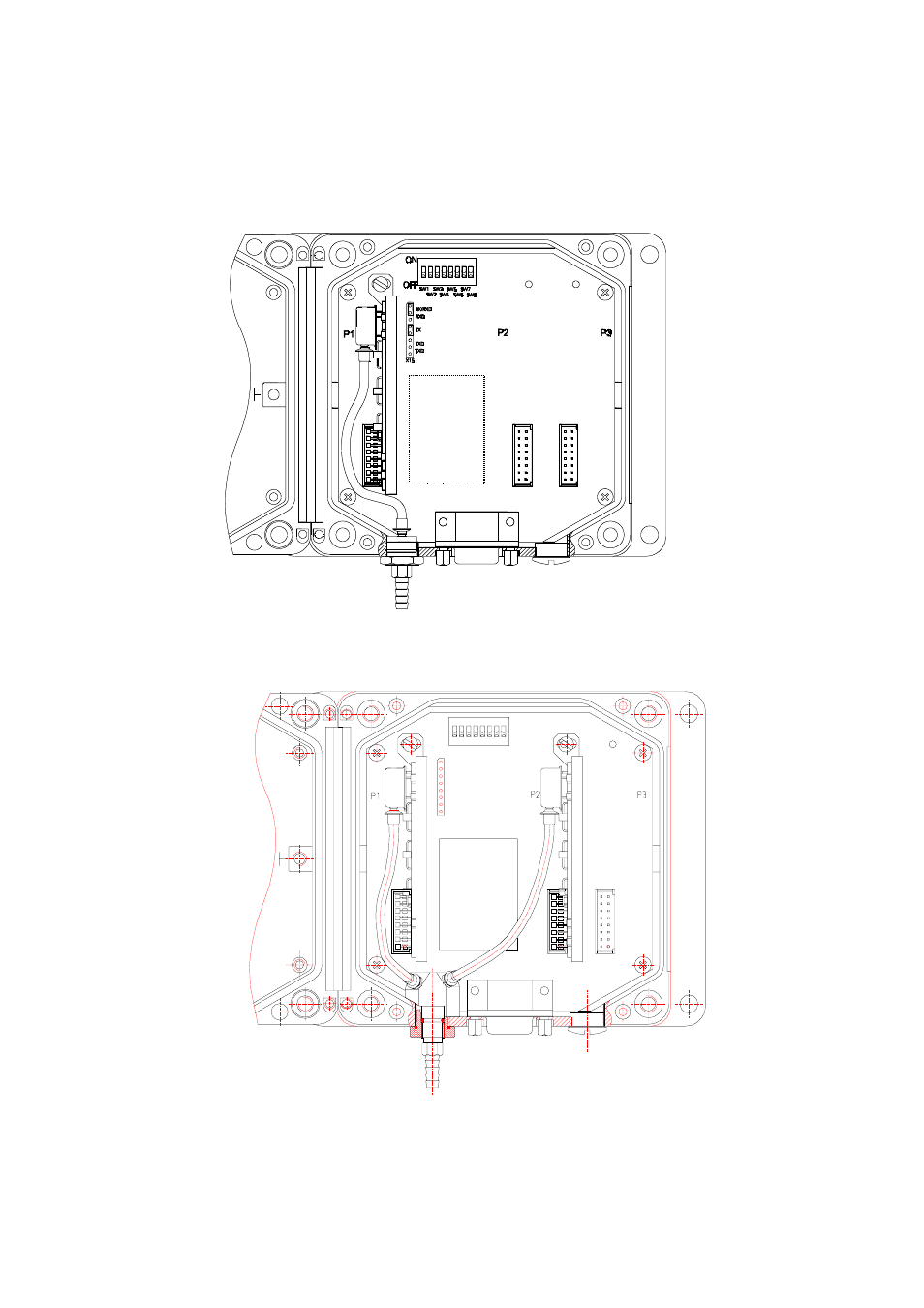

Configuration with one pressure transducer
F
IGURE
A-2
Configuration with two pressure transducers
