Mechanics
Pressure connector M5 (10-32) internal thread
Pressure fitting barbed fitting for 1/8" I.D. tubing
Maximum pressure limit 5000 hPa abs.
Minimum pressure limit 0 hPa
Electrical connector female 9-pin subD-connector
Housing epoxy painted aluminium
Weight 1 kg
Dimensions in mm (inches):
120 (4.72)
25.
6 (
1.
01)
145 (5.71)
133 (5.24)
104 (
4.
09)
120 (
4.
72)
139.
5 (
5.
49
)
65 (2.
56)
6.5 (0.26)

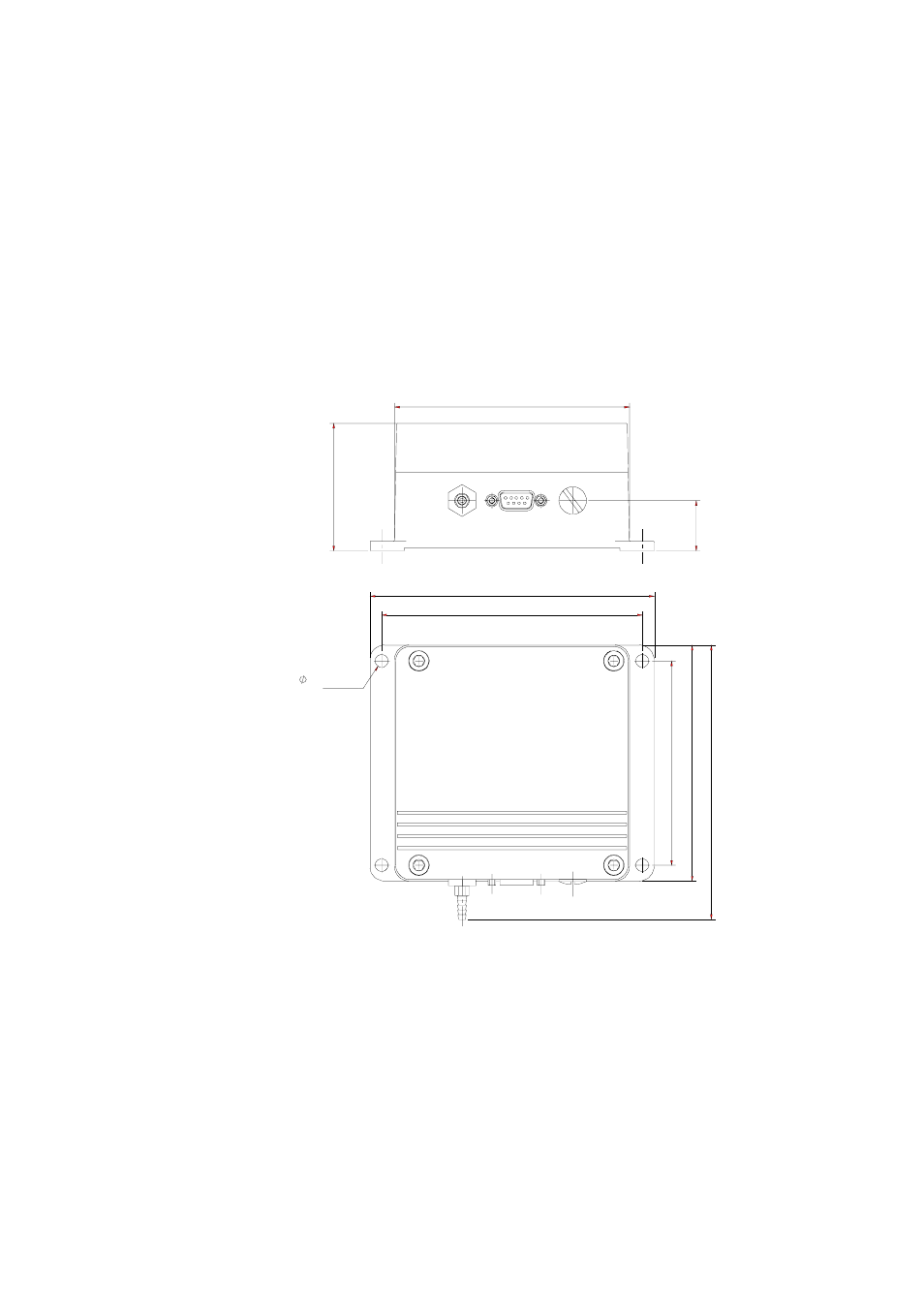

F IGURE 9-1 Dimensions of the PTB220 barometers
Electromagnetic compatibility
The PTB220 series barometers are designed to comply with the CE
norms for electromagnetic compatibility. The condition for this
compliance is the use of braided cables and proper grounding
techniques. The PTB220 barometers have successfully passed the
following emission and immunity test.
