Configuration
33
UDM-0102 and UDM-RX02 Operation/Reference Guide
3.
Enter the Cable distance for the selected source device (in meters). In Basic mode, the system
automatically configures brightness and sharpness in relation to the distance entered in the Cable
distance field.
Video Compensation - Advanced Mode
1.
Select Control from the options at the top of the Status page to access the Control page (see
FIG. 26 on page 25).
2.
Select the Port hyperlink to access the video compensation options (see FIG. 36 on page 32).
3.
Click the Advanced checkbox to enable additional video compensation options. In Advanced mode,
each of the parameters can be adjusted separately;
Bright (Brightness) adjusts the brightness of the image.
Sharp (Sharpness) adjusts the sharpness of the image.
4.
To add skew delay into any of the video colors, click on the appropriate color hyperlink (FIG. 38).
The skew delay cycles through red, green and blue.
Each radio button is equivalent to 2ns delay.
Fine tuning can be achieved by varying the distance entered.

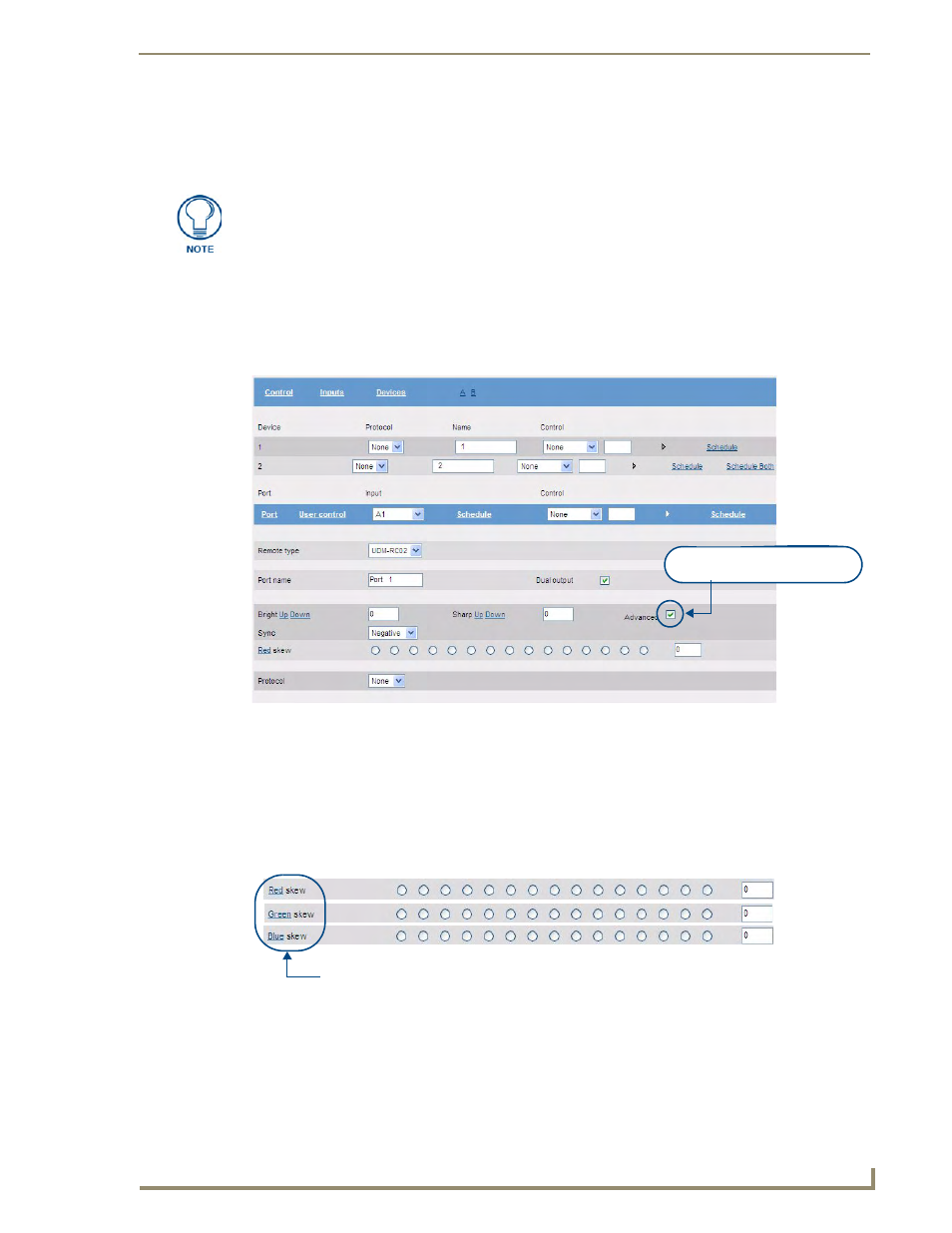

FIG. 37
Advanced Video Compensation Options (Port Configuration Page)
FIG. 38
Cable distance and Skew controls
Click to enable Advanced Video
Compensation options
Click the Color hyperlinks to cycle through
each color (Red, Green and Blue)
