UDM-RX02 Wiring and Connections
15 UDM-0102 and UDM-RX02 Operation/Reference Guide
UDM-RX02 Wiring and Connections
UDM-RX02 Front Panel Components
There are no components on the front panel of the UDM-RX02 (FIG. 11).
Rear Panel Components
All of the connectors and ports are located on the rear panel of the UDM-RX02 (FIG. 12):
Using an External Power Supply
Normally, the UDM-RX02 is powered remotely by the UDM-0102 Hub. However, in some cases
involving very long cable runs, it may be necessary to power the RX02 via the UDM-PS power supply.
The best way to determine wether the external power supply is needed is to observe the image received.
If there is noticeable distortion, then adding an external power supply may give a visible improvement.
Generally, the quality of image received depends mainly on distance and resolution.
Typically, the external power supply is not needed for cable runs of approximately 650’ (200m) or less,
but at greater distances it may improve image quality.
UDM Hub Port (RJ45)
The UDM-RX02 connects to the network through a connection to a UDM-0102 Hub. Refer to the UDM-
0102 Multi-Format Distribution Hub Operation/Reference Guide (available at www.amx.com) for
information on connecting the UDM-0102 to the network.
Refer to the Pinout Configuration section on page 6 for details.
Default IP Address
The default IP address of the UDM-RX02 is 192.168.0.96.

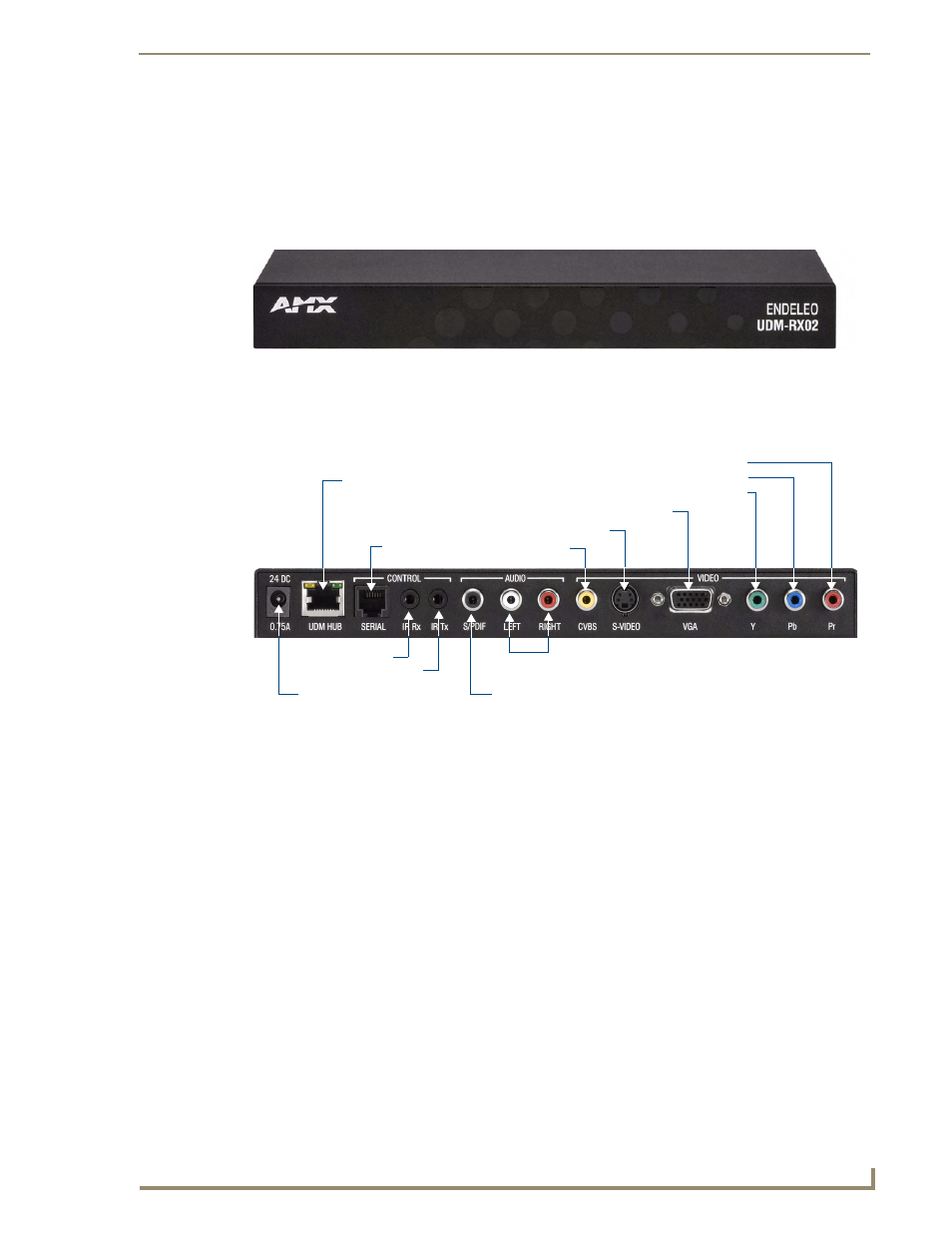

FIG. 11 UDM-RX02 - front panel
FIG. 12 UDM-RX02 - rear panel components
Serial port (RJ12)
IR Rx port
SPDIF female Digital Audio port
RCA audio
(left/right)
CVBS port
S-Video port
Power connector
UDM HUB port (RJ45) - from an
IR Tx port
VGA (HD15) port
Composite (Y) port
Composite (Pb) port
Composite (Pr) port
“OUTPUT” port on the UDM-0102
