Configuration
29 UDM-0102 and UDM-RX02 Operation/Reference Guide
The list of Keys along the left of the screen (1 to F) represent the keys on the UDM-RC02 Remote
Control). The following table describes the key layout for the RC02:
4. In line with a Key, go to the Control column and select an IR command from the drop-down menu
which this key on the UDM-RC02 Remote Control will issue (FIG. 31).
5. Select whether this button (on the remote control) should be associated with the Port (display
device) or an actual Device (e.g. a DVD player added to the system as a device) when it is pushed.
6. The UDM-RX02 will now accept the relevant command from the UDM-RC10.
For example, key C0 on the UDM-RC10 will Play the device (FIG. 32).
UDM-RC02 Keys Description
1, 2 Select UDM-0102 Inputs 1 and 2
0, 3-9 Pass-through
C0-C8 Programmed as needed to control the display or the input source
pause, play, stop, rwd and fwd Pass-through

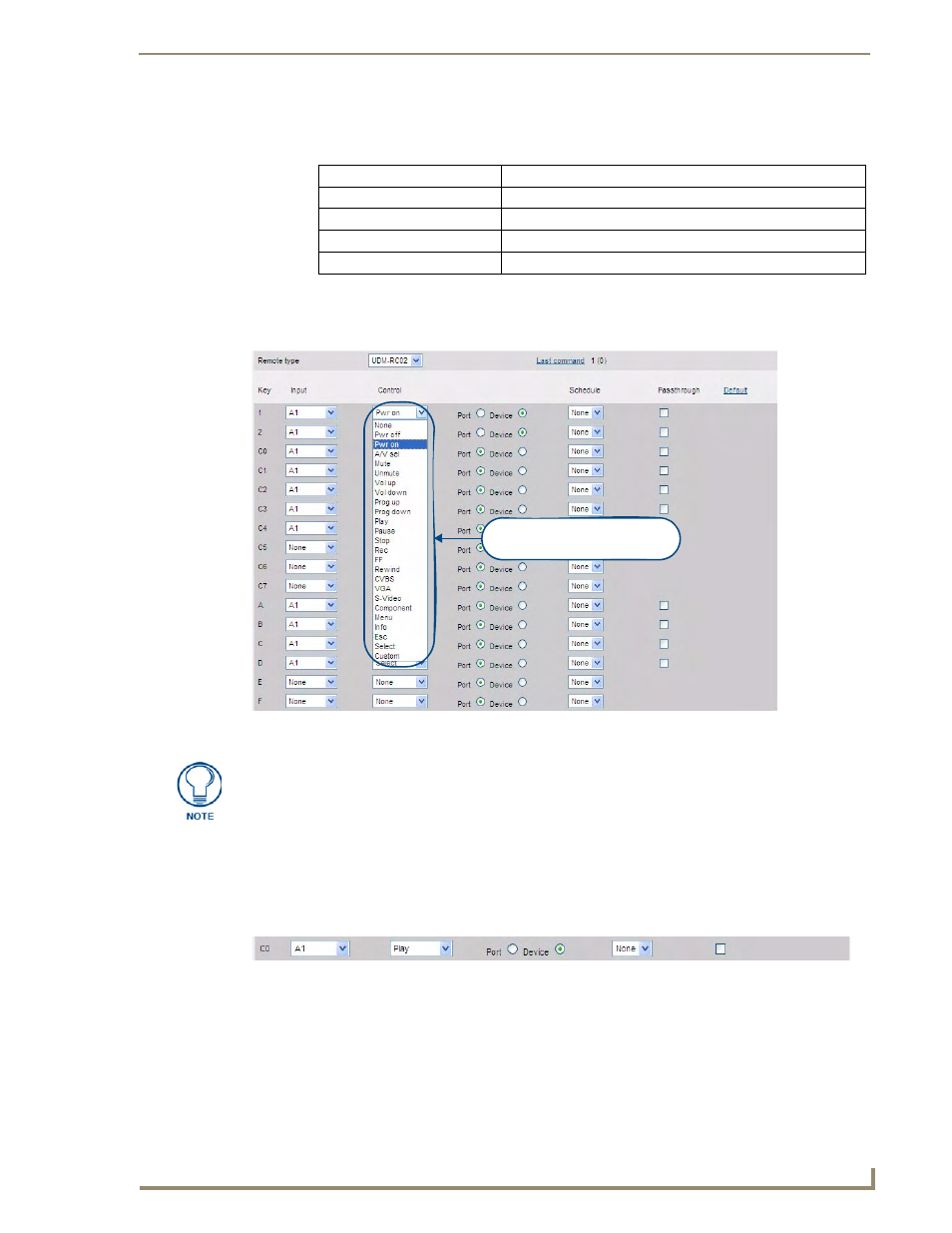

FIG. 31 User Control drop-down menu
Control options for Key 1 on the
UDM-RC02 remote control
Ensure the correct key on the UDM-RC02 corresponds with the correct command.
FIG. 32 Example: Key “CO” assigned to Play the device
