HP XP20000XP24000 Disk Array - Manual (Page 112)

4-18 Using the Cross-OS file Exchange Software
Hitachi USP V Cross-OS File Exchange User’s Guide
Parameter Line Dialog
The View-Parameter line… command opens the Parameter Line panel,
which displays the current line (parameter set) in the current FCU parameter
definition file.
The Parameter menu provides access to the following FCU functions:
• The Parameter-Load command loads the Previous, Next, Top, and
Bottom parameter lines from the current FCU parameter definition file. The
FCU main panel status bar updates the current line number when any
Parameter-Load command is executed.
• The Parameter-Save command allows you to either Insert the parameter
set being displayed into the current FCU parameter definition file, or Replace
the current parameter set (previously loaded) with the parameter set being
displayed. If you do not select this command, your parameter changes will
not be saved.
Note: This command does not save the current FCU parameter definition
file (you must use File-Save/Save As).
• The Parameter-Delete command deletes the current parameter set from
the current FCU parameter definition file. The line is not permanently deleted
until you save the current FCU parameter definition file using the File-Save
command.
• The Parameter-Wipe command clears all FCU initiation parameters
displayed on screen, so that you can input new parameters easily. This
command does not delete the current parameter set.

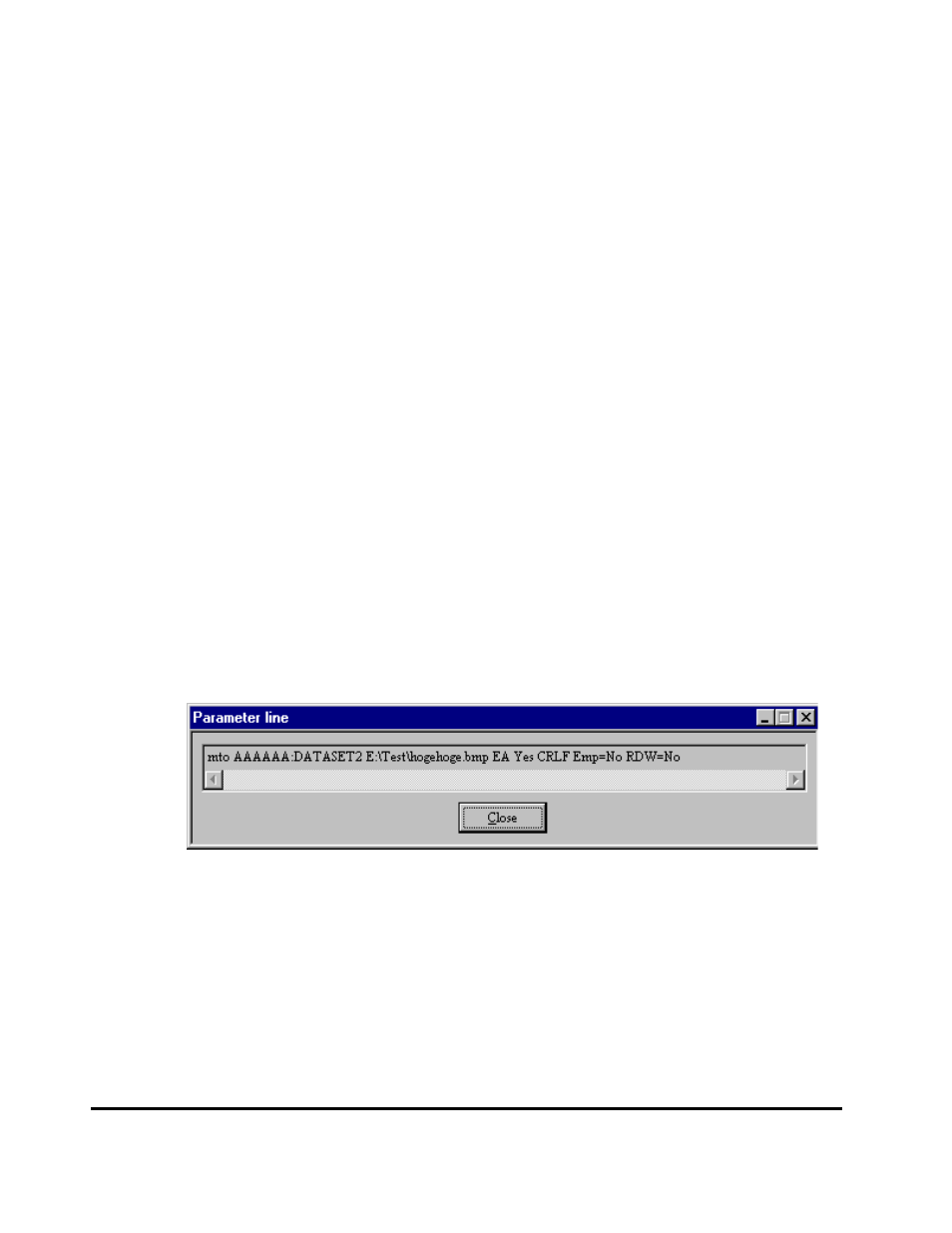

Figure 4-12 Parameter Line Panel
Execute Dialogs
After selection the desired operation on the FCU Main window, the Execute
button at the bottom of the window is enabled. Click Execute to start the
selected operation. (If the Execute button is not enabled, you have not saved
the current parameter set.)
