Lubricate the printhead carriage
The printhead carriage occasionally (about once a year) needs lubrication so that it continues to slide
easily along the slider rod.
1
.
To gain access to the carriage, go to the front panel and select the icon, and then select Replace
printheads. The carriage slides to the middle section of the printer.
CAUTION: If the carriage remains in the central part of the printer for more than 7 minutes,
it attempts to return to its home position on the right.
2
. Take the bottle of oil from the Maintenance Kit that is supplied with your printer. A replacement kit
can be ordered if necessary.
3

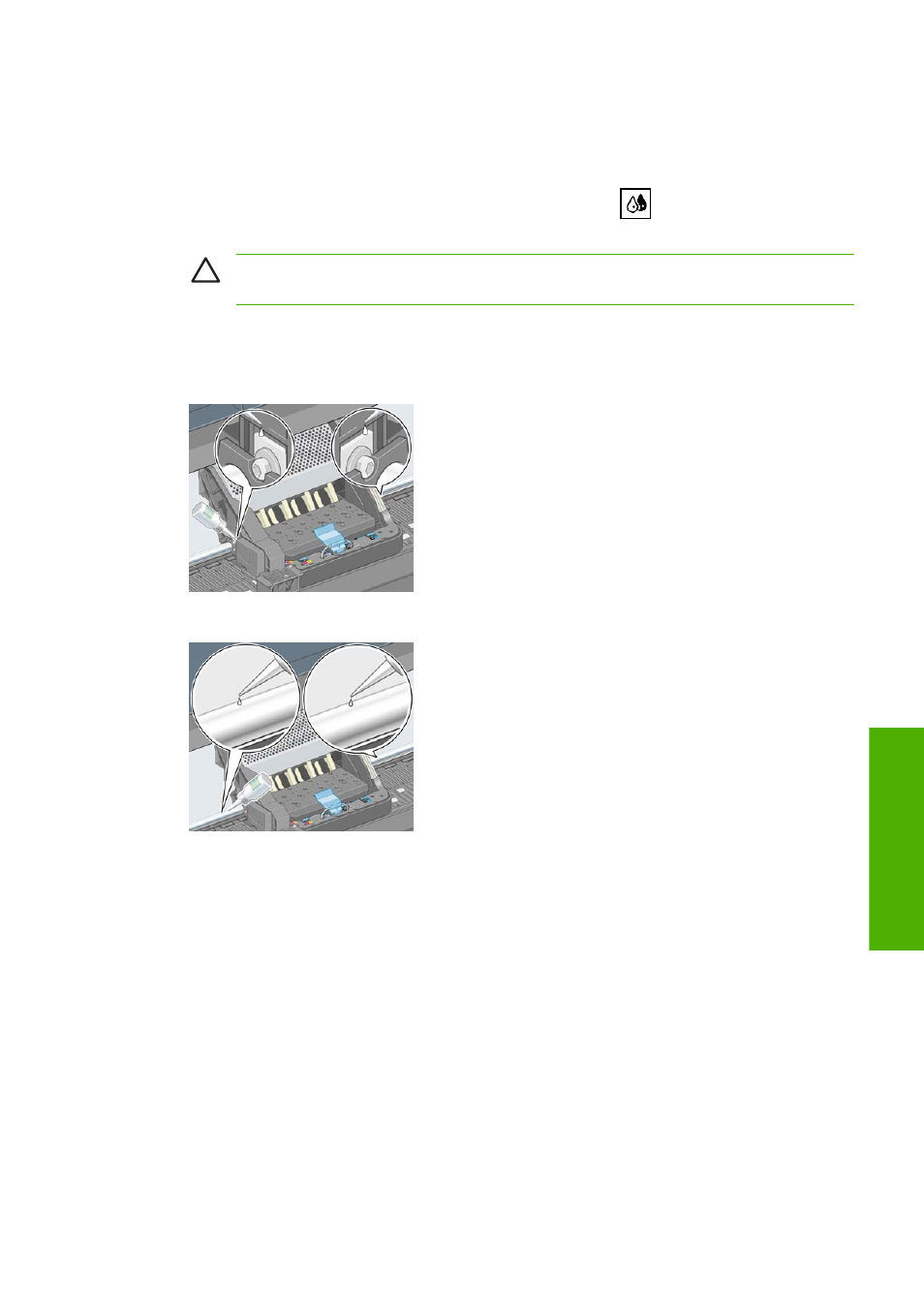

. Open the printer window and apply a few drops of the oil to the pads on either side of the carriage.
4
. Apply a few drops of oil directly to the slider rod on either side of the carriage.
5
. Close the printer window.
Maintain the ink cartridges
During the normal lifetime of a cartridge, no specific maintenance is required. However, in order to
maintain the best print quality, you should replace a cartridge when it has reached its expiration date,
which is the manufacturing date marked on the cartridge plus 30 months.
Perform preventive maintenance
During the life of your printer, components that are used constantly can wear out.
To avoid having these components degrade to the point that the printer breaks down, the printer keeps
track of the number of cycles that the printer carriage makes across the axis of the printer, and also
monitors the total quantity of ink used.
Lubricate the printhead carriage 139
