Configuring the 5258ACL Tape Drive for the
NonStop Himalaya S-Series Server
5258ACL Installation and User’s Guide — 522345-001
4 -4
Completing the PMF CRU Configuration Form
(PMF/IOMF)
To configure the modular tape drive to connect a tape drive to a processor multifunction
(PMF) CRU, you need:
•
The group, module, and slot hierarchy
•
To identifying FRUs
•
To complete the PMF CRU or IOMF 2 CRU Configuration Form
•
To configure the modular tape drive online by using SCF

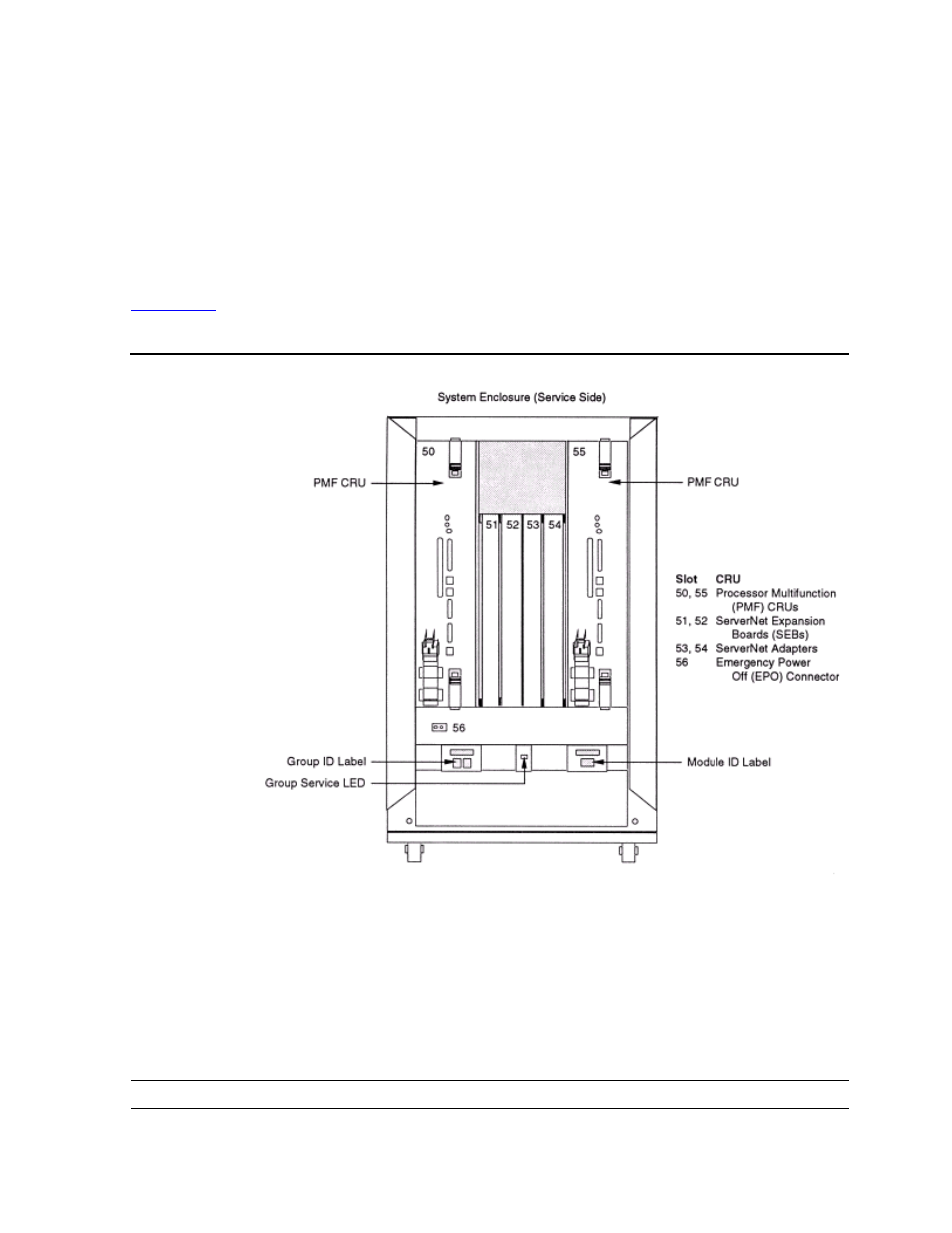

Figure 4-1 shows a NonStop Himalaya S-series processor with both PMF CRUs
installed.
Figure 4-1. Both PMF CRUs Installed
Completing the PMF CRU Configuration Form
(PMF/IOMF)
To connect a tape drive FRU to a PMF CRU, document the configuration of the PMF
CRU using a PMF CRU Configuration Form. This form documents configurable entities
associated with the connectors on a PMF CRU. It also provides information about the
tape drive to be connected to the PMF CRU.
Note. The SCSI passthrough terminator is preinstalled on the differential SCSI port.
