Operating the 5258ACL Tape Drive
5258ACL Installation and User’s Guide — 522345-001
3 -2
Front Panel
Front Panel
The front panel includes the power switch, the magazine door, and the control panel,
which has indicators, buttons, and a display.

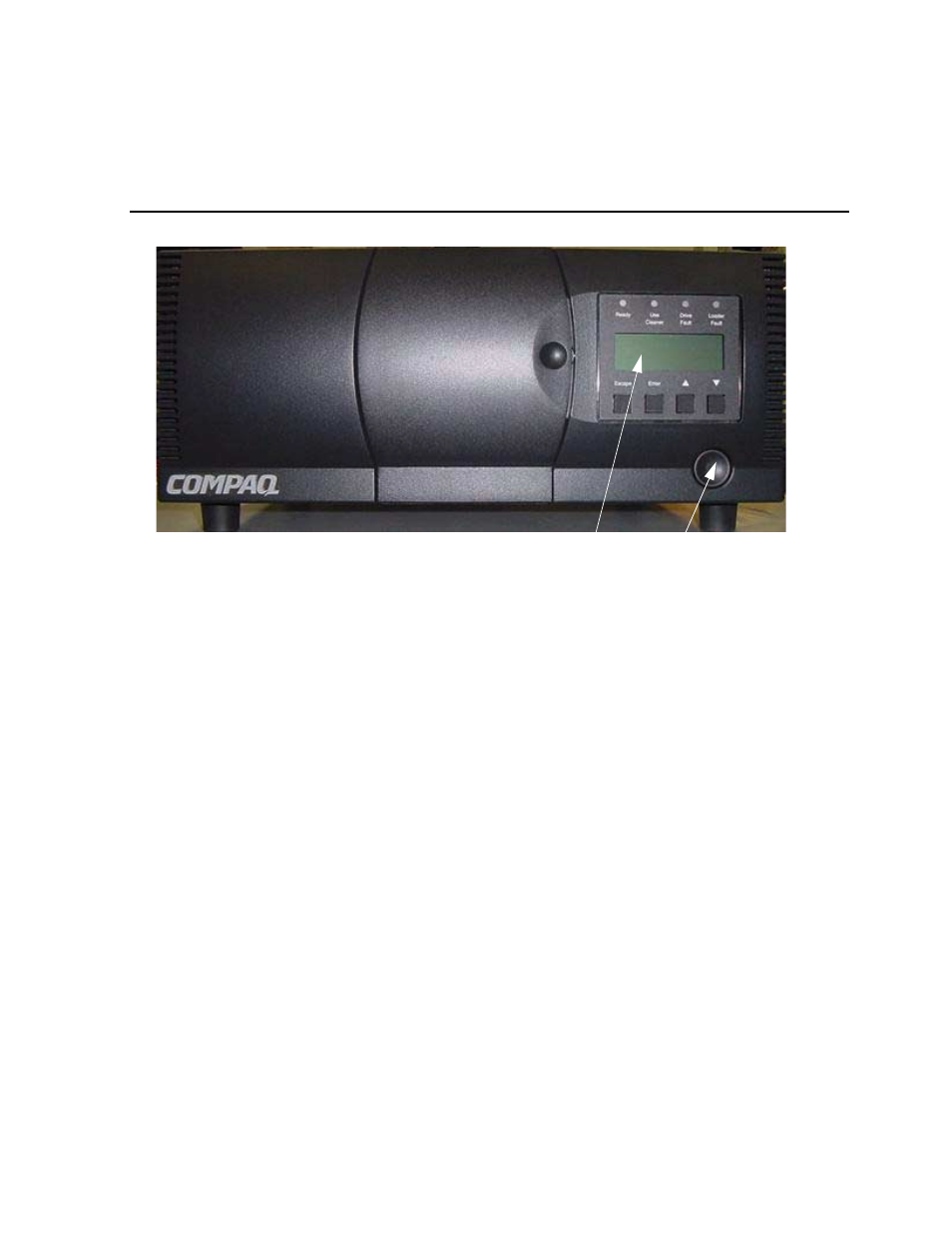

Figure 3-1. Front View of the 5258ACL
Power Switch
The power switch controls the supply of AC power to the 5258ACL. It is a push-
on/push-off switch. When the power is on, the backplane of the control panel display is
illuminated.
Magazine Door
Control Panel Display Power Switch
