Installing and Configuring the 5258ACL Tabletop
Drive
5258ACL Installation and User’s Guide — 522345-001
2 -2
Installing Host Interface Cables
Installing Host Interface Cables
Copper SCSI Cables
To Install SCSI Cables
The tape drive connects to a SCSI bus and supports only the differential alternative.
All host systems should have either the SCSI ports labeled or the international symbols
displayed to indicate the electrical configuration for that port.
1. Copy the device address to use later in the configuration process.
2. Connect the host SCSI cable to the right 68-pin jack at the rear of the drive see
Figure 2-1 .

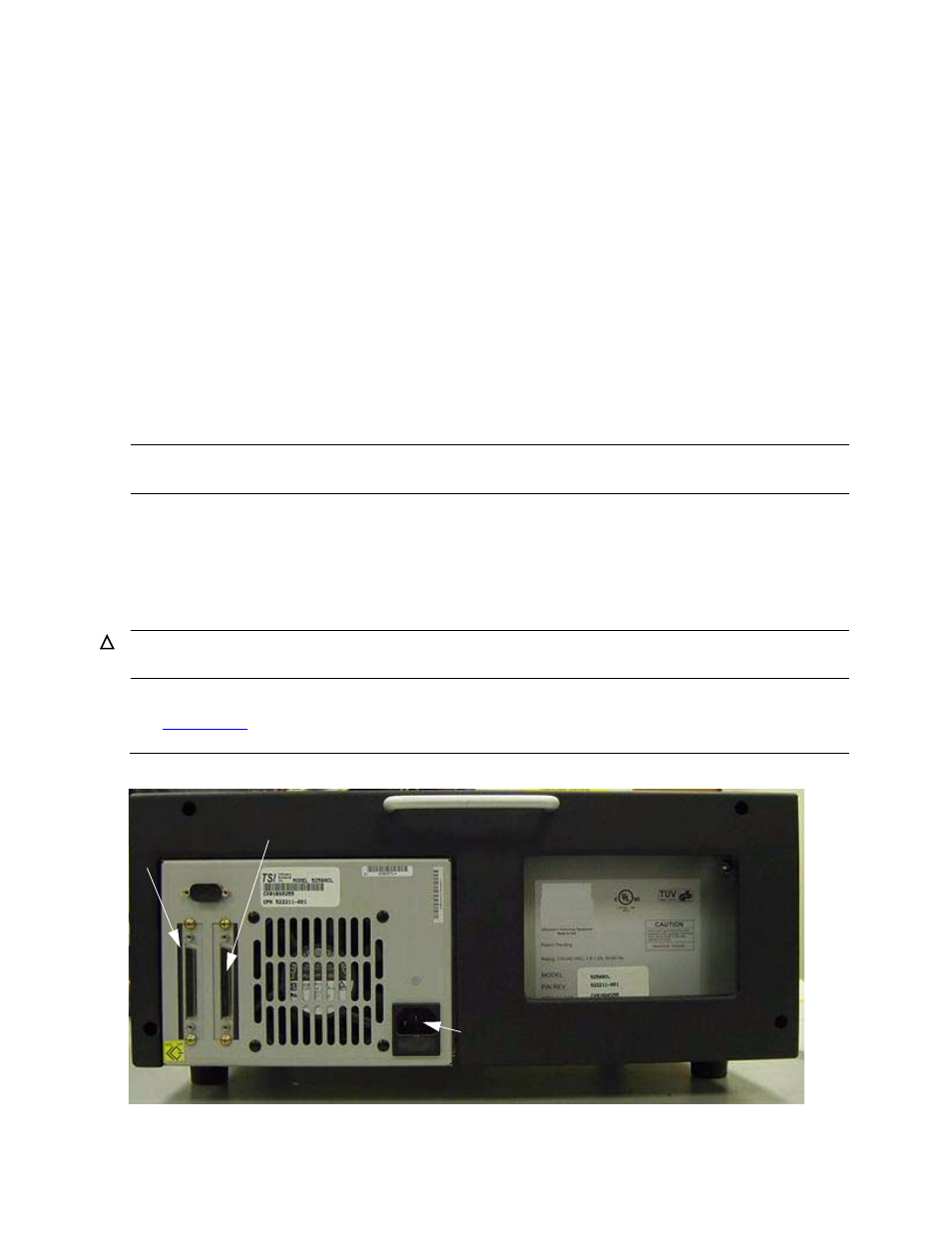

Figure 2-1. Rear View of the 5258ACL Tabletop Drive
Part Number Description
424360-001
424361-001
424362-001
424917-001
424363-001
1 meter copper SCSI cable
3 meter copper SCSI cable
15 meter copper SCSI cable
20 meter copper SCSI cable
23 meter copper SCSI cable
Note. Term Power is not supplied by the tape drive; it must be supplied by the Host Bus
Adapter card.
Caution. Connector Damage: Be careful not to bend or damage the pins or connectors when
connecting the cable to the drive or SCSI bulkhead.
Install
Terminator
Here Install
68-pin SCSI
Cable Here
Install Power Cord Here
