Network management 70
For Virtual Connect v1.34 and Virtual Connect v2.10, a maximum of 64 associated networks is
supported in each shared uplink set. All other versions support a maximum of 32 networks per shared
uplink set.

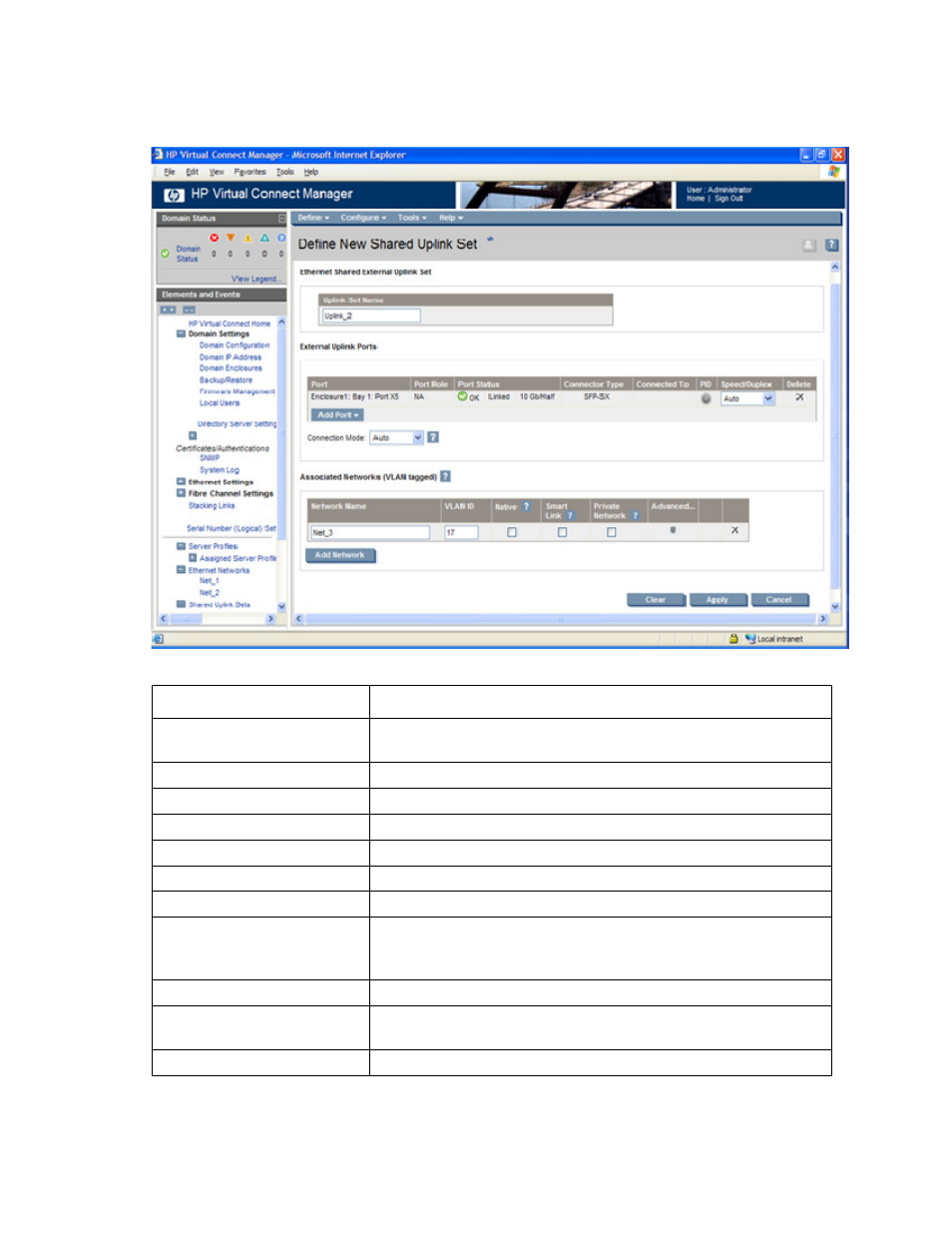

The following table describes the fields within the Define New Shared Uplink Set screen.
Field name
Description
Ethernet Shared External Uplink
Set
Uplink Set Name
Descriptive name for the shared uplink set. Do not use spaces.
External Uplink Ports
Port
Enclosure, bay, and port number
Port Role
Displays whether the port is designated as primary or secondary
Port Status
Displays linked or unlinked
Connector type
The type of connector on the port, for example, RJ-45
Connected to
If the individual port is connected to a switch that supports LLDP, the switch
MAC address and switch port number are displayed. A link is provided to
obtain more information about the far-end switch port.
PID
PID status icon (lit or unlit) for the port
Speed/Duplex
Pull-down menu to specify the speed and duplex (where applicable) of the
uplink port
Delete
Displays Delete icon. Click to delete that line item.
