Domain management 41

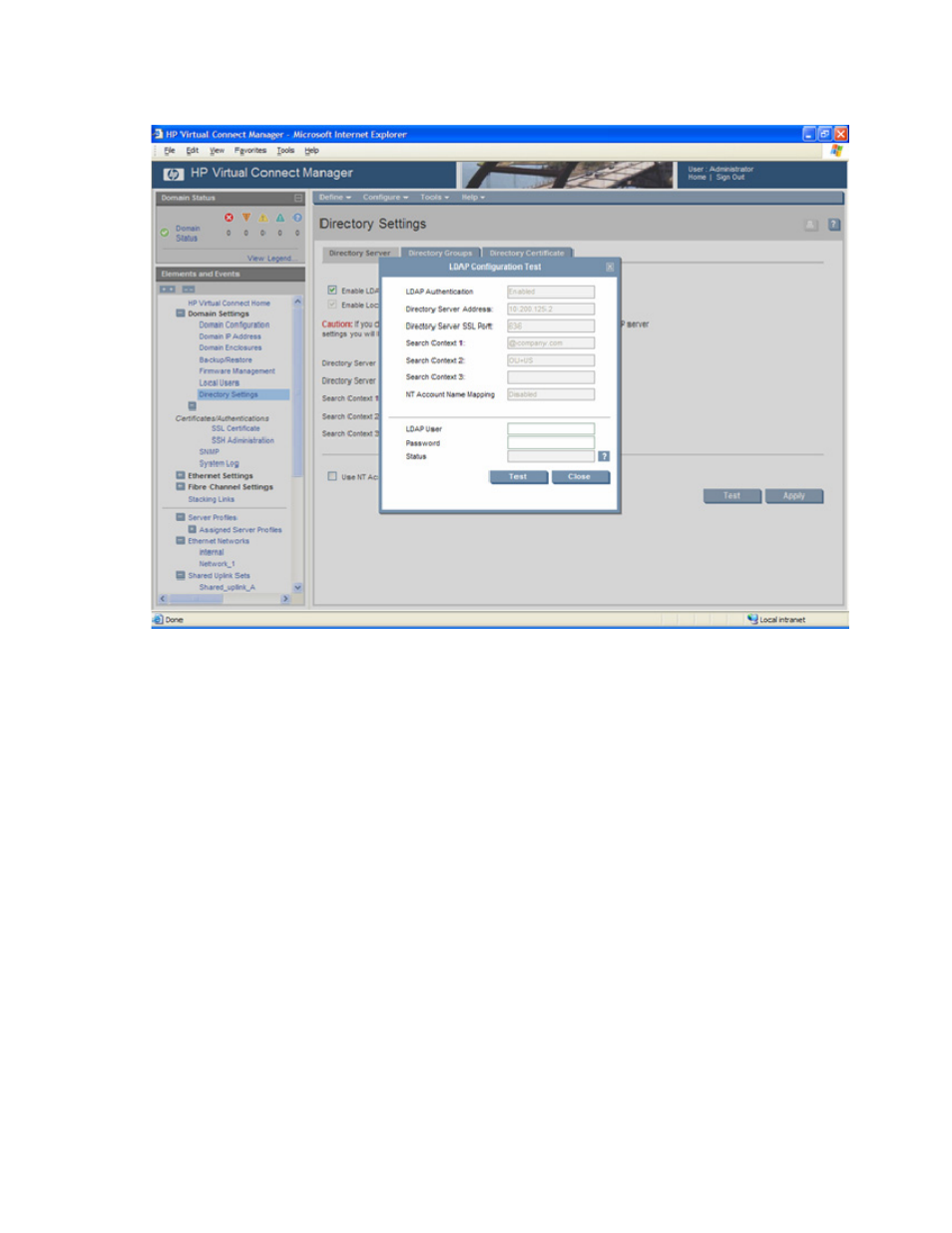

The status window displays any problems encountered during the test. When testing is complete, click
Close.
SNMP and SMI-S overview
SNMP is used by network management systems to monitor network-attached devices for conditions that
warrant administrative attention. SNMP consists of a set of standards for network management, including
an Application Layer protocol, a database schema, and a set of data objects.
The SNMP configuration is controlled by the Virtual Connect Manager and applies to all modules in the
VC domain. The SNMP agent software module residing on a primary module provides access to
managed information using SNMP protocol. The managed information is presented as a hierarchical
database called MIB. Each element of the managed information is identified by a unique identifier called
Object ID. Basic SNMP support is provided for both the VC-Enet module and the VC-FC module.
The ability to enable or disable SMI-S is available on the VC-FC module. The SMI-S was created by SNIA
to standardize storage management solutions. SMI-S replaces multiple disparate managed object models,
protocols, and transports with a single object-oriented model for each type of component in a storage
network. SMI-S enables management applications (such as HP SIM) to support storage devices from
multiple vendors quickly and reliably because they are no longer proprietary. SMI-S detects and manages
storage elements by type, not by vendor.
Users must have Administrative privileges to configure SNMP or SMI-S capabilities.
The VC-Enet module supports the applicable groups of the following SNMP MIBs:
•
Compaq Host MIB
