HP Virtual Connect 4Gb Fibre Channel Module for c-Class BladeSystem User Manual
Page 130

Hardware information screens 130
Row Description
Part Number
The part number to be used when ordering an additional module of this type
Product Name
The common descriptive name of the module
Serial Number
The unique serial number of the module
Dip Switch Setting
The current physical setting of the system maintenance switches in a
hexidecimal format, where the least significant four bits of the value
correspond to the four switches and a bit value of 1 indicates the switch is in
the "on" position.
Spare Part Number
The part number to be used when ordering a replacement module of this
type
Manufacturer
The manufacturer of the module
Firmware Rev
The current firmware revision of the module

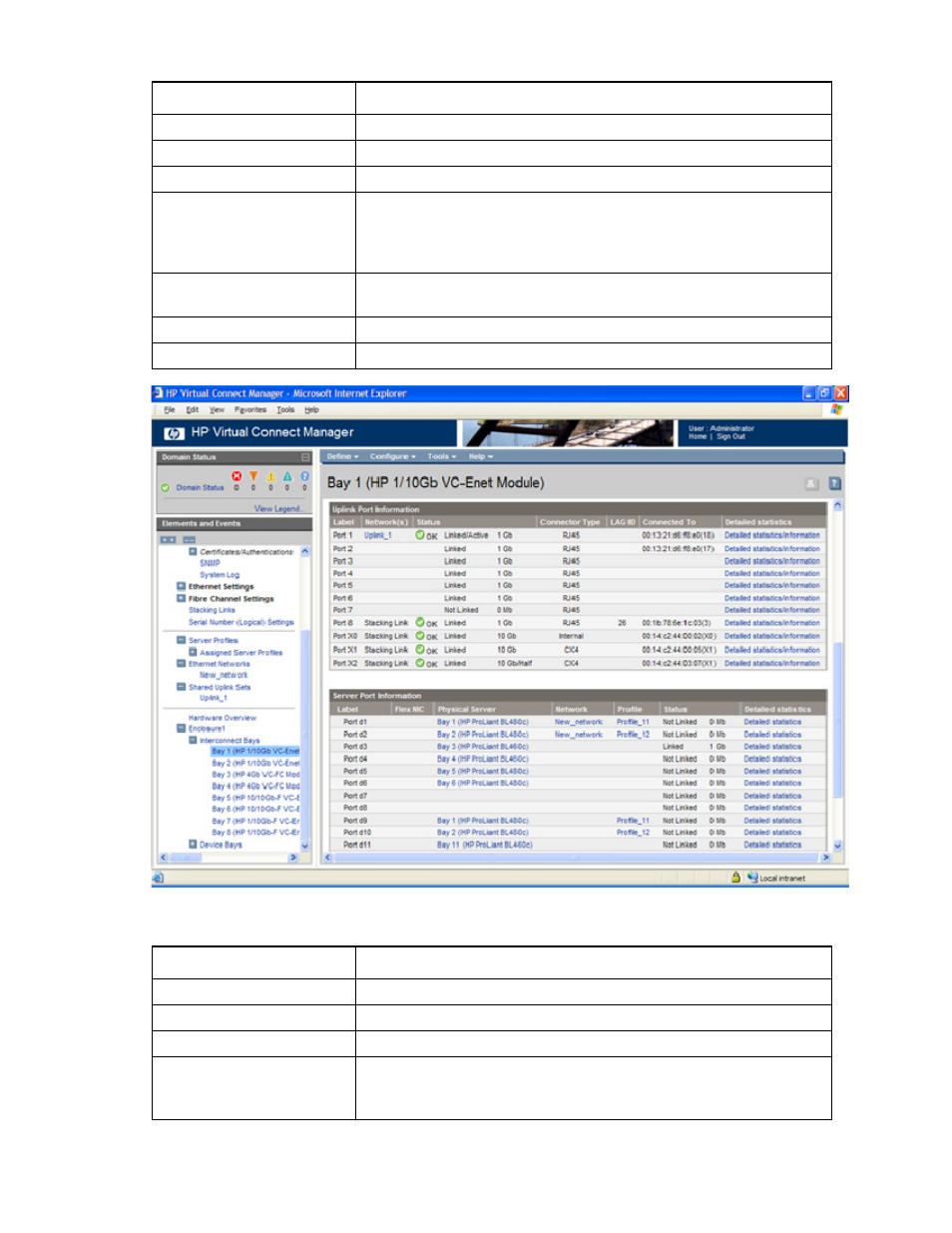

The following table describes the columns within the Uplink Port Information table in the Bay Summary
screen.
Column Description
Label
Uplink port number
Network(s)
Network name or the name of the shared uplink associated with this port
Status
Displays whether the port is linked or unlinked
Connector Type
Displays the physical type of the faceplate connector, type of pluggable
module if one is present, or "Internal" to indicate the inter-switch link is
active on the VC-Enet module.
