Enclosure status screen – HP Virtual Connect 4Gb Fibre Channel Module for c-Class BladeSystem User Manual
Page 127

Hardware information screens 127

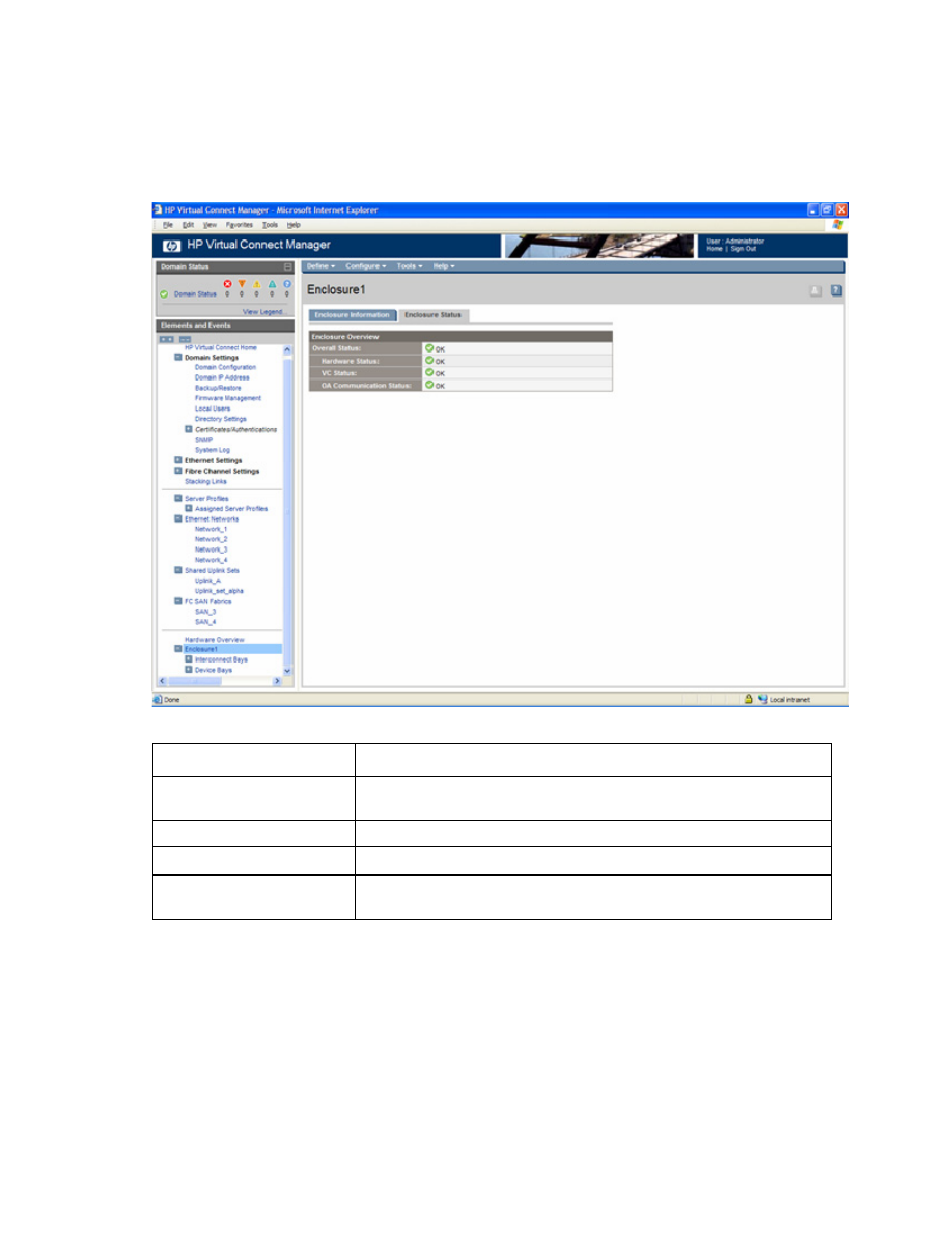

Enclosure Status screen
When a VC domain loses connectivity with a remote enclosure OA, the Enter OA Credential button
appears on this screen. For additional information, see "Recovering remote enclosures. ("
The following table describes the rows within the Enclosure Status screen.
Row Description
Overall Status
Represents the most severe condition of hardware status, VC status, and OA
communication status
Hardware Status
Enclosure health status from the OA
VC Status
Enclosure health status from the Virtual Connect Manager
OA Communication Status
Current Virtual Connect Manager to Onboard Administrator communication
state
