Remote Device Information
Description
remote_system_name
System name of the remote device. If the remote device is a VC-Enet
module, remote_system_name is the remote device's VC domain name.
remote_system_desc
Description of the remote system. If the remote device is a VC-Enet
module, remote_system_desc is the module's hardware description and
firmware revision.
remote_system_capabilities
System capabilities of the remote system, for example, repeater, bridge,
or router.
remote_mgmt_addr_type
Management address subtype of the remote device, for example, IPv4,
IPv6, or DNS.
remote_mgmt_addr
Management address of the remote device.

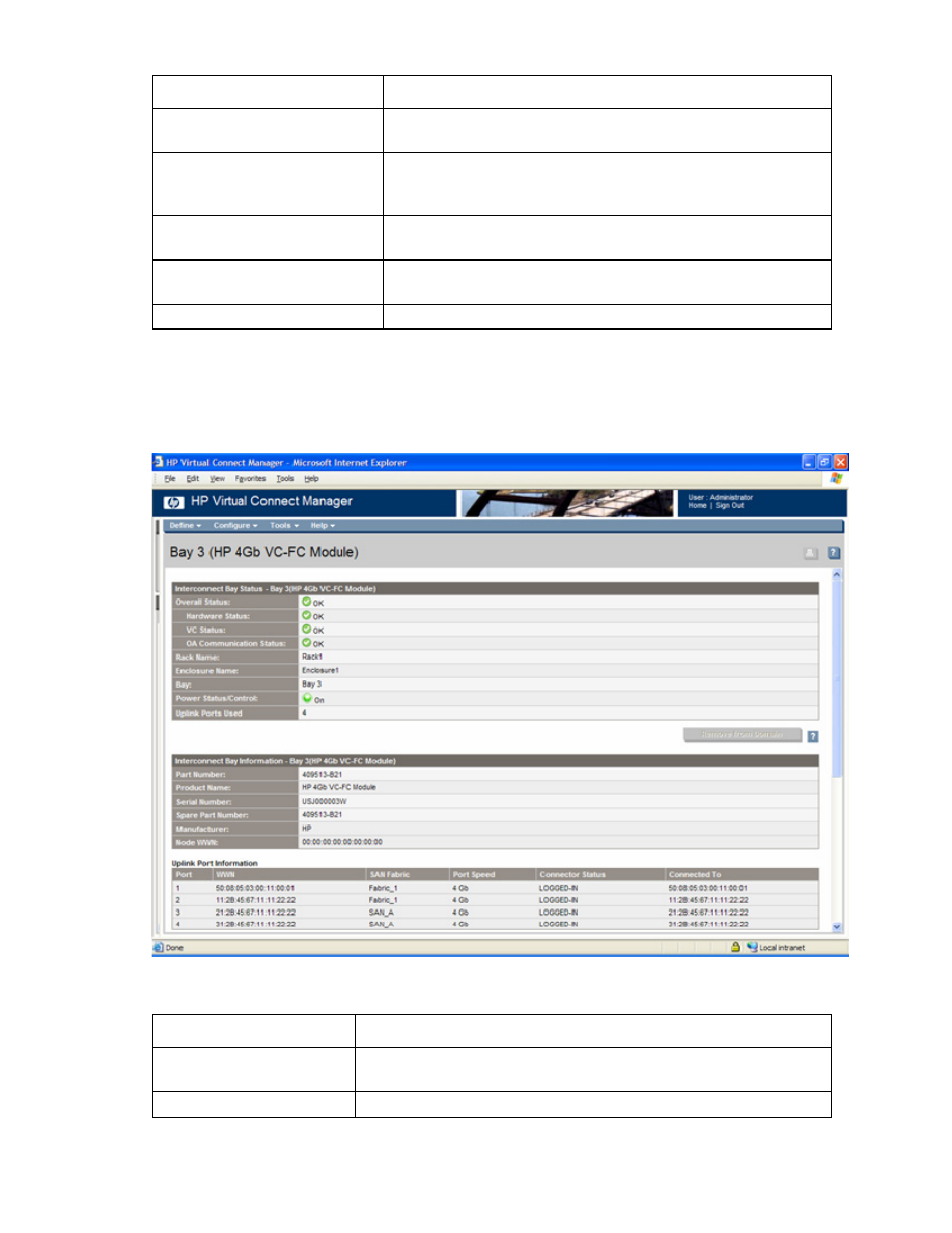

Interconnect Bay Summary screen (VC-FC Module)
This screen provides a summary of the interconnect module status and port information. To remove a
module from the domain, see "Administrative module removal (on page
The following table describes the rows within the Interconnect Bay Status (VC-FC Module) table in the Bay
Summary screen.
Row Description
Overall Status
Represents the worst condition of OA Reported Status, VC Status, and OA
Communication Status
Hardware Status
Component health status from the Onboard Administrator
