Chapter 6

Installing an Additional Processor

48

10. Lift the terminator out of the socket and place it on anti-static surface or

container.

11. Align the second processor over the empty processor socket.

The socket has a triangle marking for pin-1 that should match the triangle
for pin-1 on the processor near the end of the ZIF lever. See Figure 6-4.

CAUTION

Ensure you the align pin-1 of the processor with pin-1 of the
processor socket or pin damage will occur.

12. Insert the second processor into the socket and close the ZIF lever to fully

seat the processor.

You should hear the ZIF lever click when it closes properly.

Pin-1
Maker

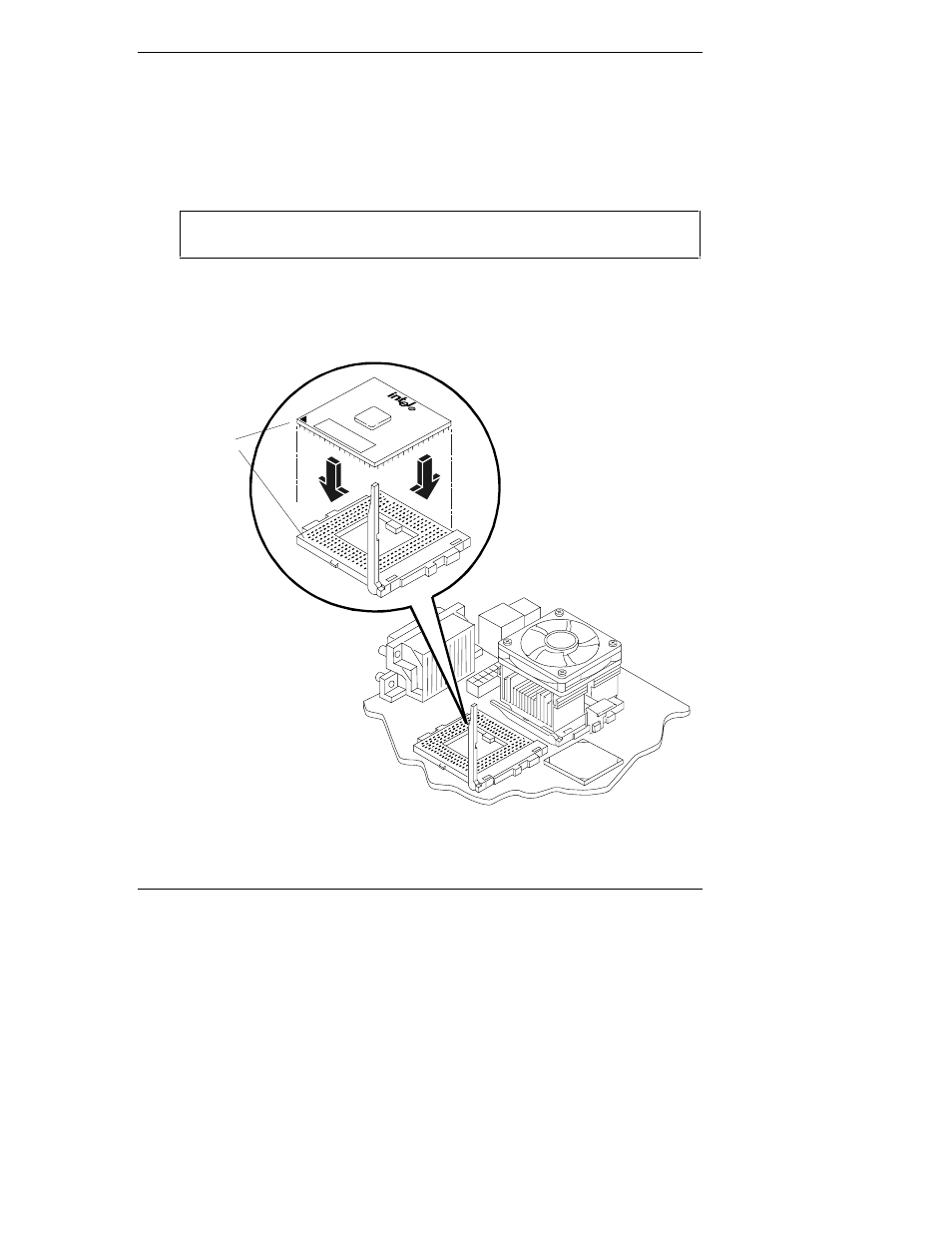

Figure 6-4. Installing the Processor on the System Board
