9.
Click Close to close the User Account Administration dialog box.
Figure 45

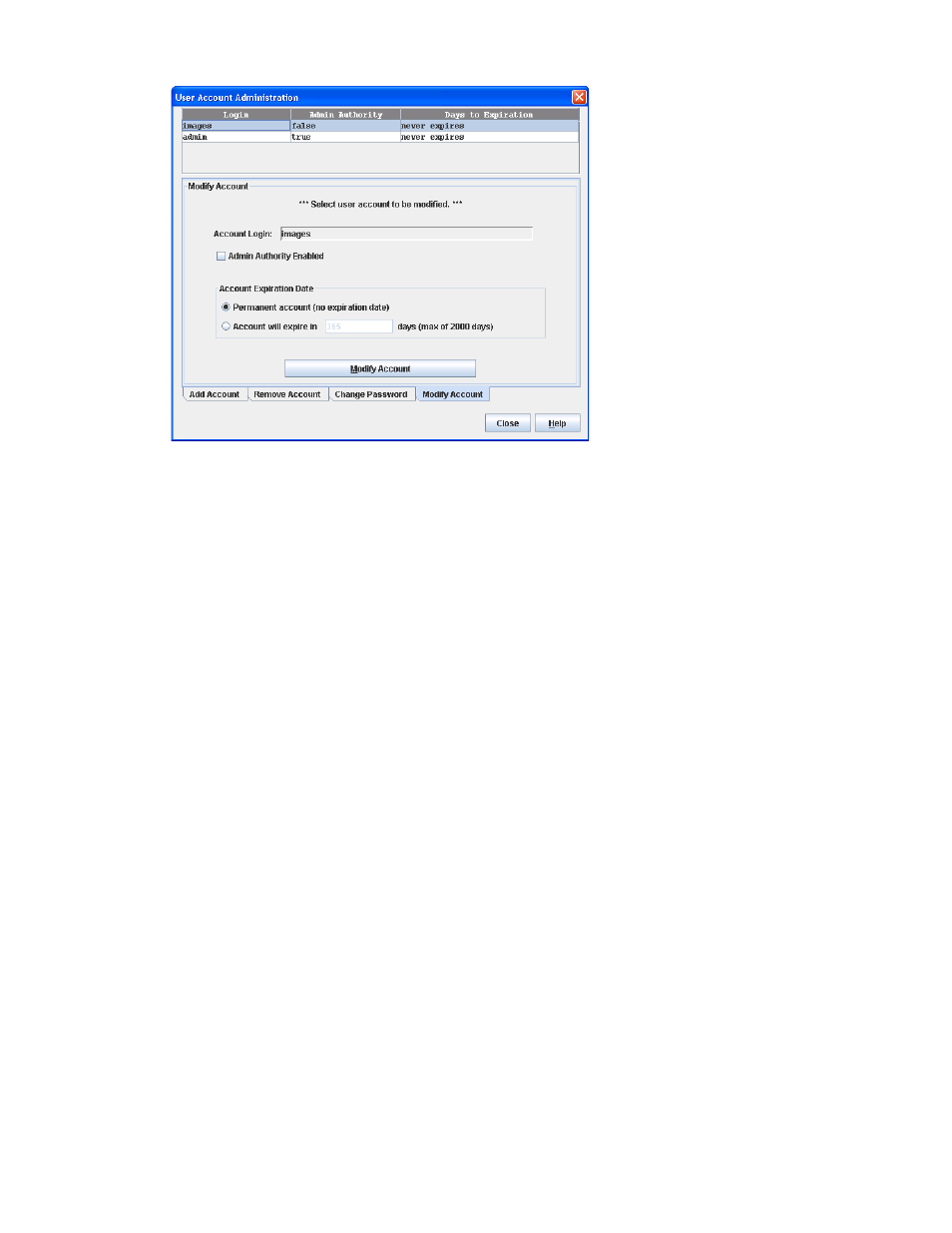

User Account Administration dialog box—Modify account
Viewing switch information
The faceplate and backplate displays and data windows provide the following switch information:
•
Device and HBA information
•
Switch specifications and addresses
•
Configuration parameters
•
Port information and performance statistics
•
Configured zone sets
•
Configured and active security
•
Link information
•
Mouse-overs display popup-like information when you rest the cursor over key elements, such as ports,
and LEDs.
The fabric updates the topology and faceplate displays by forwarding changes in status to the
management workstation as they occur. You can allow the fabric to update the switch status, or you can
refresh the display at any time. To refresh switch status in the display, do one of the following:
•
Click Refresh.
•
Select View > Refresh.
•
Press the F5 key.
•
Right-click a switch in the topology display, and select Refresh Switch from the popup menu.
•
Right-click in the graphic window of the faceplate display, and select Refresh Switch from the popup
menu.
The Switch data window and the Stack Links data window are described in detail in the following sections.
