Using Enterprise Fabric Management Suite
Alerts panel
The Alerts panel shows all reasons for status, including faults. The Alerts panel entries are the highlighted
rows between the faceplate image and the data window entries.
The up/down arrows on the divider bar between the Alerts panel entries and data windows enable you to
move the divider bar up or down incrementally. With the faceplate image in the graphic window and the
data window displayed, you can do the following:
•
Click the up arrow (on the left) to move the divider up to the top of the window, completely hiding the
faceplate image.
•
Click the down arrow (on the right) to move the divider back to the middle. Click the down arrow again
to completely hide the data window.
•
Click and drag the divider bar to manually move it up or down.

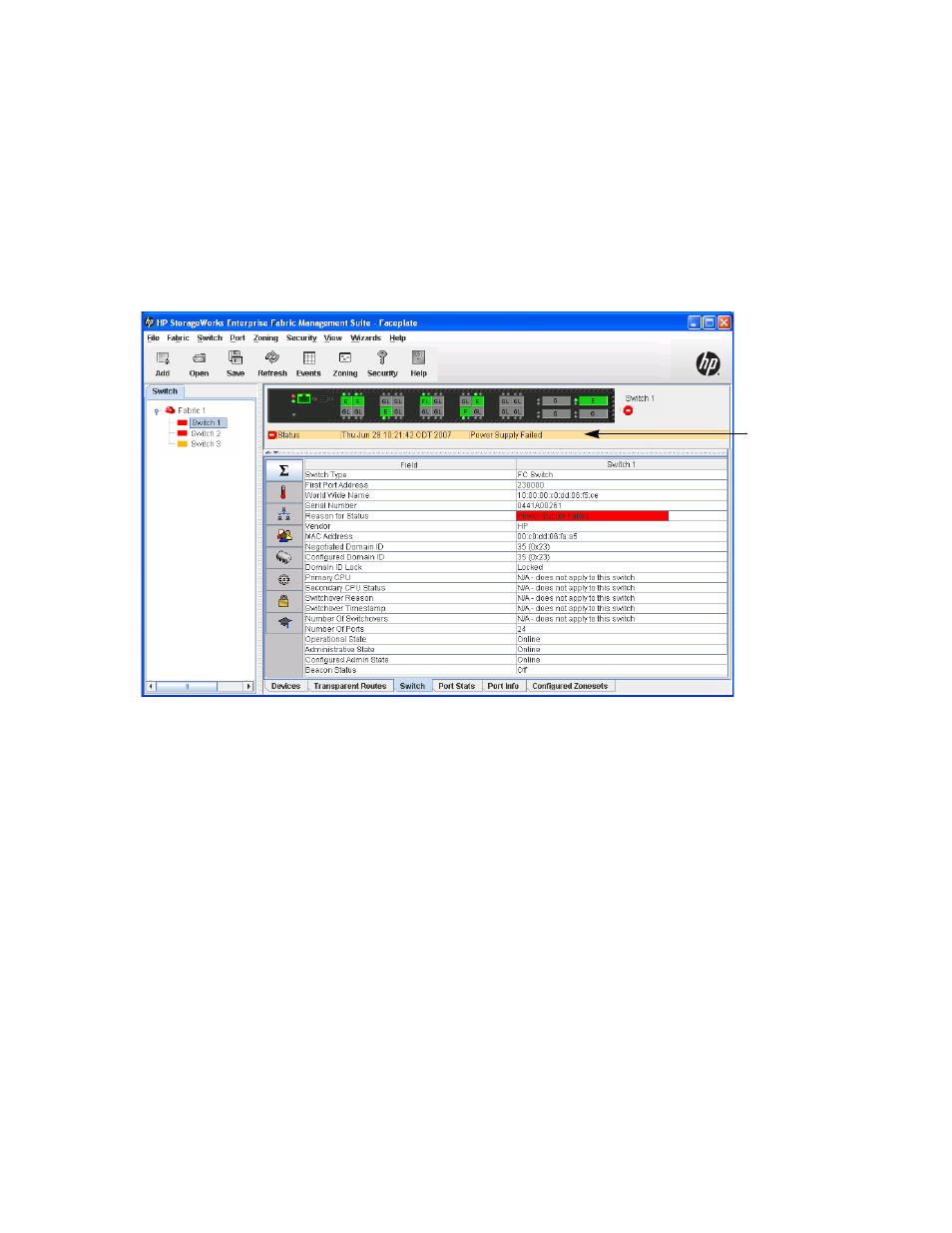

Figure 11
Alerts panel
Status
section
