HP StorageWorks 8/20q and SN6000 Fibre Channel Switch Enterprise Fabric Management Suite User Guide
17
Enterprise Fabric Management Suite user interface
The Enterprise Fabric Management Suite application uses faceplate and backplate displays to manage the
switches in a fabric. The interface (
) consists of a menu bar, fabric tree, graphic window, data
windows (some with buttons), and data window tabs. The topology display (
) appears in the
graphic window and shows all of the switches and connections in the fabric. The fabric names and switch
names appear in the fabric tree. Click a switch name or icon to display a different switch faceplate in the
graphic window. Information displayed in the data windows corresponds to the selected data window tab.

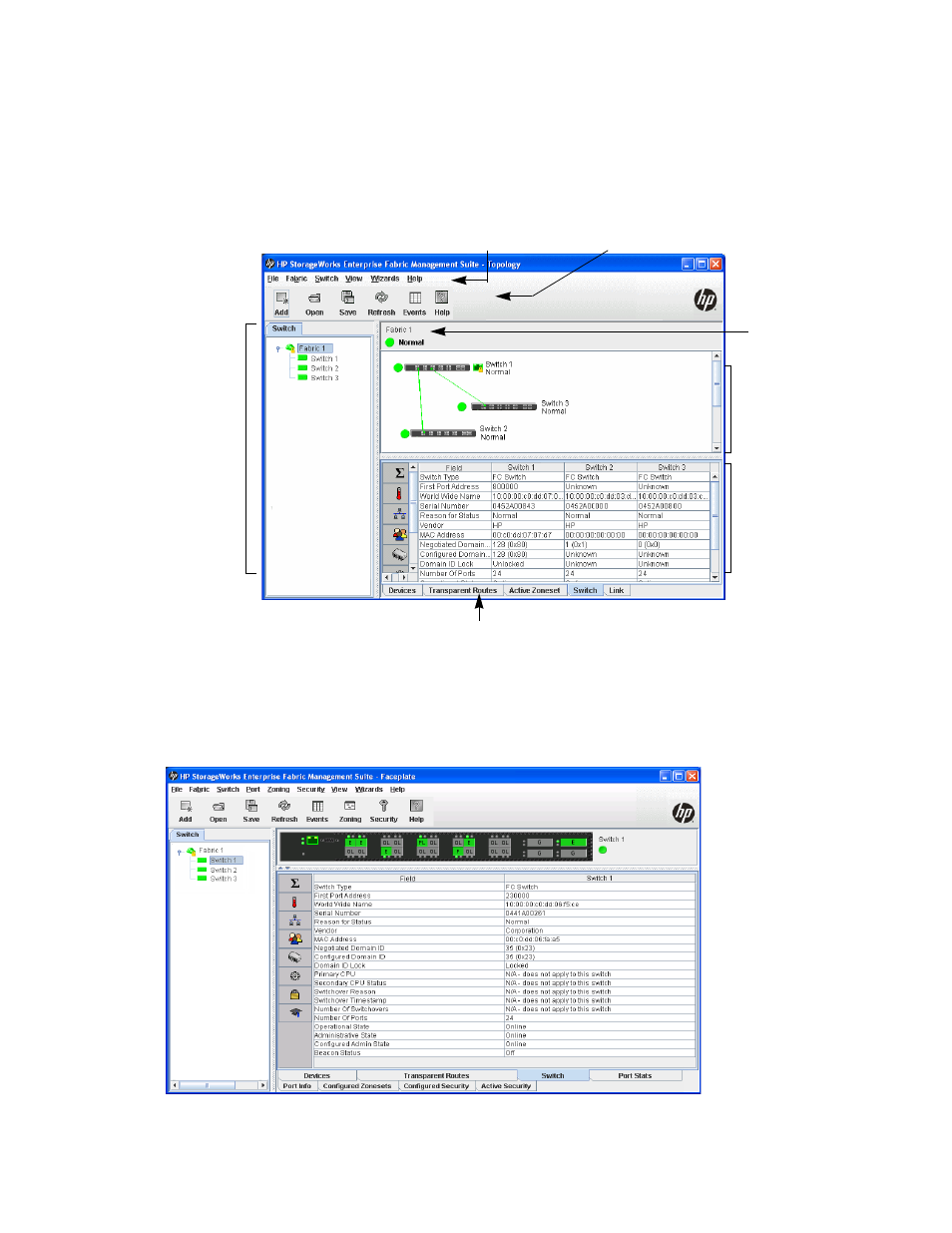

Figure 7
Topology display elements
The faceplate and backplate displays are used to manage individual switches. The faceplate displays of
the 8/20q and SN6000 Fibre Channel Switches are similar, showing the front of a switch and its ports.
The backplate display shows the power supplies for single and dual power supply switches.
shows an SN6000 Fibre Channel Switch faceplate display.
Figure 8
SN6000 Fibre Channel Switch faceplate display
Menu bar
Data window tabs
Tool bar
Data
window
Graphic
window
Fabric
tree
Switch/fabric
name and
status
