The Transparent Route dialog box (
) displays detailed information about the transparent route you
selected from the Transparent Routes data window. The state of the route (Active or Inactive) is shown, and
Port WWN, TR Port WWN, and Status fields are displayed for both sides of the route. Device A does not
necessarily correspond to the HP H-Series Fibre Channel Switch side of the route because the end points of
the route could be in any order.

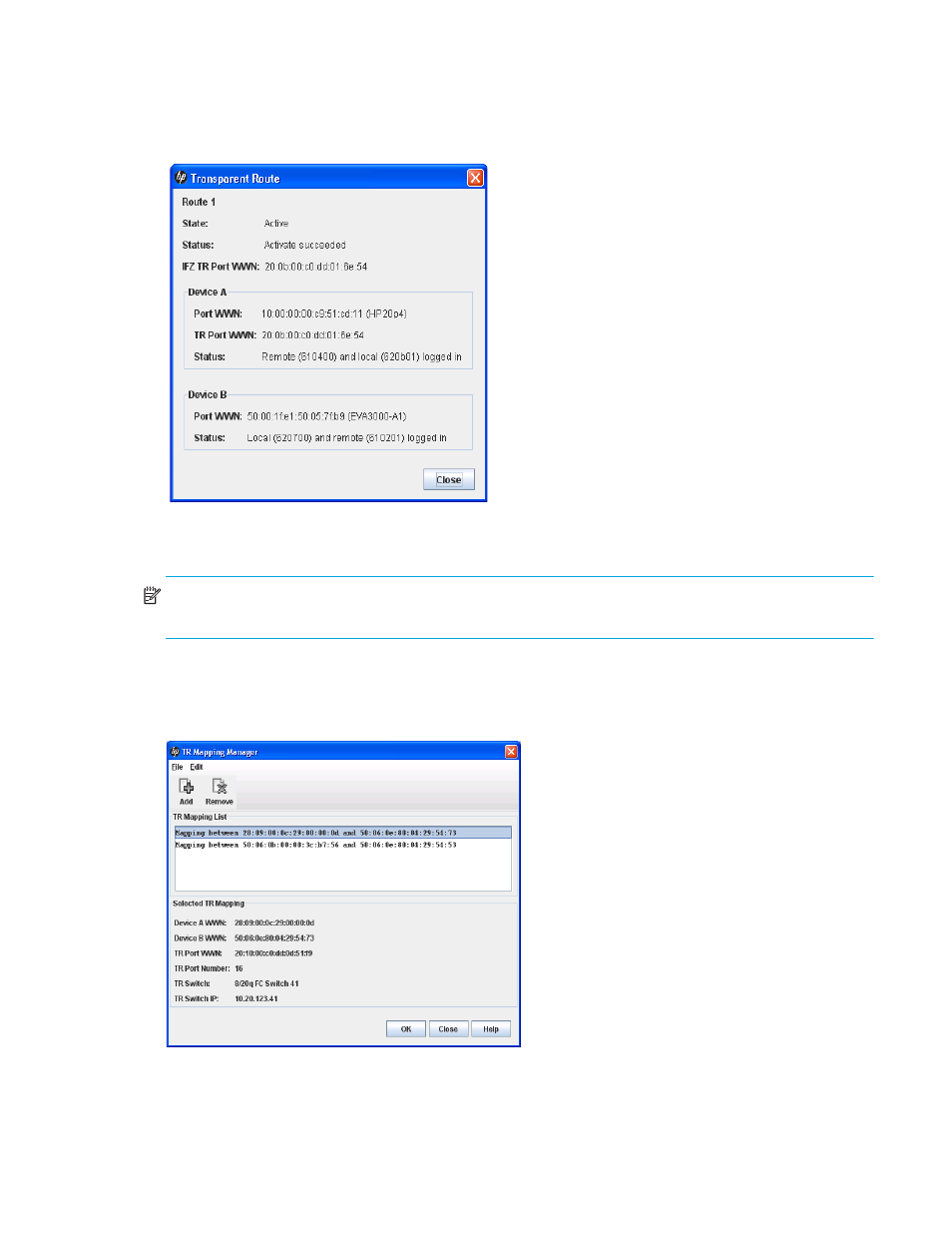

Figure 22
Transparent Route dialog box
TR Mapping Manager dialog box
NOTE:
The Merge Auto Save option in the Config Zoning dialog box must be selected before you can
open the TR Mapping Manager dialog box. For more information, see ”
To view the current inter-fabric routes:
1.
Select Fabric > TR Mapping Manager to open the TR Mapping Manager dialog box (
2.
Select a TR mapping member in the TR Mapping list for which to display information.
Figure 23
TR Mapping Manager dialog box
