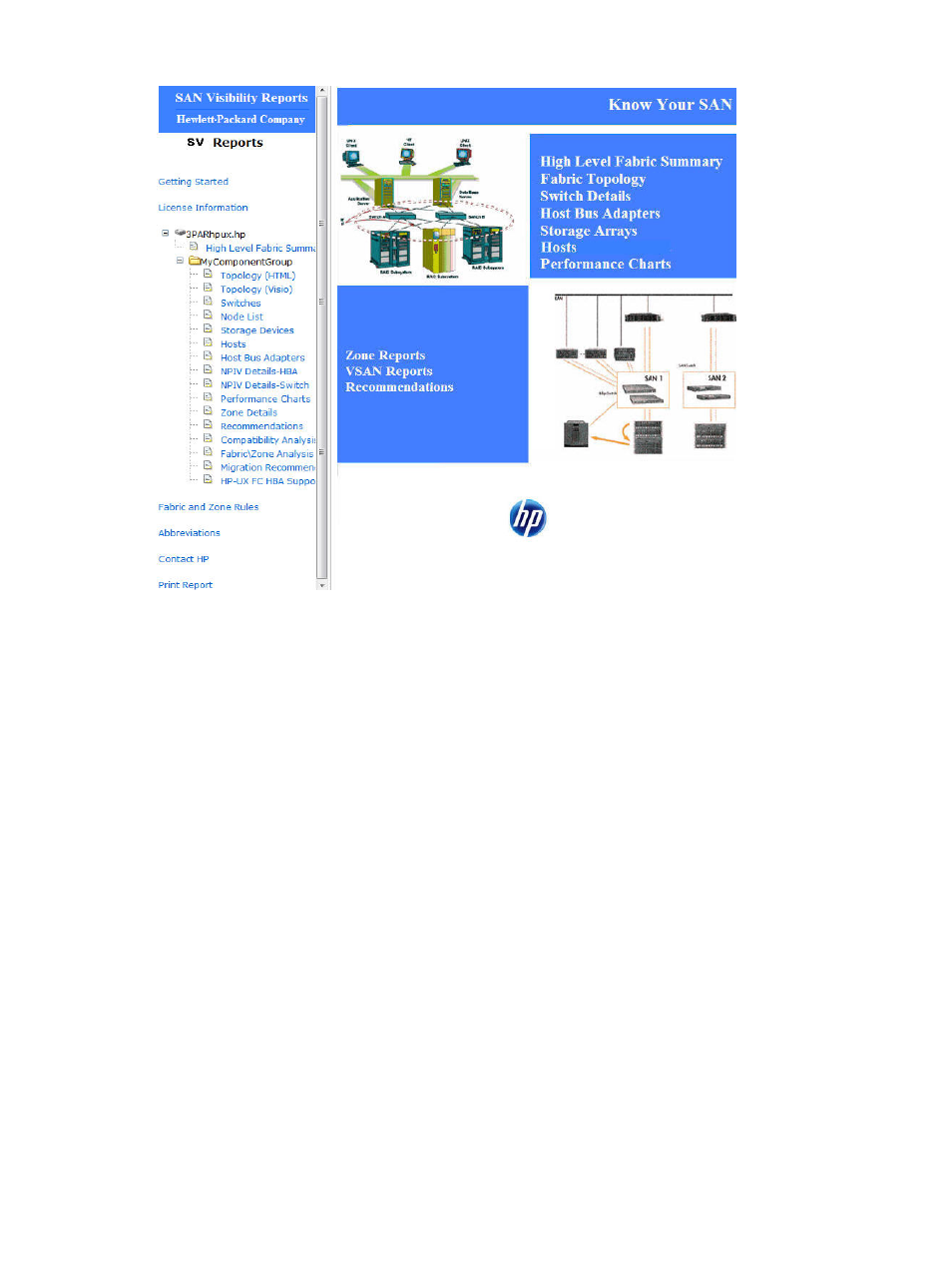

Figure 30 Processed report
Comparing SAN
SAN Visibility provides an option to compare SANs and generate reports.
To use this feature, you must have the SVReport.comp file. The SVReport.comp file is bundled
with the processed report.
To compare SANs, complete the following steps:
1. Select SAN Comparison > Compare SAN.
The SAN Comparison window is displayed.
2. Select File > Open > Dataset1.
By default, it opens the ExtractedProcessedReports folder.
3. Select the SVReport.comp file for comparison.
4. Follow steps 1–3 to load Dataset 2.
If you select any node in Dataset1 or Dataset 2, the corresponding details of the node will be
displayed.
5. Select Highlight Changes > Dataset1 or Dataset2 to check the changes.
The changes will be highlighted in red (see Figure 31 (page 46) ), and the new devices are
shown in blue.
Using SAN Visibility 45
