Example 3 Filtering virtual machine details in the processed report

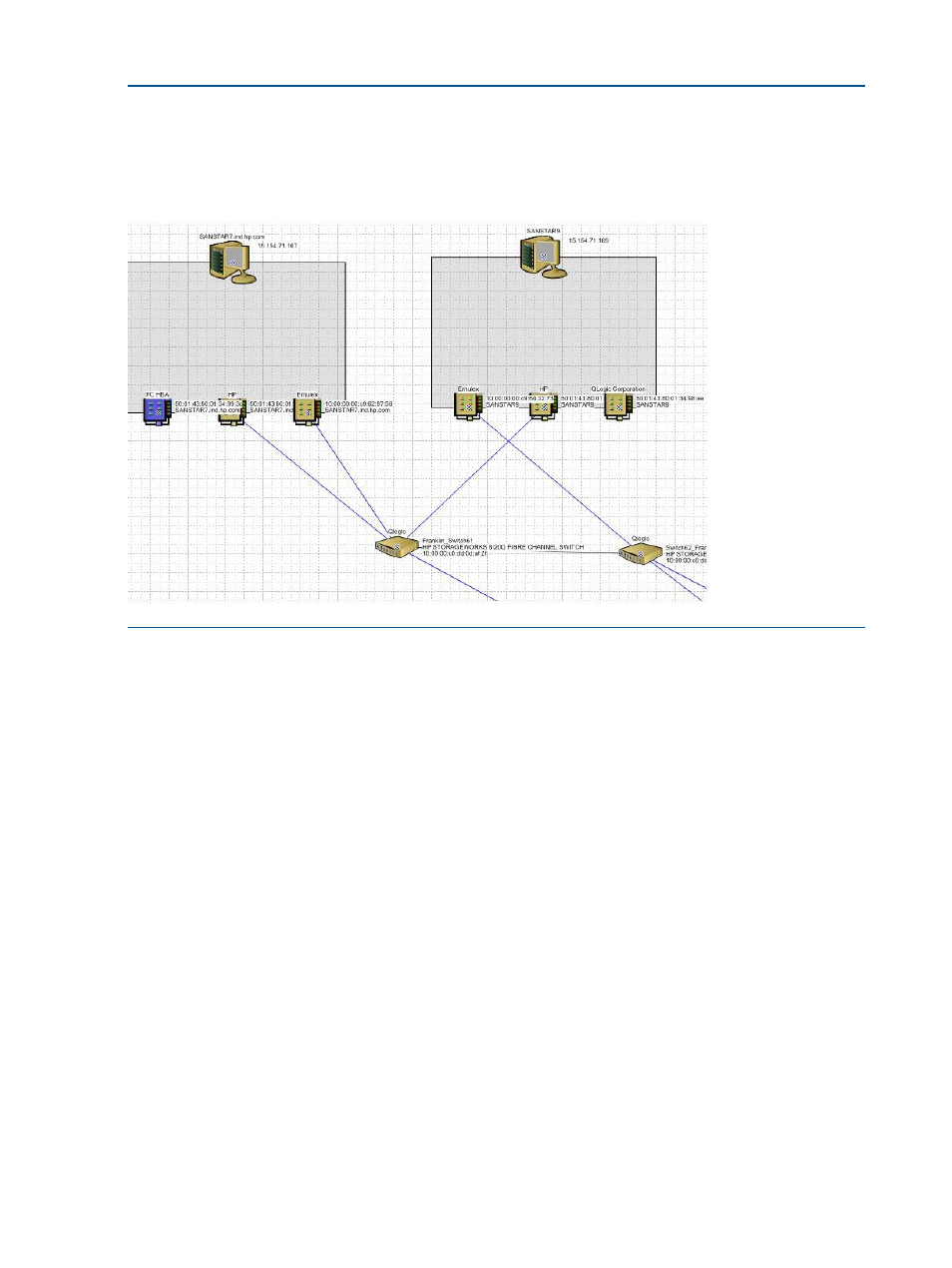

Figure 19 shows an example of how the processed report appears if you have opted not to display
virtual machine details in the processed report. Even though your SAN environment may contain
virtual machines, the processed report, including the topology diagram, will not display the virtual
machine details.
Figure 19 Filtering virtual machine details
Customizing SAN device labels to be displayed in the topology diagrams (optional)
HP Storage SAN Visibility provides an option to customize the SAN device labels that you want
to view in the processed report. Only the SAN device labels that are selected will be displayed in
the SAN topology diagram.
To specify the SAN device labels that you want to view in the SAN topology diagram, complete
the following steps:
1.
Click Advanced Settings from the navigation area of the SAN Visibility GUI.
2. Click the Customize Topology Labels tab. Figure 20 (page 31) displays the customize SAN
topology window.
