Specifying SAN details

The SAN Settings window displays SAN details. It enables you to add and modify a SAN group.

Figure 4 (page 15)

shows the SAN Settings window.

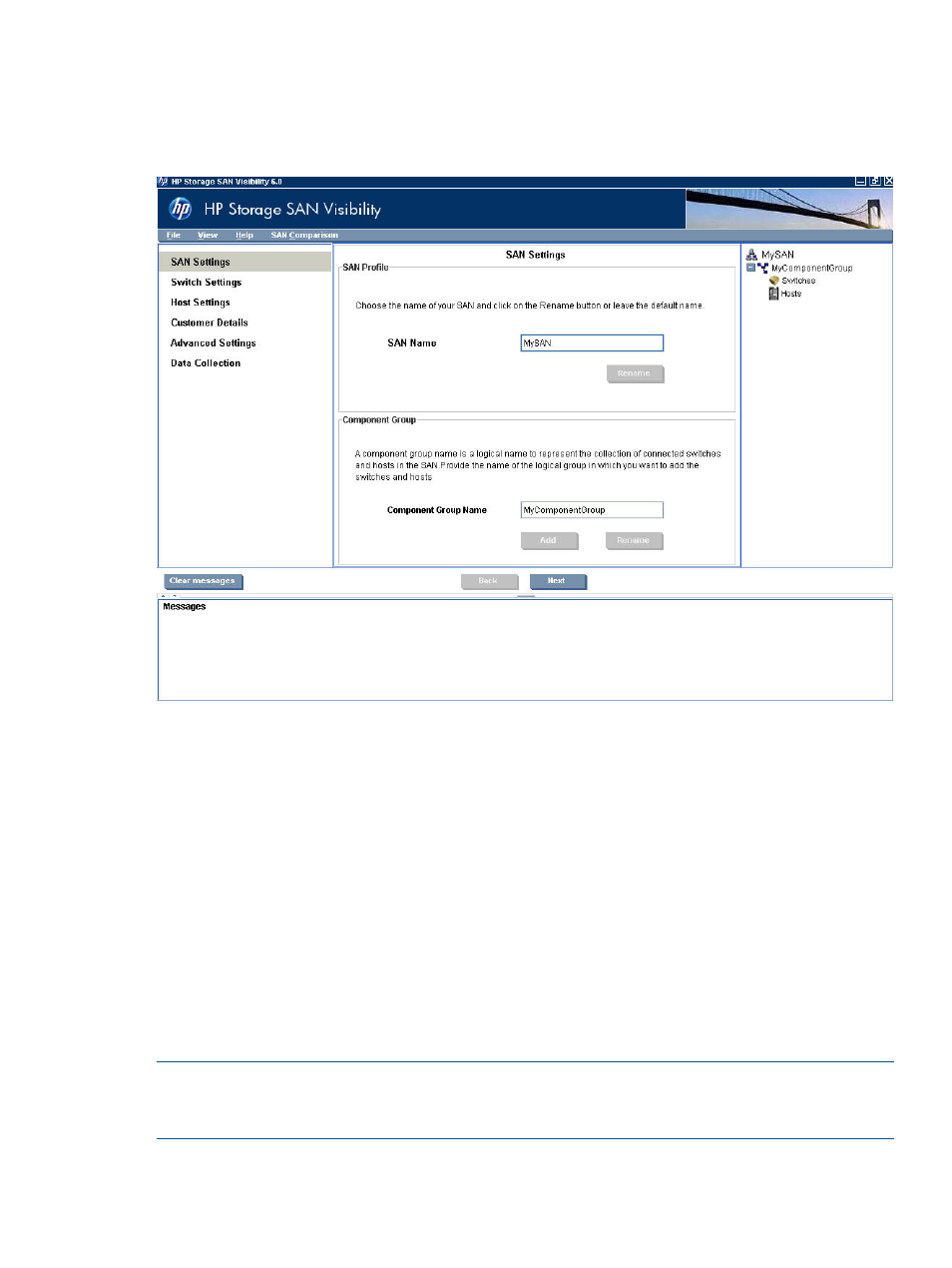

Figure 4 SAN Settings window

Adding SAN details

To add SAN details:
1.

Click SAN Settings from the navigation area. The SAN Settings window is displayed in the
main display area. The default SAN name, MySAN, is displayed in the SAN Name box, as
shown in

Figure 4 (page 15)

.

If you want to rename the SAN, then enter the name of the SAN that you want to scan in the
SAN Name box.

2.

Click Rename.

3.

The Confirmation window is displayed with the following message:

Do you want to rename the Profile "MySAN" with XYZ?

Click Yes, to rename the SAN name.

Click No, to cancel and not rename.

4.

Once the renaming is confirmed, the SAN name appears in the SAN explorer area.

NOTE:

Raw data file generated by SAN Visibility uses the SAN name. For example, if the SAN

Name is MYHP, the raw report file is generated as MYHP.hp at the \reports
directory.

A Component Group Name is a logical name to represent the collection of connected switches
and hosts in the SAN.
