Example 4 Customizing storage device labels in the processed report
shows an example of how the processed report looks like if you have opted
to view only specific SAN device labels in the processed report. Only the SAN device labels that
are selected in the Customize Topology Labels window will be displayed in the processed SAN
topology diagram.

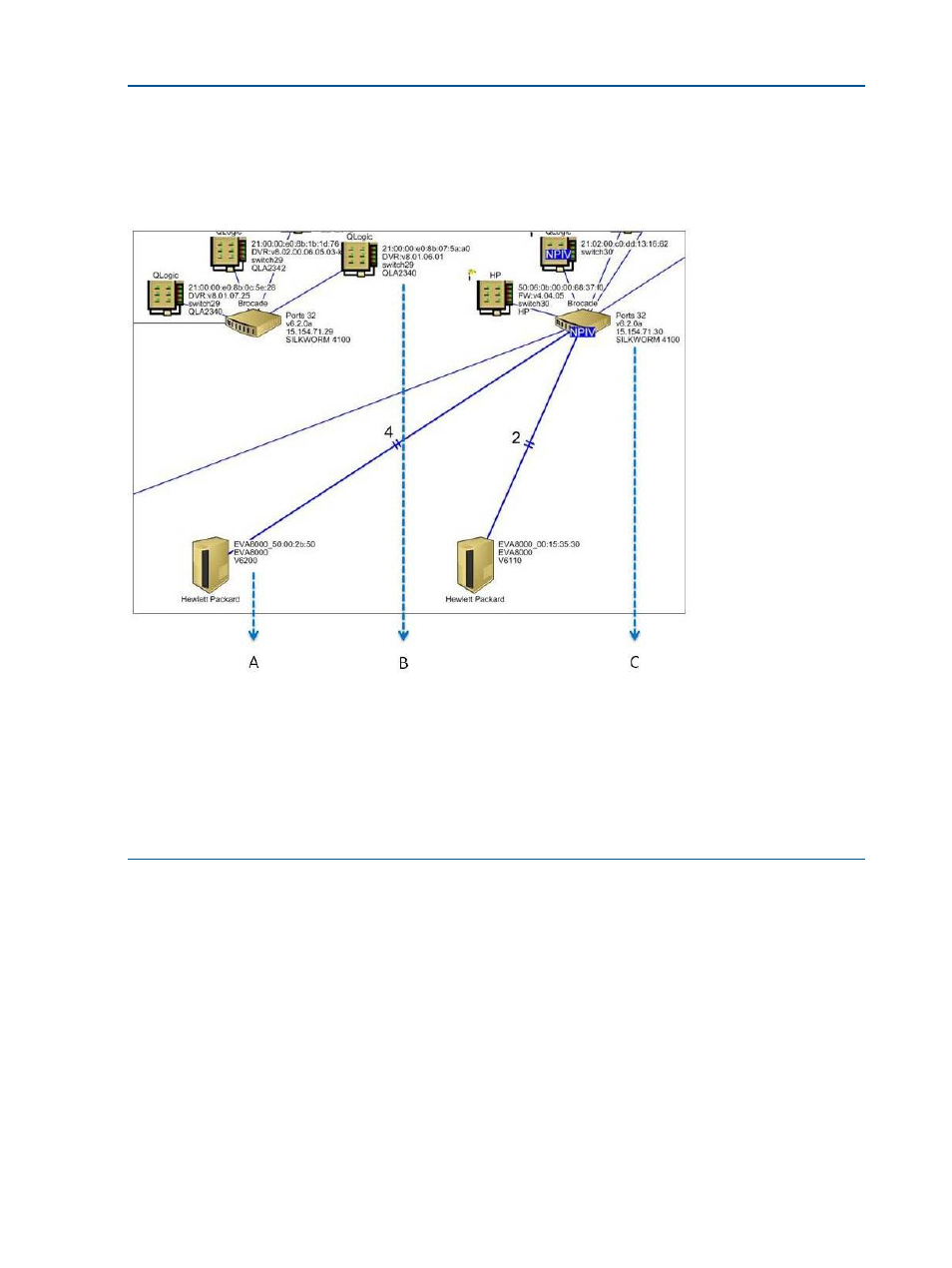

Figure 21 Customize topology label window
A — Array details. Only the array name, model number and firmware version is displayed as selected in the SAN
Visibility GUI before data collection.
B — HBA details. Only the WWNN, driver version, connected switch and model number is displayed as selected in
the SAN Visibility GUI before data collection.
C — Switch details. Only the IP address, firmware version, number of ports and model number is displayed as selected
in the SAN Visibility GUI before data collection.
Checking compatibility between different SAN components
HP Storage SAN Visibility analyzes compatibility for the different SAN components available in
the report. It will check compatibilities between, Host and Switch, Switch and Array, Host and
Array using SDG guidelines. The guidelines and recommendations will be generated and added
in processed report.
To check the compatibility between different SAN components, complete the following steps:
1.
Click Advanced Settings from the navigation area of the SAN Visibility GUI.
2.
Click the Compatibility Check tab.
displays the Compatibility Check
window.
By default, the check boxes under the Compatibility Check tab are selected.
