Profibus Control Panel

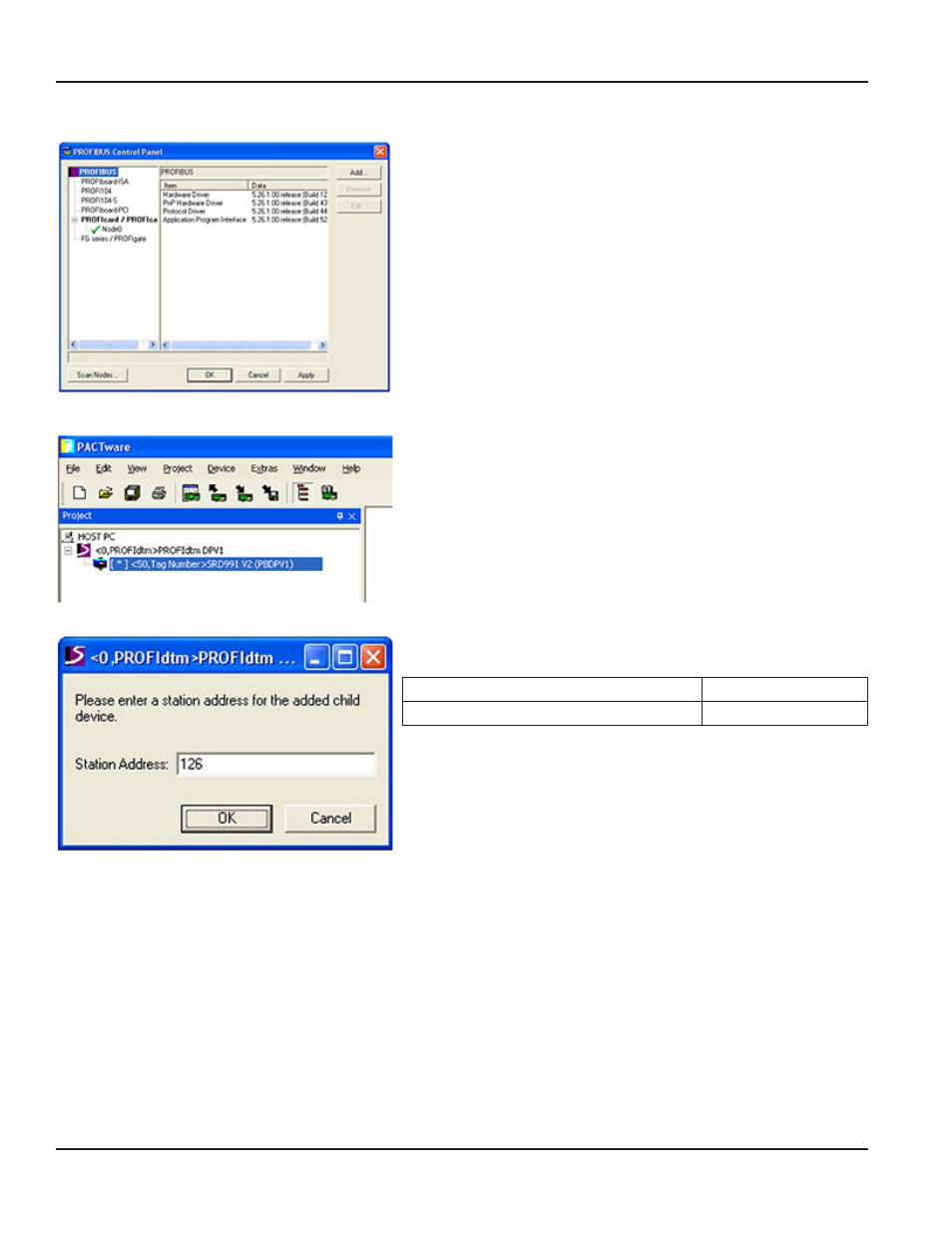

The Profibus Control panel is under Start > Control Panel > PROFIBUS .
Make sure that you see a green √ in front of the Node . If you see
something other than that, such as a red x, the PROFIcard is not active .
Contact Softing for assistance .
SRD-DTM
Connect the SRD-DTM for Profibus as shown below and described
in “Opening a Project” on page 13 .
After selecting the device driver from the device catalog, a window
automatically opens for editing the bus address for this specific unit .
The default slave address is 126 .
The following addresses are reserved for the Master or default:
0, 1 and 126 .
After selecting the bus address, each line will show the address for the
Master and Slave first . See the following example:
<0, PROFIdtm>PROFIdtm DPV1 (0: Node 0)
<50, Tag Number> SRD991 V2 (PBDPV1) (50: Bus Address)
Profibus Configurations
