STARTUP
The Startup menu includes the functions Autostart and Endpoints . The Autostart function allows a full adaptation of the
positioner to the actuator . The Endpoints function only does a determination of the mechanical stops and the IP parameters .
Mounting Configuration
Configure the mounting = Valve Stem Movement
The Mounting configuration field is used to define the Valve stem movement from the following options:
• Linear, left mounted (globe valve, positioner spindle to the left of the valve stem)
• Linear, right mounted (globe valve, positioner spindle to the right of the valve stem)
• Rotary, CCW (quarter turn, counter-clockwise to open)
• Rotary, CW (quarter turn, clockwise to open)
NOTE: N If the type field above shows a globe valve, this field defaults to Linear, left mounted .
A rotary valve in the type field will yield Rotary, CCW as the default . This feature is also available in the push button menu of
the positioner’s PCB .

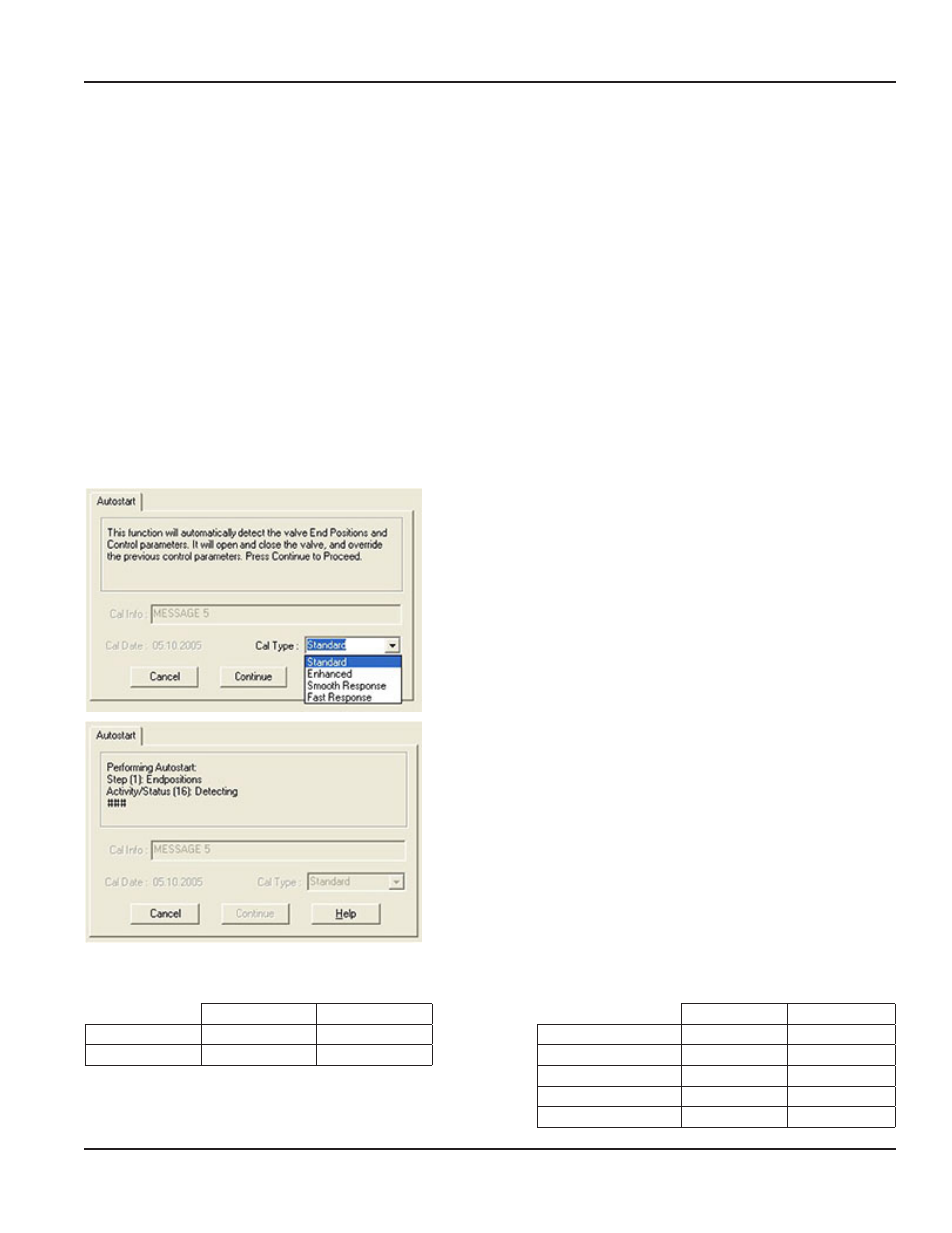

Autostart
1 . Select the designated calibration type (Cal Type) .
2 . Click Continue .
The status for each step of the Autostart displays .
Autostart Methods Before HW-Rev. 3.4 Autostart Methods for HW-Rev. 3.4 and Later
Two methods can be selected via the software . Five methods can be selected via the software .
SRD-DTM Local SRD-DTM Local
Full √ 2 .1 Endpoints √ 2 .1
Endpoints √ 2 .2 Standard Autostart √ 2 .2
Enhanced Autostart √ 2 .3
Smooth Response √ 2 .4
Fast Response √ 2.5
