Pressure Sensors
Air Supply Pressure Sensor Units

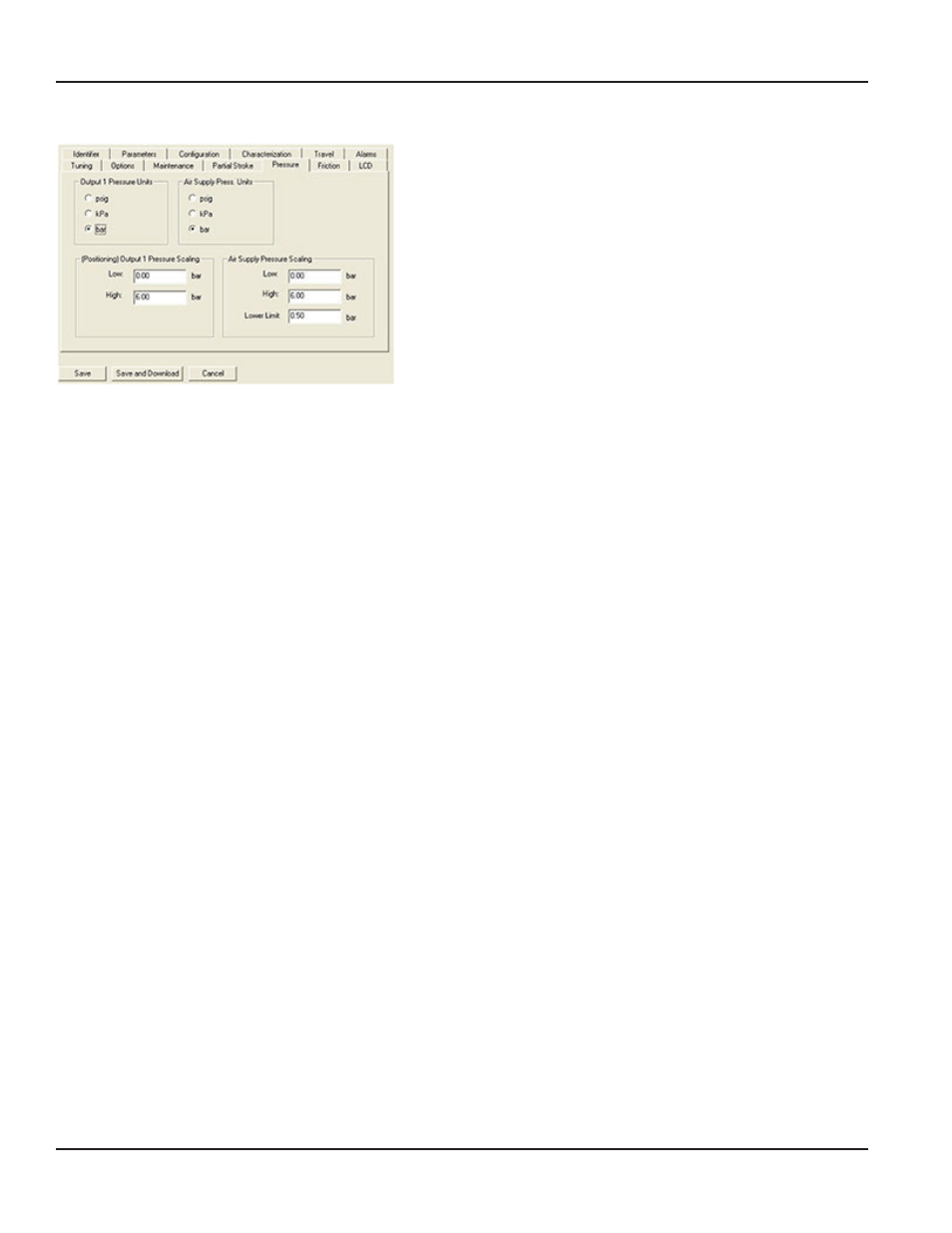

The air supply pressure sensor measures magnitude of the air supply
pressure in the positioner . This field indicates the units of measure for
the air supply pressure . Values expressed are in gauge, not absolute .
Choices are:
• psig – Pounds Per Square Inch (Gauge) .
• kPa – Kilopascals (Pascal is Newton per square metre) .
• bar (default)
Following conversions exist between these units:
• 1 bar = 100,000 Pa
• 1 bar = 14 .5 psig
Output Pressure Sensor Units
The output pressure sensor measures magnitude of the air pressure in the actuator .
This field indicates the units of measure for the output pressure . Values expressed are in gauge, not absolute . Choices are:
• psig – Pounds Per Square Inch (Gauge) .
• kPa – Kilopascals (Pascal is Newton per square metre) .
• bar (default)
Configuration / Parameter
