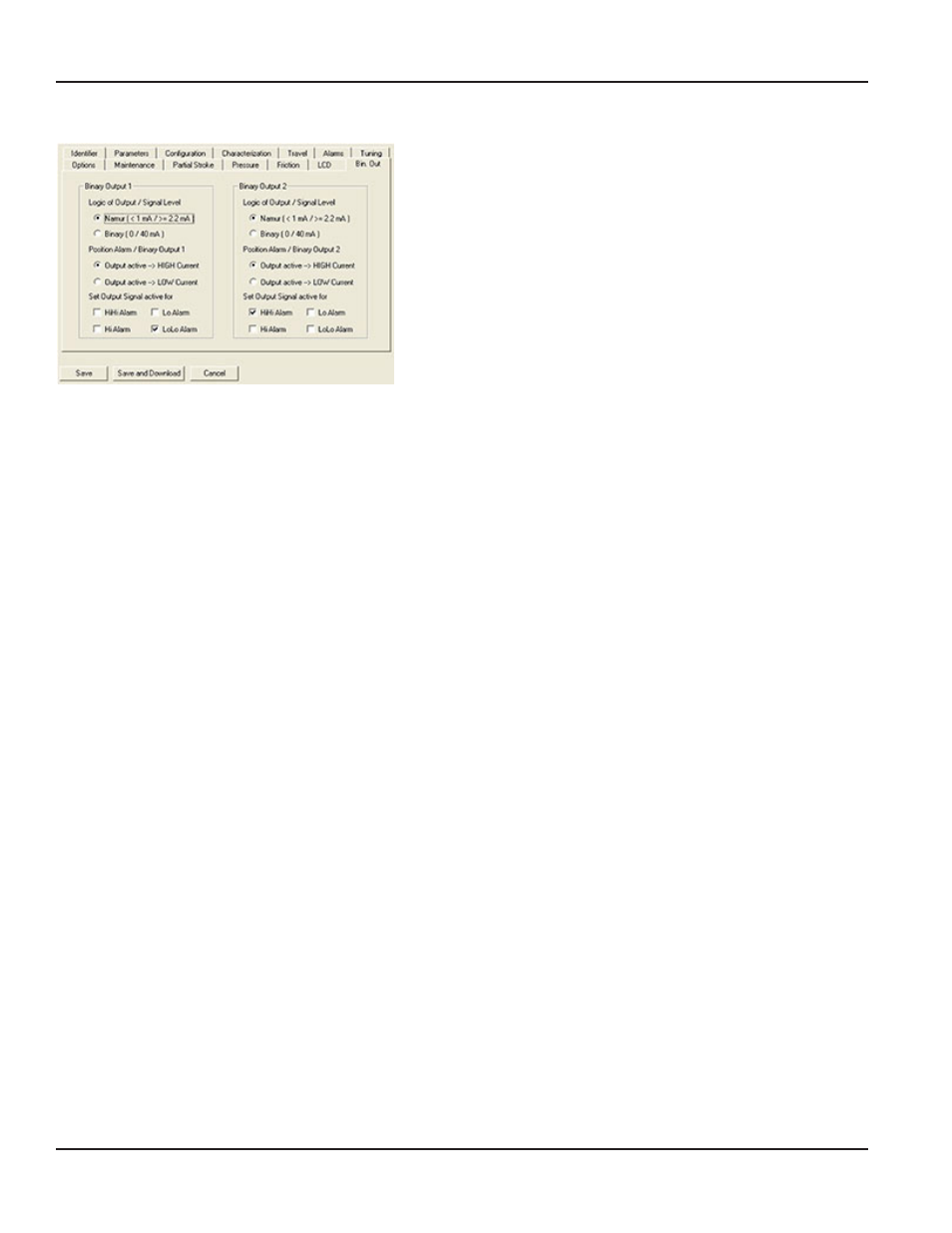

Binary Output
The Binary Output function allows configuring the Logic of Output /
Signal-Level, the Position Alarm / Alarm Output -Level of the alarm and
selecting the Output Signal to be activated .
Logic of Output / Signal-Level
It can be selected if the signal level of the output shall be according to Namur (<1 mA / > 2 .2 mA) or Binary (0 / 40 mA) . Click
one box to select .
Position Alarm / Alarm Output
In the event that an alarm has been activated, the signal can be configured that the value shows a HIGH Current or a LOW
Current . Click one box to select .
The Signal Output for the Binary Output can be configured for the following cases:
• HiHi Alarm
• Hi Alarm
• LoLo Alarm
• Lo Alarm
Click one box to select .
Configuration / Parameter
