6
EX
T
I/O
FUSE
3A
AC85～264V
32C

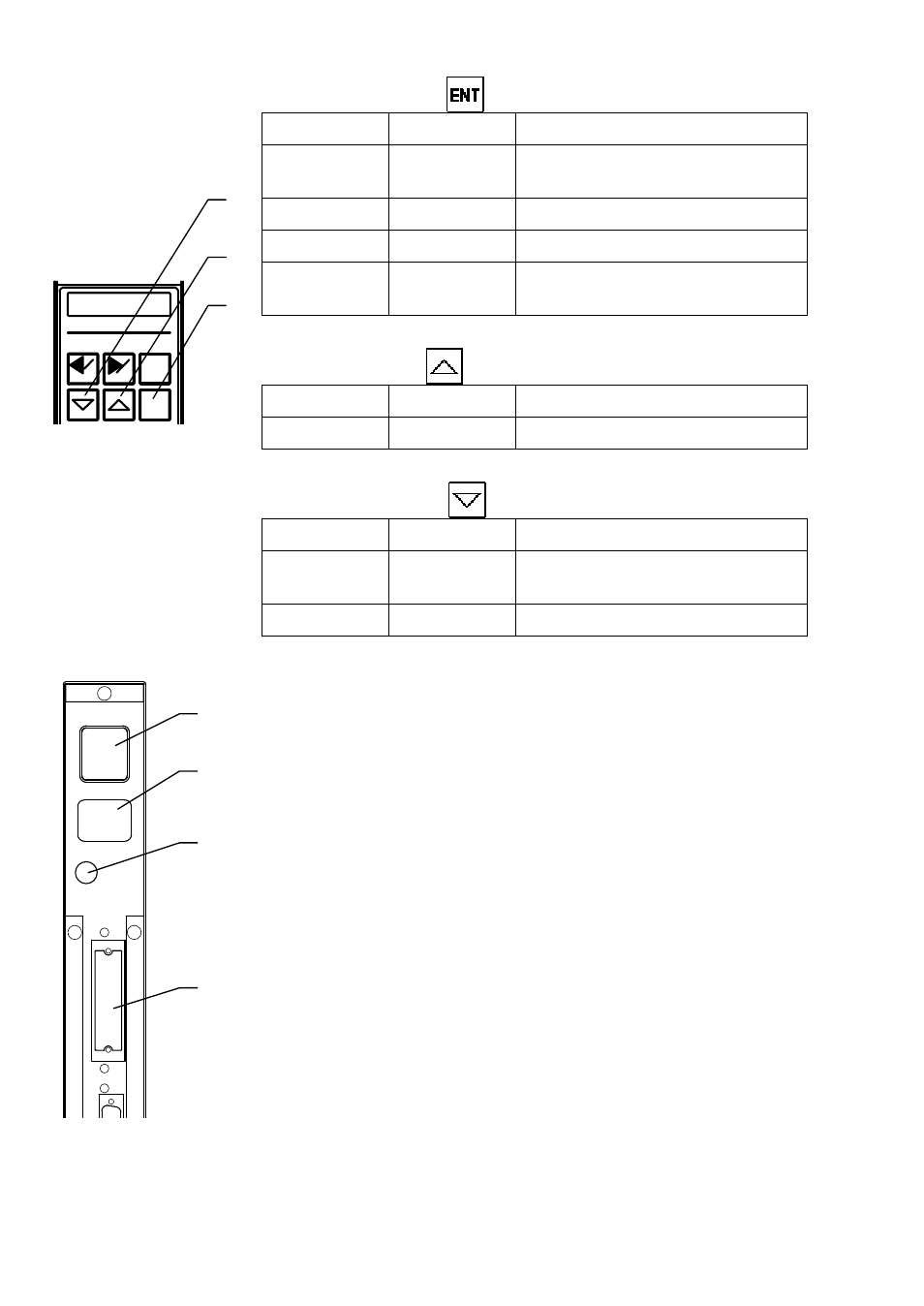

’ ENT (enter) key
Mode Keying Condition
Measure Press once. Measured value is held (when
mastering result is OK).
Set Press once. Set item and value are determined.
Master Press once. Master measured value is read.
Adjust
detector Press once. Detector adjustment is finished.
“ Up arrow key
Mode Keying Condition
Set Press once. Set value is entered.
” Down arrow key
Mode Keying Condition
Measure Press 2 sec. Mode is changed to change
program mode.
Set Press once. Set value is entered.
(10) Power connector (input) and power switch
Input AC power. Usable in the range of 85 to 264 VAC. Use
the accessory power cable in the range of 85 to 125 VAC.
(11) Power connector (output)
Accepts the power connector (input) of an adjacent instrument to
be used in combination, and is internally connected to the power
connector (input).
(12) Fuse holder
A glass tube fuse ( φ5.2 × 20, 3 A) is used.
(13) DC input/output connector (option)
Connector to be connected to an LED or sequencer, and used
for input of measure, mastering and other commands and for
output of judgment result and BCD.
ENT
RST
SET MAS
”
“
’
(10)
(11)
(12)
(13)
