(7) Setting minimum master value
 With “MIN M.” shown on the alphanumeric display, press . The current
minimum master value is shown. Press or to enter the new minimum
master value.

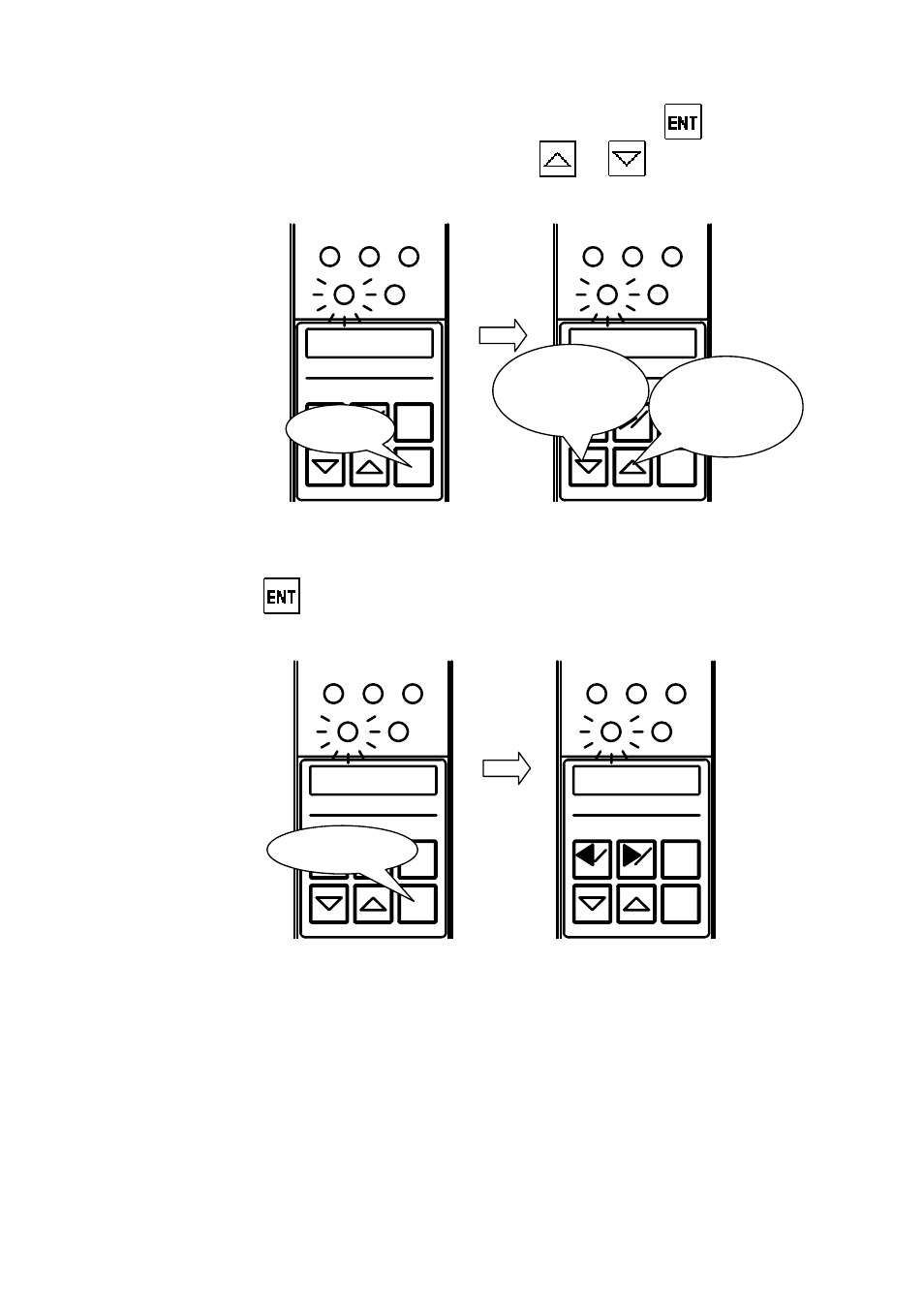

Fig. 9-15. Entering minimum master value.
 Press to determine the new minimum master value. The next step is
storing the set values, and “END” is shown on the alphanumeric display.
Fig. 9-16. Determining minimum master value.
‘ When the minimum master value is equal to or greater than the maximum master
value, “ERR MAS” is shown on the alphanumeric display, the set value returns to
the previous value, and the instrument returns to the condition in step  above.
Again enter the new minimum master value.
2 1 3
S E T MAS
ENT
RST
SET MAS
MIN M.
Press
2 1 3
S E T MAS
ENT
RST
SET MAS
9.005
Decrements
minimum
master value
Increments
minimum
master value
2 1 3
S E T MAS
ENT
RST
SET MAS
9.025
Determines
2 1 3
S E T MAS
ENT
RST
SET MAS
END
