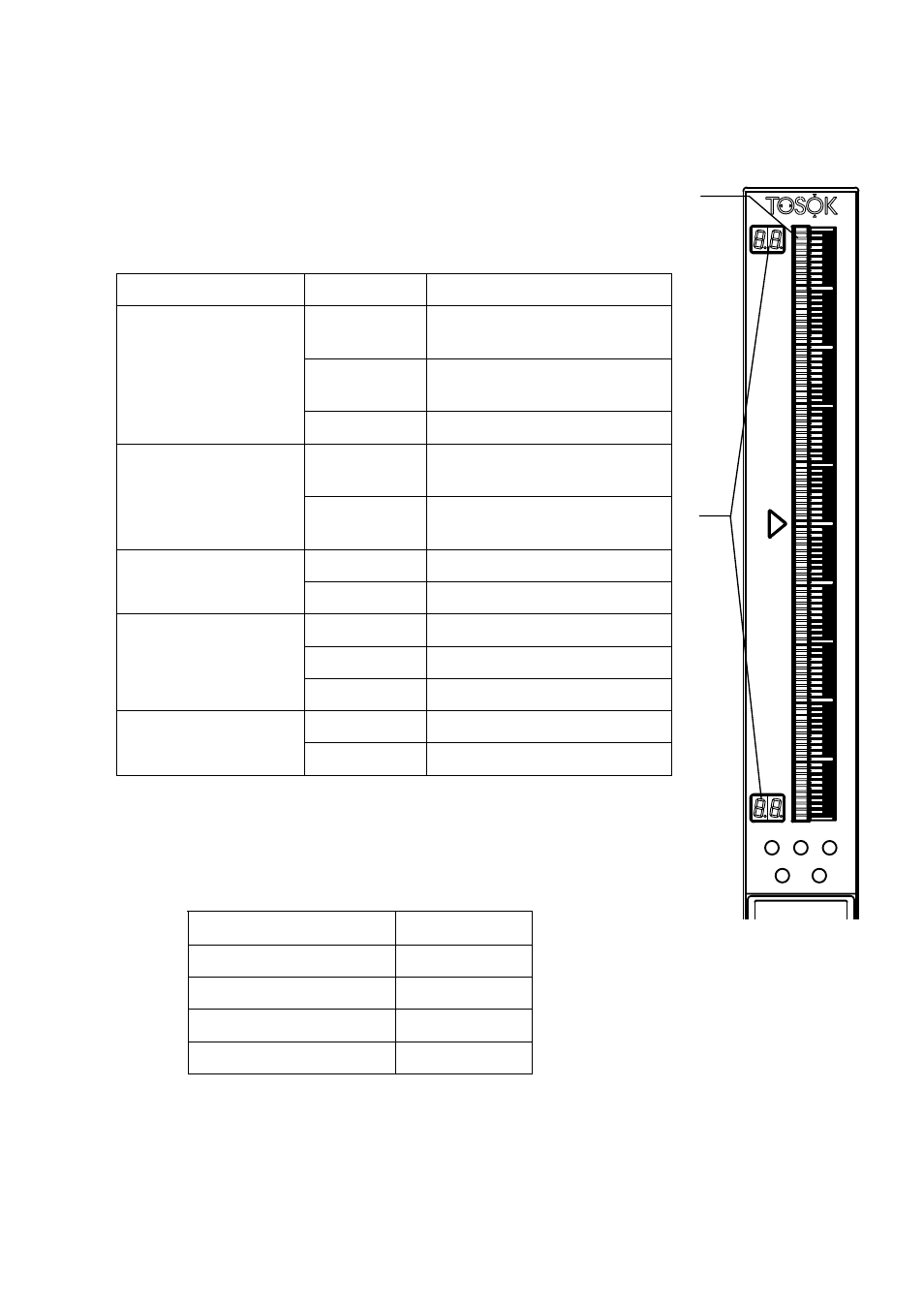

4. Names and Functions of Controls and Parts
(1) Bargraph display
Indicates the measured value, judgment result, or other
types of information by a 101-dot, 3-color bar.
Table 4-1. Relationship between bar color and display description in
each mode.
Mode Bar color Display description
Green (light) Measured value (judgment
result OK)
Red (light) Measured value (judgment
result NG)
Measure
Orange (dot) Upper or lower limit value
Green (dark) Measured value (judgment
result OK) Hold measured value
Red (dark) Measured value (judgment
result NG)
Orange (light) Current set value Set
Green (dot) Previous set value
Green (light) Mastering enabled condition
Red (light) Mastering disabled condition
Master
Orange (dot) Mastering data
Orange (light) Measured value Adjust detector
Green (dot) Mastering data
(2) Range displays
Indicate the bar top and bottom dimensions in two digits.
Table 4-2. Range displays.
Measuring range ( µm) Digital display
20 10.
50 25.
100 50.
200 10
2 1 3
S E T M A S
(1)
(2)
