23
(5) Setting judgment lower limit value
 With “MIN” shown on the alphanumeric display, press . The current
judgment lower limit value is shown. Press or to enter the new
judgment lower limit value.

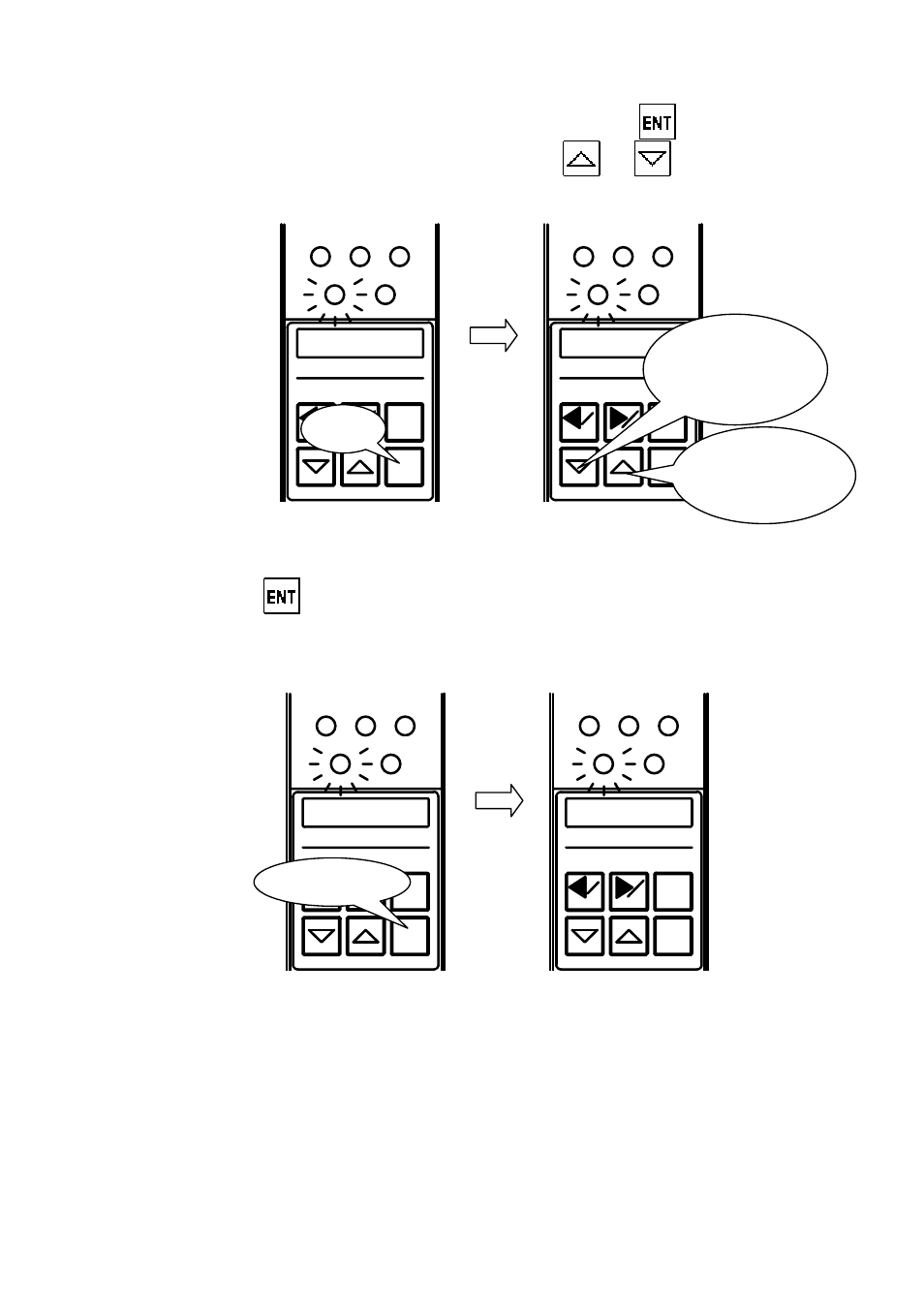

Fig. 9-11. Entering judgment lower limit value.
 Press to determine the new judgment lower limit value. The next step is
setting the maximum master value, and “MAX M.” is shown on the alphanumeric
display.
Fig. 9-12. Determining judgment lower limit value.
2 1 3
S E T MAS
ENT
RST
SET MAS
MIN
Press
2 1 3
S E T MAS
ENT
RST
SET MAS
9.005 Decrements
judgment lower
limit value
Increments
judgment lower
limit value
2 1 3
S E T MAS
ENT
RST
SET MAS
9.025
Determines
2 1 3
S E T MAS
ENT
RST
SET MAS
MAX M.
