10
6. Measurement
6.1 Preparation
 Attach the regulator to the rear of the instrument, and connect it with the air filter.
 Connect the measuring nozzle hose to the front of the instrument, and connect the
accessory power cable to the rear of the instrument.
‘ Turn on the power switch (or press the position marked I of the switch) at the rear of
the instrument, so that the power of 85 to 264 VAC (50/60 Hz) will be supplied to the
instrument. Supply air at 0.3 to 0.7 MPa to the air filter.
’ When the instrument is started, it is in the measure mode. Press for 2 sec to
change to the master mode, for 2 sec to change to the set mode, and for 2
sec to change to the change program mode.
6.2 Measuring
 Bargraph display, and item and judgment LEDs
(1) The judgment upper and lower limit values are indicated by orange (dark) on the
bargraph display.
(2) The bargraph display is illuminated green (light) and red (light) when the judgment
result is OK and NG, respectively.
(3) The item and judgment LEDs 1, 2 and 3 come on red, green and red when the
measured value is –NG, OK and +NG, respectively.

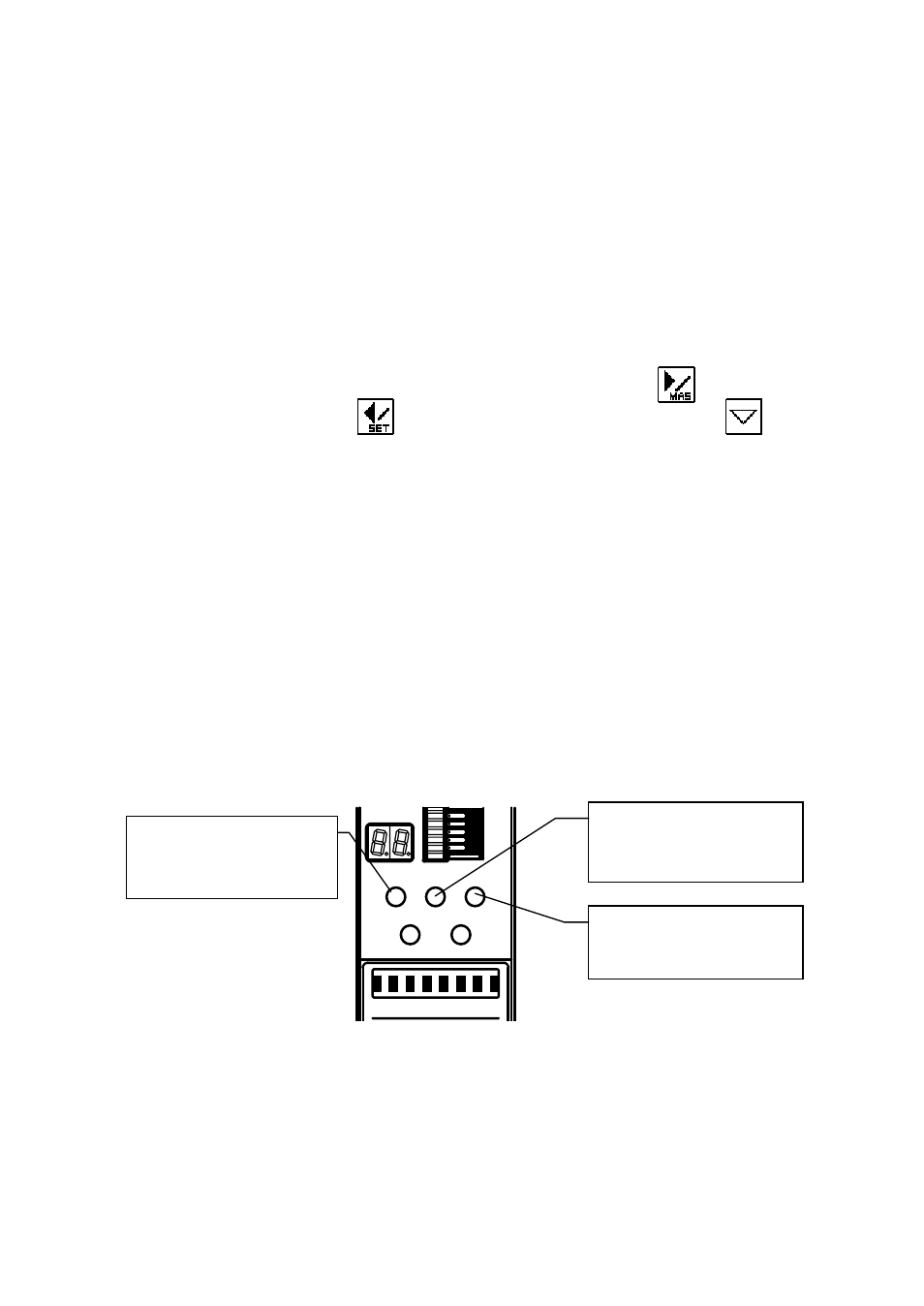

Fig. 6-1. Item and judgment LEDs during measurement.
2 1 3
S E T M A S
Comes on green when
measured value is OK
Comes on red when
measured value is +NG
Comes on red when
measured value is –NG
