39
11.2 External input
(1) Description
Using external buttons and a foot switch, the instrument can:
 Measure a work.
 Reset itself.
‘ Be calibrated with the minimum master.
’ Be calibrated with the maximum master.
Note: Do not use the instrument through relay contact input.
(2) Preparation
The SW. ETC connector at the rear of the instrument is provided for external buttons.
It accepts a D-sub 15-pin (male) plug.
(3) Connector pin arrangement

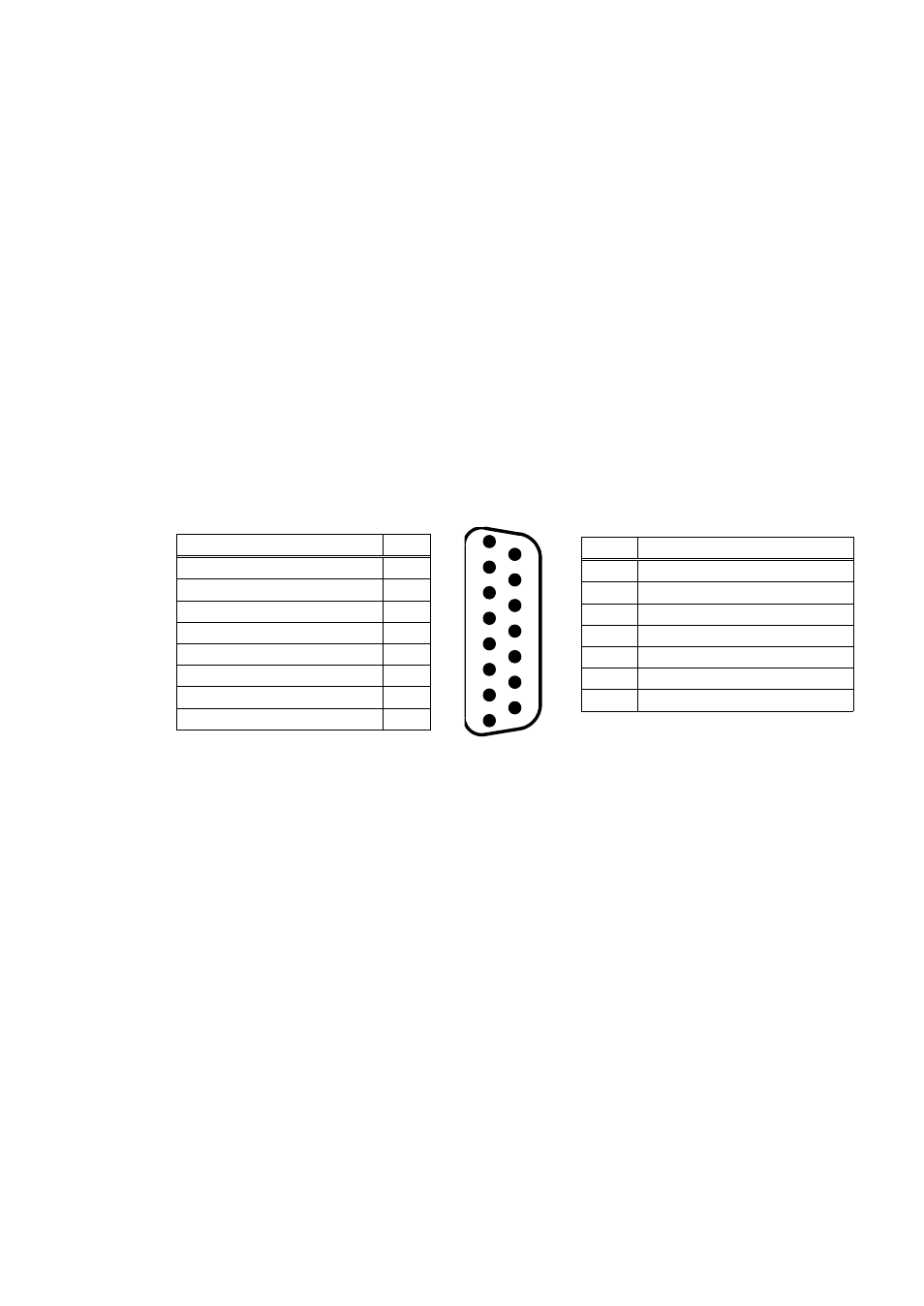

Fig. 11-1. Pin arrangement diagram of SW. ETC connector at rear of instrument.
(4) Operation with external buttons
 Measure button
(a) In the measure mode, press the measure button.
(b) The measured value is held. (This is called the hold measured value
condition.)
Note: The measured value cannot be held when the mastering result is NG.
 RESET button
Clears the measured value hold.
Description No.
1
2
3
4
5
GND 6
Measure button 7
RESET button 8
No. Description
9 Maximum master button
10 Minimum master button
11
12
13
14
15
