(6) Setting maximum master value
 With “MAX M.” shown on the alphanumeric display, press . The current
maximum master value is shown. Press or to enter the new
maximum master value.

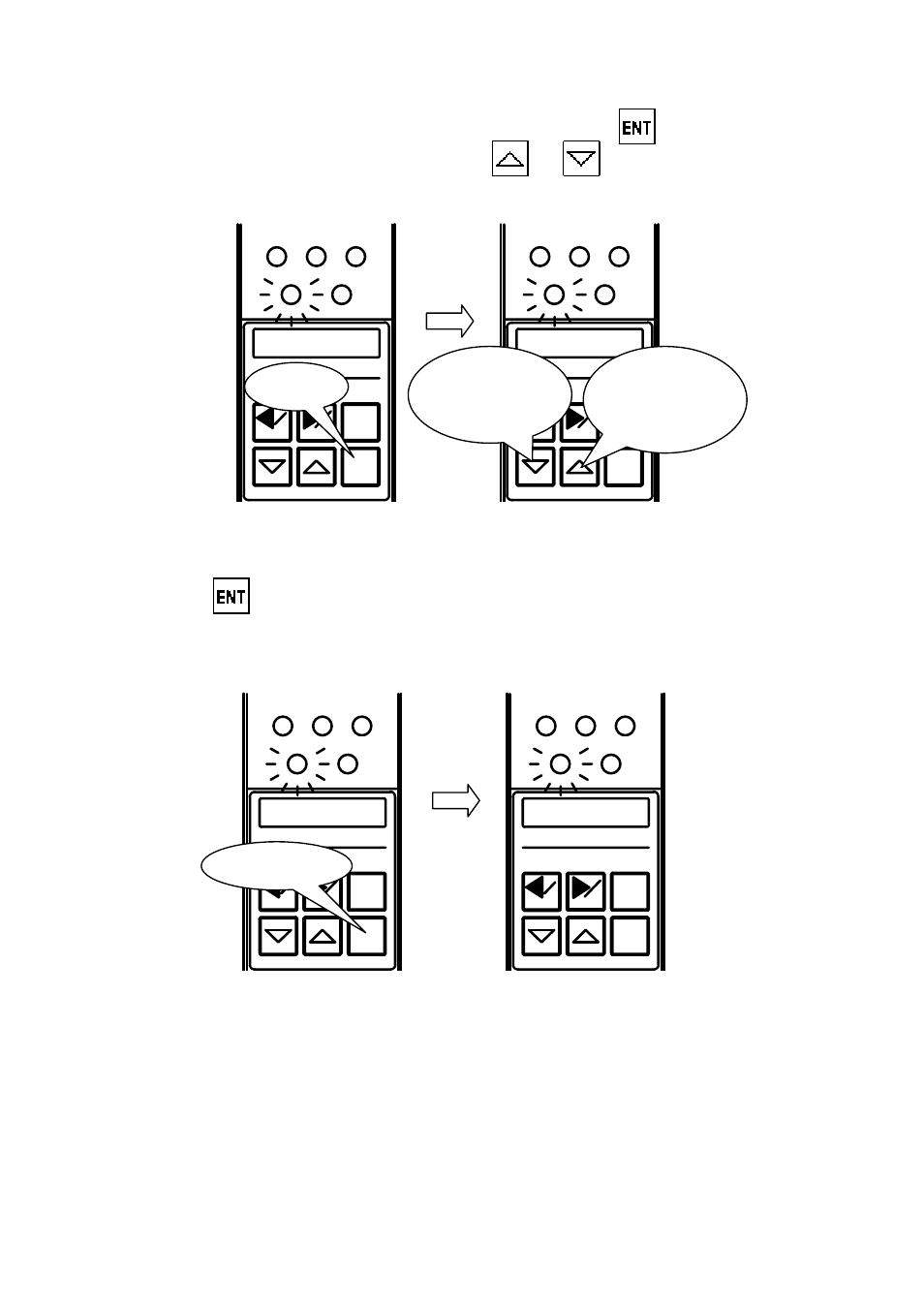

Fig. 9-13. Entering maximum master value.
 Press to determine the new maximum master value. The next step is
setting the minimum master value, and “MIN M.” is shown on the alphanumeric
display.
Fig. 9-14. Determining maximum master value.
‘ When the maximum master value is equal to or smaller than the minimum master
value, “ERR MAS” is shown on the alphanumeric display, the set value returns to
the previous value, and the instrument returns to the condition in step  above.
Again enter the new maximum master value.
2 1 3
S E T MAS
ENT
RST
SET MAS
MAX M.
2 1 3
S E T MAS
ENT
RST
SET MAS
9.085
Press
Decrements
maximum
master value Increments
maximum
master value
2 1 3
S E T MAS
ENT
RST
SET MAS
9.065
2 1 3
S E T MAS
ENT
RST
SET MAS
MIN M.
Determines
