SHIMPO CAG-2000 1 Channel User Manual
Page 6

4

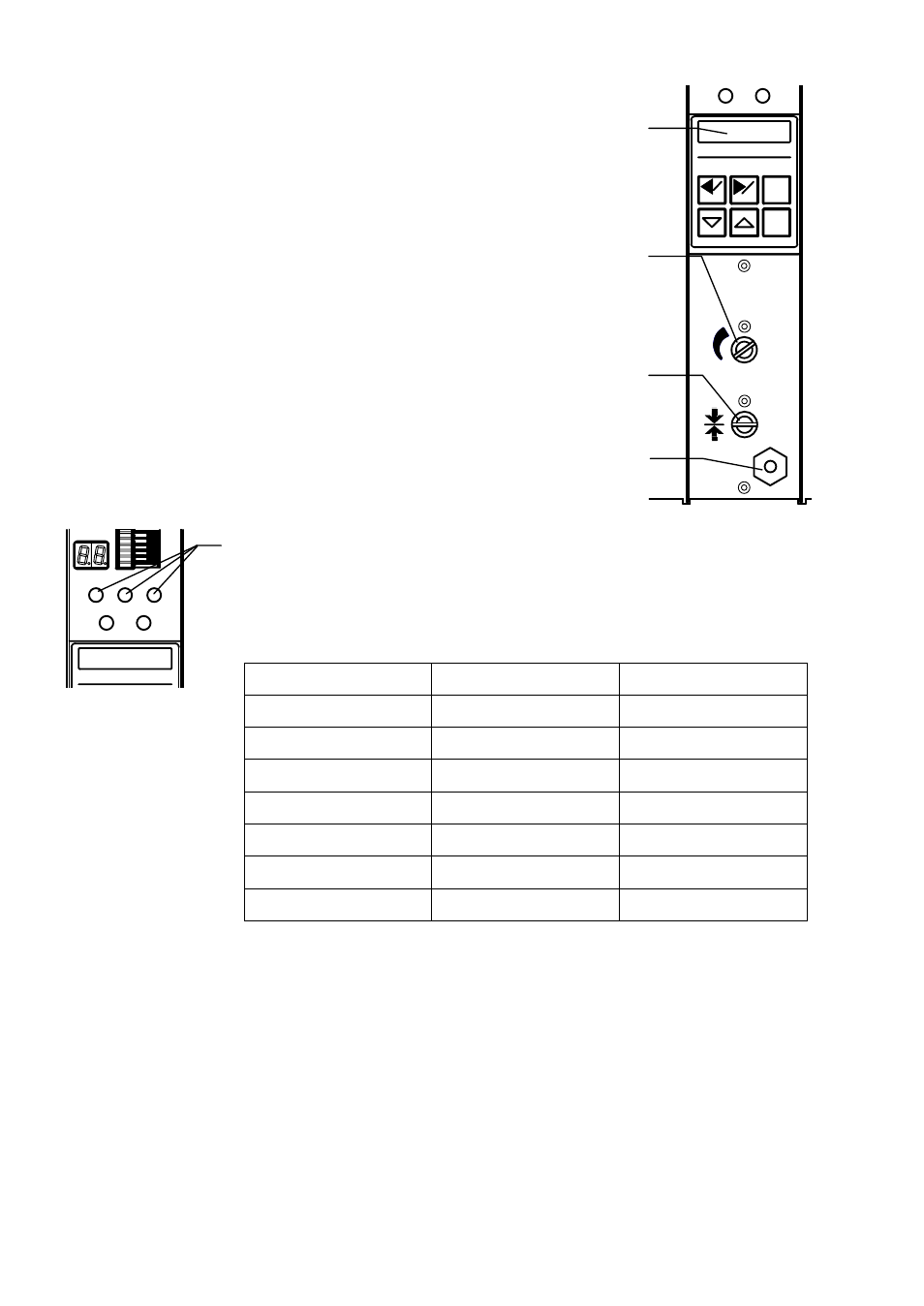

(3) Alphanumeric display
Indicates the measured value, set value, set item, or other
types of information by 8-digit 7
× 5 dot characters.
(4) Sensitivity adjustment knob
Adjusts the sensitivity of the air circuit. This adjustment is
necessary only for changing the measuring nozzle and
correcting a mastering error.
(5) Zero adjustment knob
Adjusts the zero position of the air circuit. This adjustment
is necessary only for changing the measuring nozzle and
correcting a mastering error.
(6) Measuring nozzle port
Accepts the vinyl hose of the measuring nozzle.
(7) Item and judgment LEDs
Indicate the judgment result. LED 1 comes on red when the
measured value is –NG, LED 2 comes on green when the
measured value is OK, and LED 3 comes on red when the
measured value is +NG.
Table 4-3. LED colors and conditions indicated.
Color
Condition
Mode
LED 1: Red (light)
Judgment result –NG Measure
LED 2: Green (light)
Judgment result OK
Measure
LED 3: Red (light)
Judgment result +NG Measure
LED 1: Red (dark)
Judgment result –NG Hold measured value
LED 2: Green (dark)
Judgment result OK
Hold measured value
LED 3: Red (dark)
Judgment result +NG Hold measured value
LED 1: Orange (light) Mastering
Master
ZERO
MAG
GAGE
S ET
M AS
ENT
RST
SET
MAS
C A G
2 0 0 0
(3)
(4)
(5)
(6)
2
1
3
SE T
M A S
(7)
