Mas ok – SHIMPO CAG-2000 1 Channel User Manual

Page 15

Set the maximum master in the measuring nozzle, and press . The instrument

is calibrated with the maximum master. If there is no mastering error, “MAS OK” is

shown for 2 sec on the alphanumeric display, and the instrument ends the master

mode and returns to the measure mode.

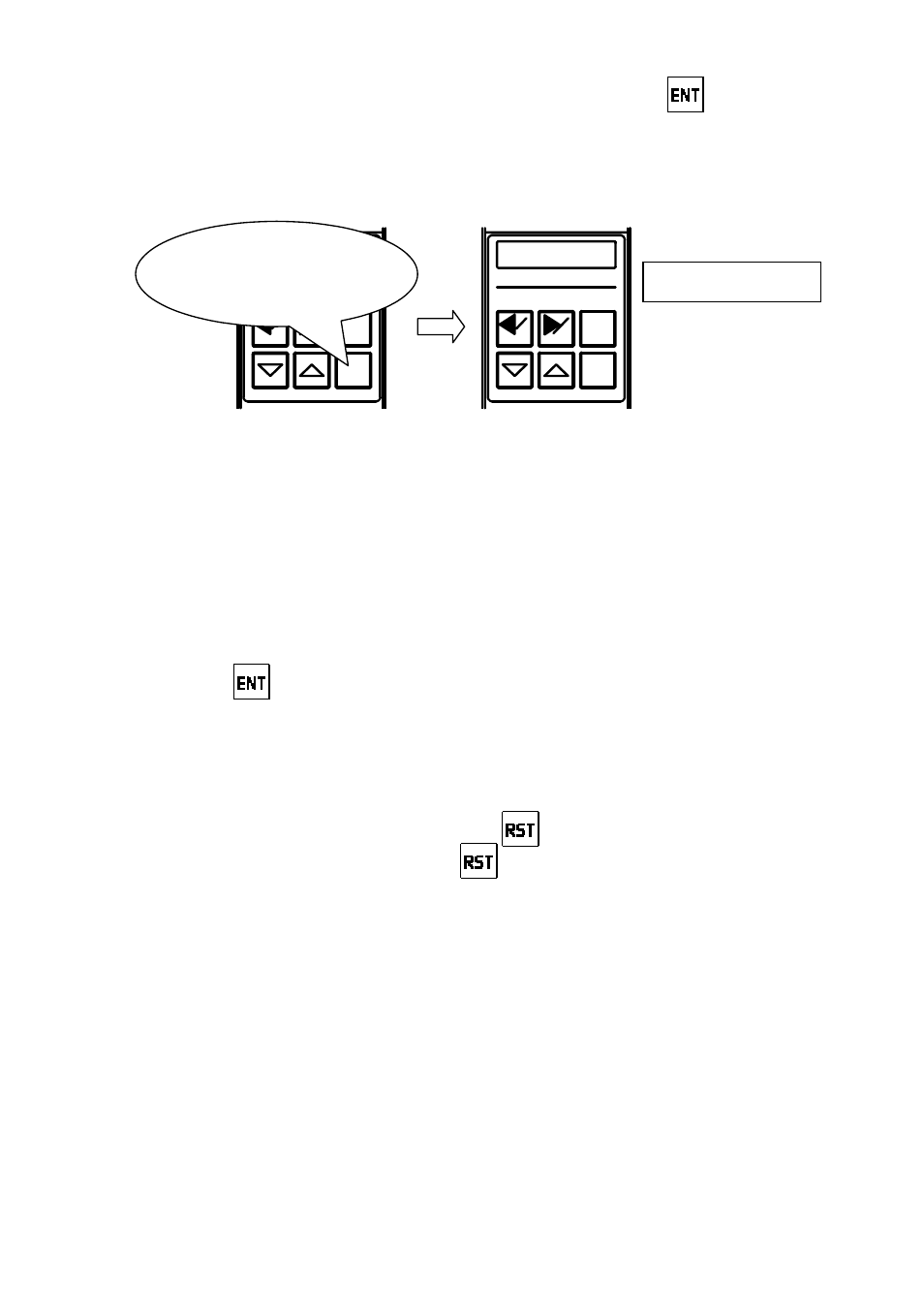

Fig. 7-3. Ending mastering.

If there is a mastering error, its description is shown on the alphanumeric display as

follows:

ERR ZERO: Zero position error (outside of automatic mastering range)

ERR MAG: Sensitivity error (outside of automatic mastering range)

ERR REV: Maximum and minimum master values reversed

ERR OFFR: Outside of measuring range

Press to return to step above. If it is necessary to adjust the zero position

and sensitivity of the air circuit with the zero and sensitivity adjustment knobs,

respectively, refer to “10. Adjusting Zero Position and Sensitivity with Zero and

Sensitivity Adjustment Knobs”.

In the middle of the master mode, press to return to the previous condition.

When “MIN M.” is displayed, press to return to the measure mode.

Mastering data storing function

The instrument is designed to read the last mastering data and fall in the master request

condition.

(1) Master request condition

When the power of the instrument is turned on or when a program change is made,

the instrument operates as follows:

ENT

RST

SET

MAS

Mastering finished

ENT

RST

SET

MAS

Set maximum master in
measuring nozzle, and
press this

MAS OK
