21
 When the tolerance notation is selected, press or to enter the shift
value. When the nominal notation is selected, press or to change
the digit to be set, and press or to enter the shift value. Usually,
enter the median value of the tolerances as the shift value.

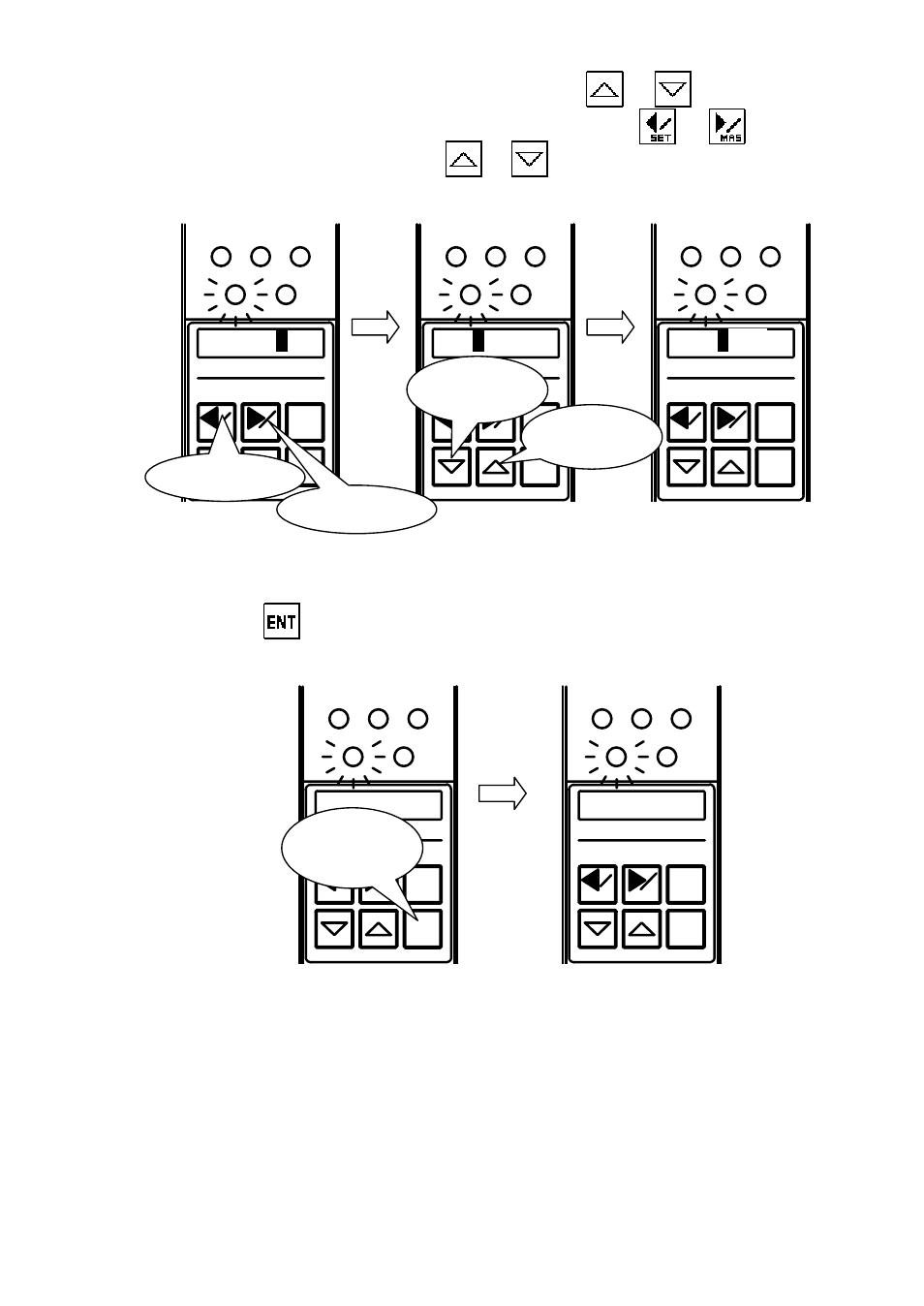

Fig. 9-7. Entering shift value (for nominal notation).
‘ Press to determine the entered shift value. The next step is setting the
judgment upper limit value, and “MAX” is shown on the alphanumeric display.
Fig. 9-8. Determining shift value.
2 1 3
S E T MAS
ENT
RST
SET MAS
2 .000
2 1 3
S E T MAS
ENT
RST
SET MAS
0.00 0
Changes digit
2 1 3
S E T MAS
ENT
RST
SET MAS
0 .000
Enters shift
value
Enters shift
value
Changes digit
2 1 3
S E T MAS
ENT
RST
SET MAS
9.045
Determines
shift value
2 1 3
S E T MAS
ENT
RST
SET MAS
MAX
