22

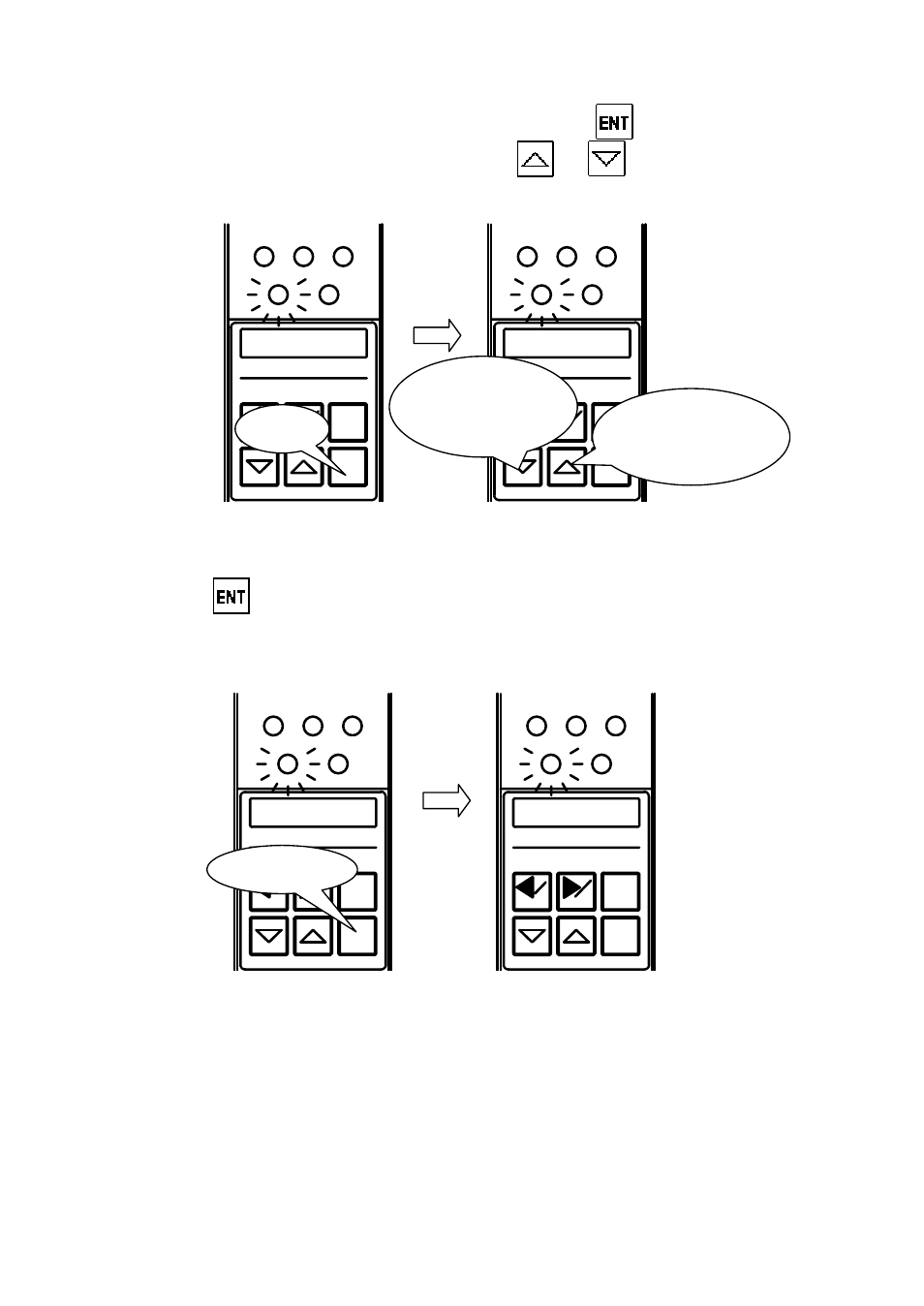

(4) Setting judgment upper limit value
 With “MAX” shown on the alphanumeric display, press . The current
judgment upper limit value is shown. Press or to enter the new
judgment upper limit value.
Fig. 9-9. Entering judgment upper limit value.
 Press to determine the new judgment upper limit value. The next step is
setting the judgment lower limit value, and “MIN” is shown on the alphanumeric
display.
Fig. 9-10. Determining judgment upper limit value.
2 1 3
S E T MAS
ENT
RST
SET MAS
MAX
Press
2 1 3
S E T MAS
ENT
RST
SET MAS
9.085
Decrements
judgment upper
limit value
Increments
judgment upper
limit value
2 1 3
S E T MAS
ENT
RST
SET MAS
9.065
Determines
2 1 3
S E T MAS
ENT
RST
SET MAS
MIN
