18
9. Setting
Setting relevant items is required for each program to be used. After a program change,
set necessary items. (Refer to “8. Changing Programs”.)
(1) Setting polarity
 In the measure mode, press for 2 sec or more. The SET LED below the
bargraph display comes on orange, “POL” appears on the alphanumeric display,
and the instrument changes to the set mode.

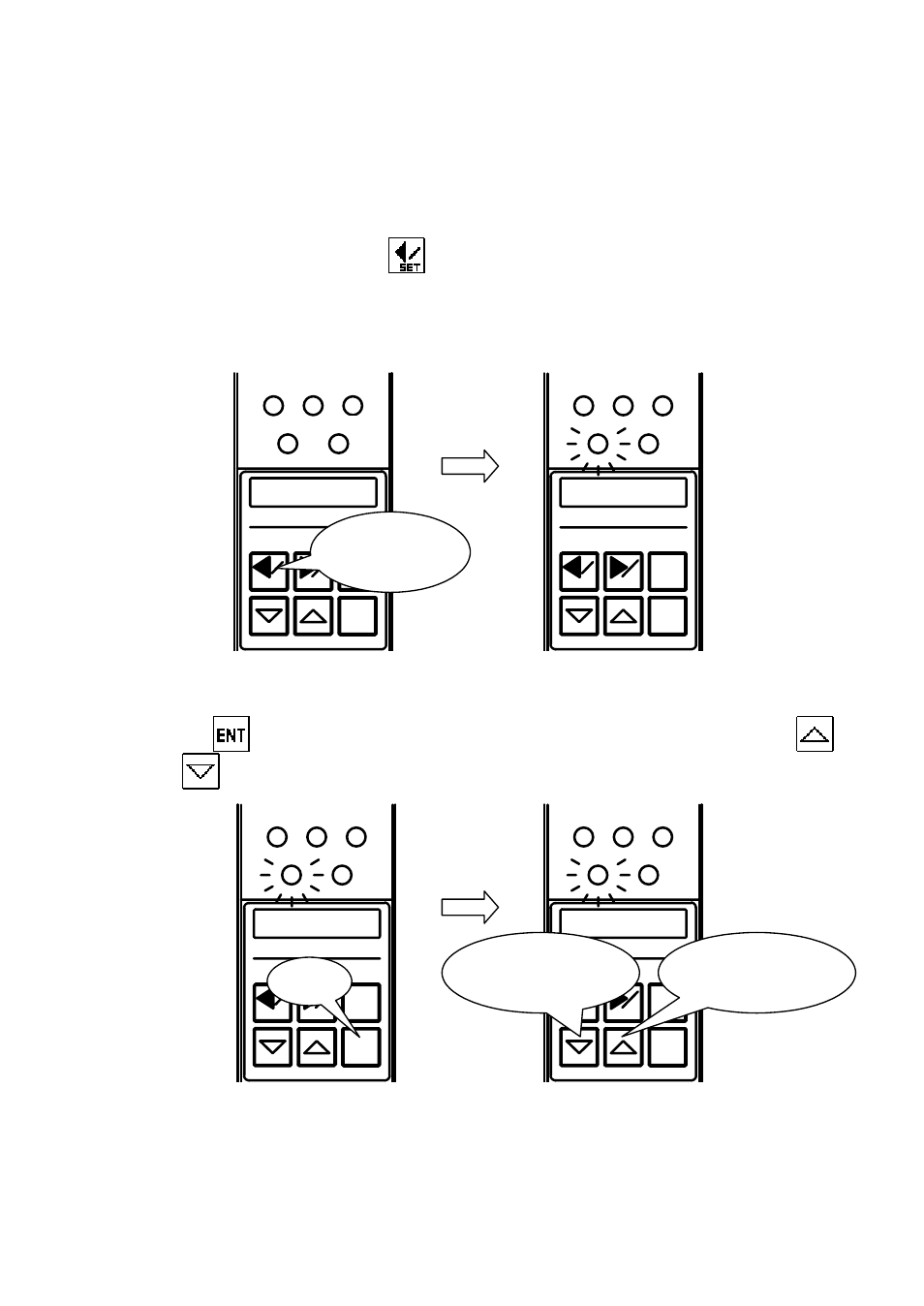

Fig. 9-1. Changing to set mode.
 Press to show the current polarity on the alphanumeric display, and press
or to change between “+ (ID measurement)” and “– (OD measurement)”.
Fig. 9-2. Changing polarity.
2 1 3
S E T MAS
ENT
RST
SET MAS
POL
2 1 3
S E T MAS
ENT
RST
SET MAS
+
Changes
between + and – Changes
between + and –
2 1 3
S E T MAS
ENT
RST
SET MAS
Press 2 sec
or more
10.0
2 1 3
S E T MAS
ENT
RST
SET MAS
POL
Measure mode Set mode
Press
